Engine Mechanical
>>
Engine Lubrication System
>>
System Description
>>
Description
>>
Engine Lubrication System Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

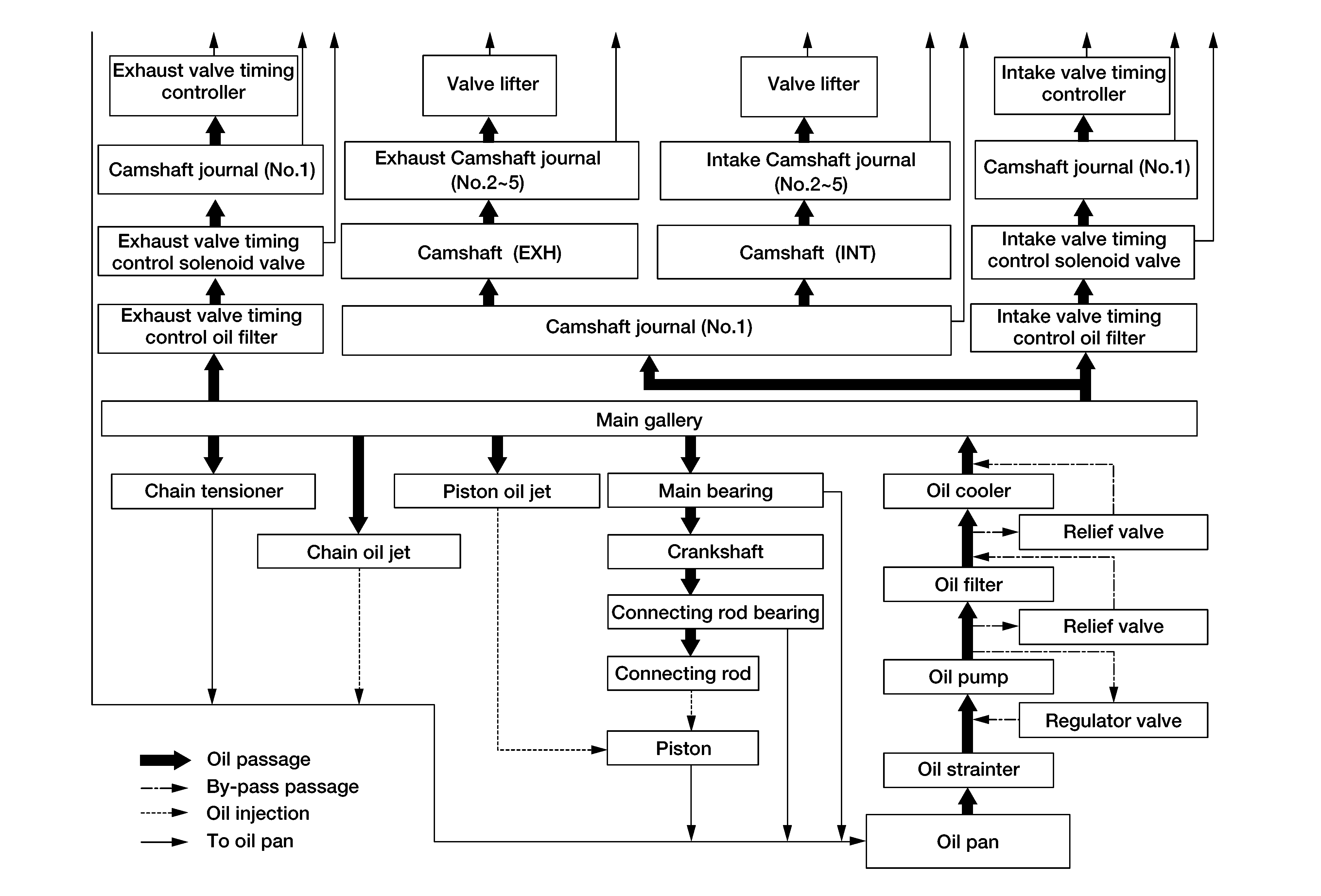

Engine Lubrication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
