WIRE TO WIRE Connector End View (M11)

Connector Color: WHITE

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	R	-
2	L	-

Harness Layout

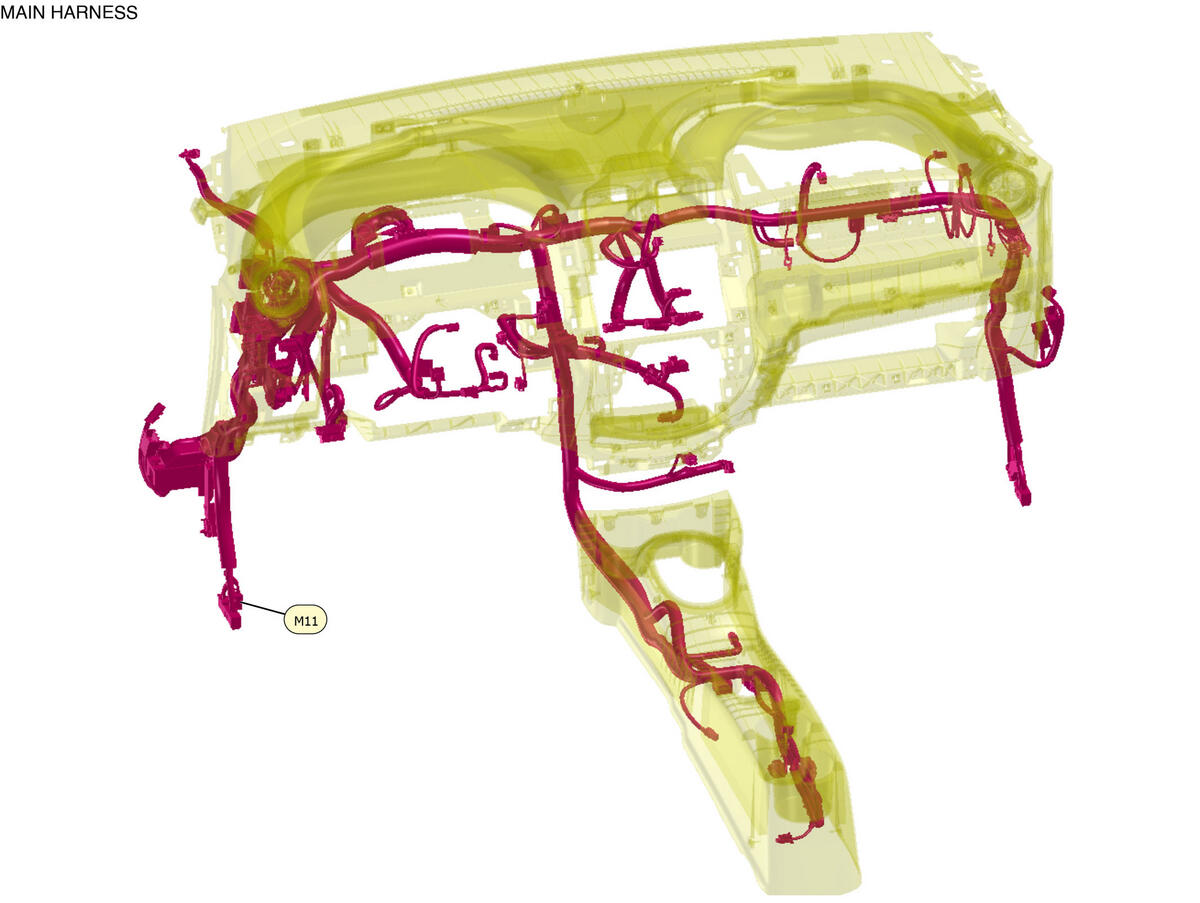

Fig 3: MAIN HARNESS

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: M02FW-LC
