Power Distribution System: Wiring Diagram

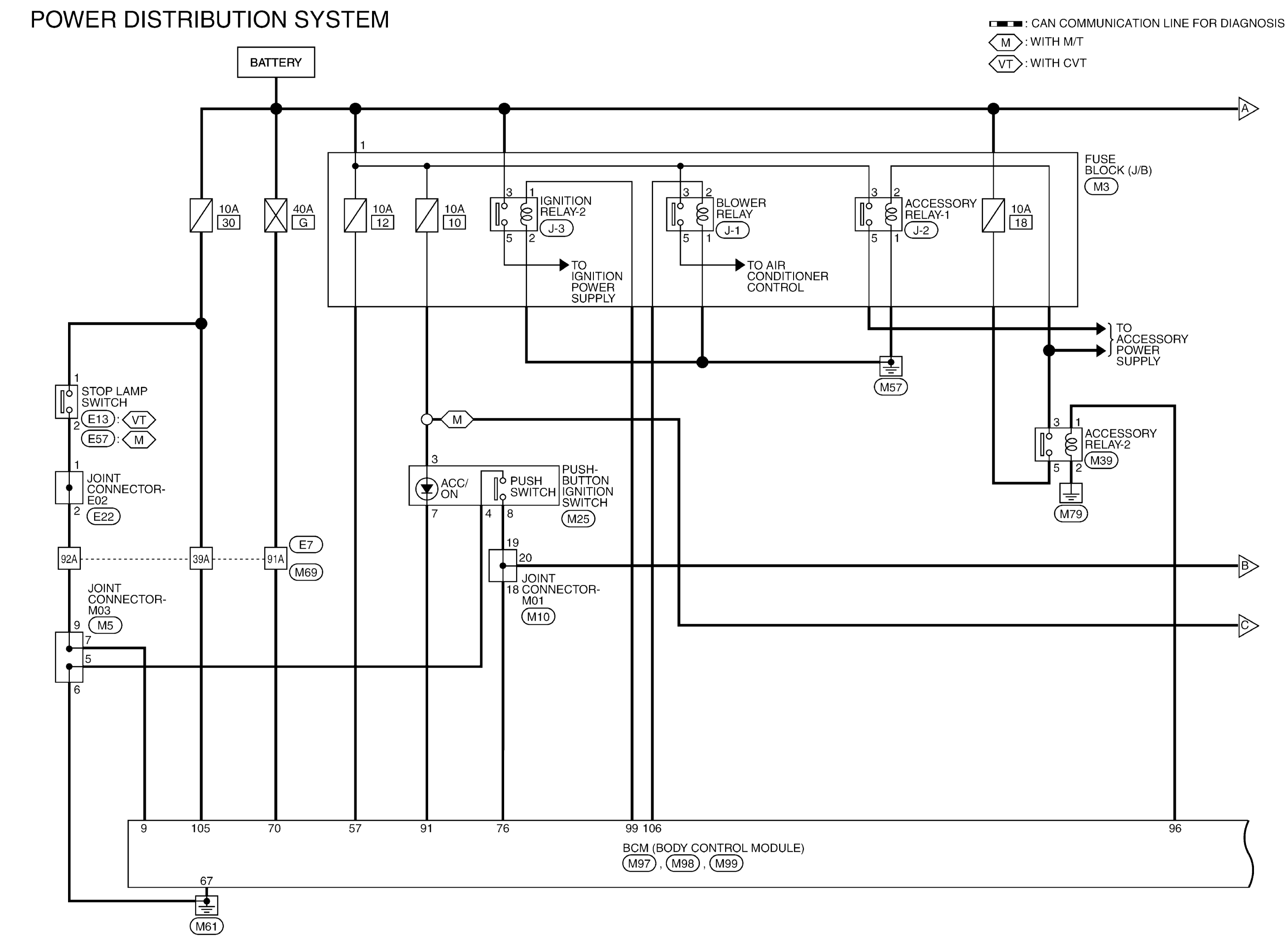

GNSABMWA4394GB-394

Courtesy of NISSAN NORTH AMERICA, INC.

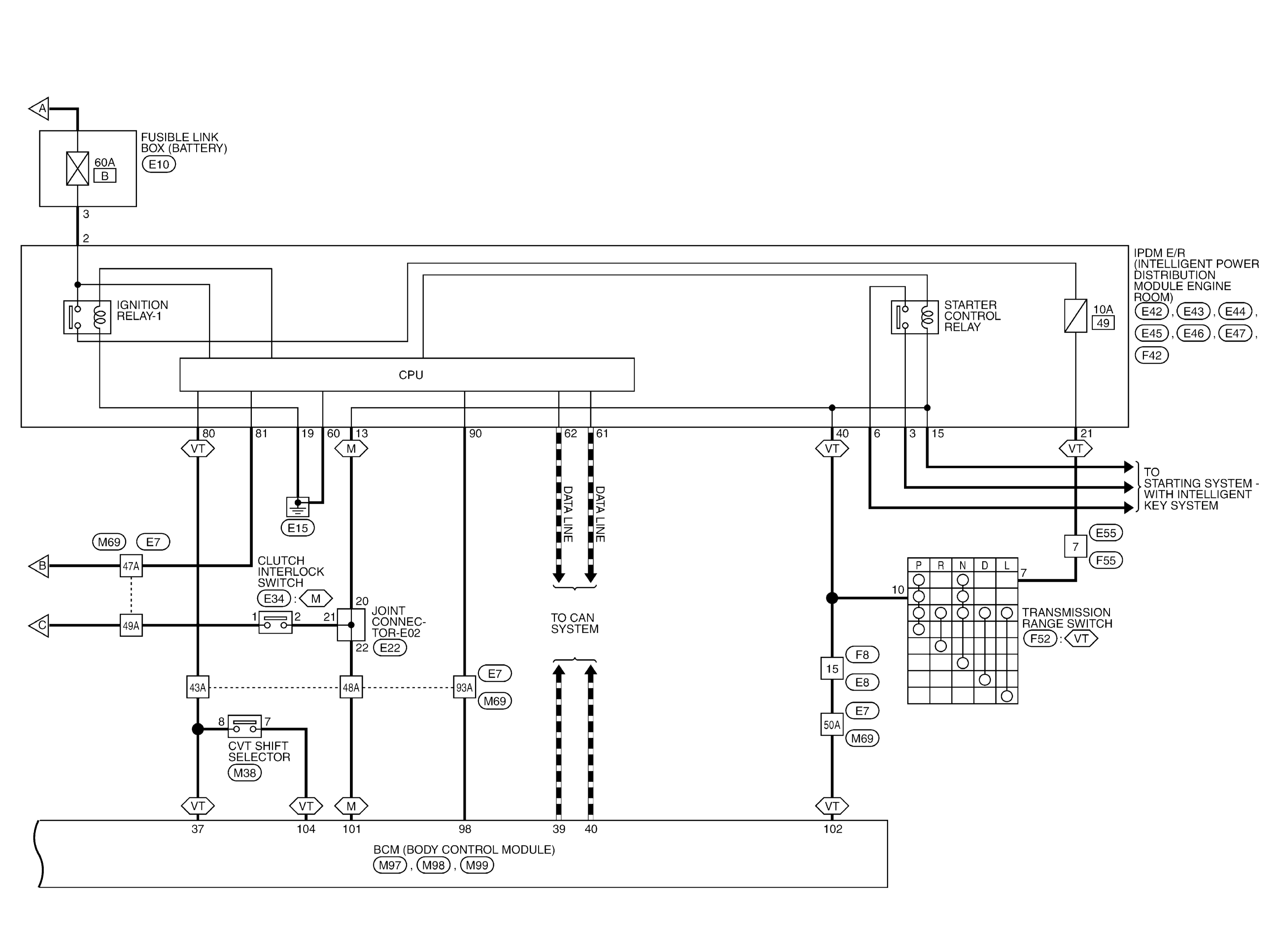

GNSABMWA4395GB-395

Courtesy of NISSAN NORTH AMERICA, INC.

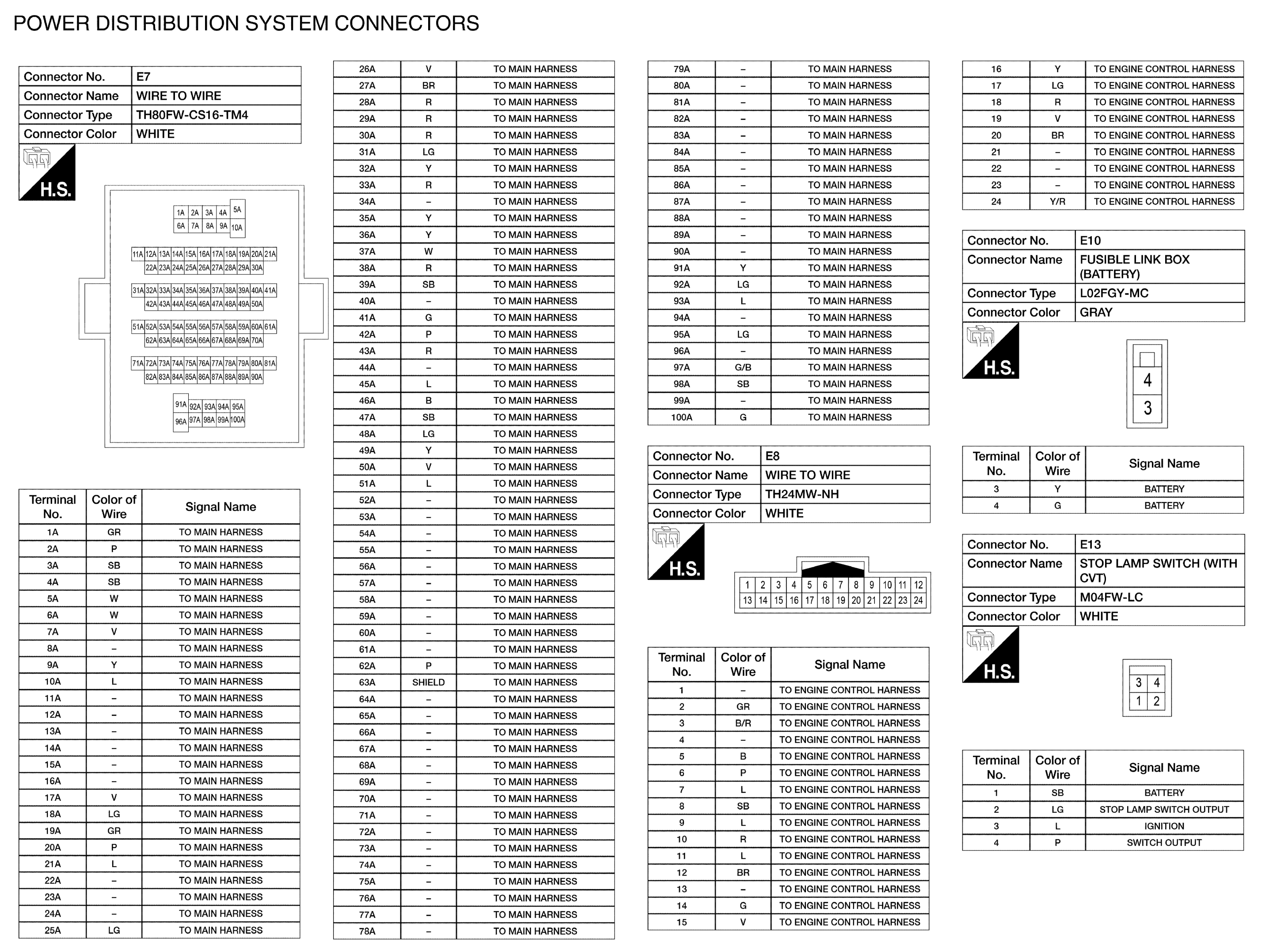

GNSABMIB0740GB-740

Courtesy of NISSAN NORTH AMERICA, INC.

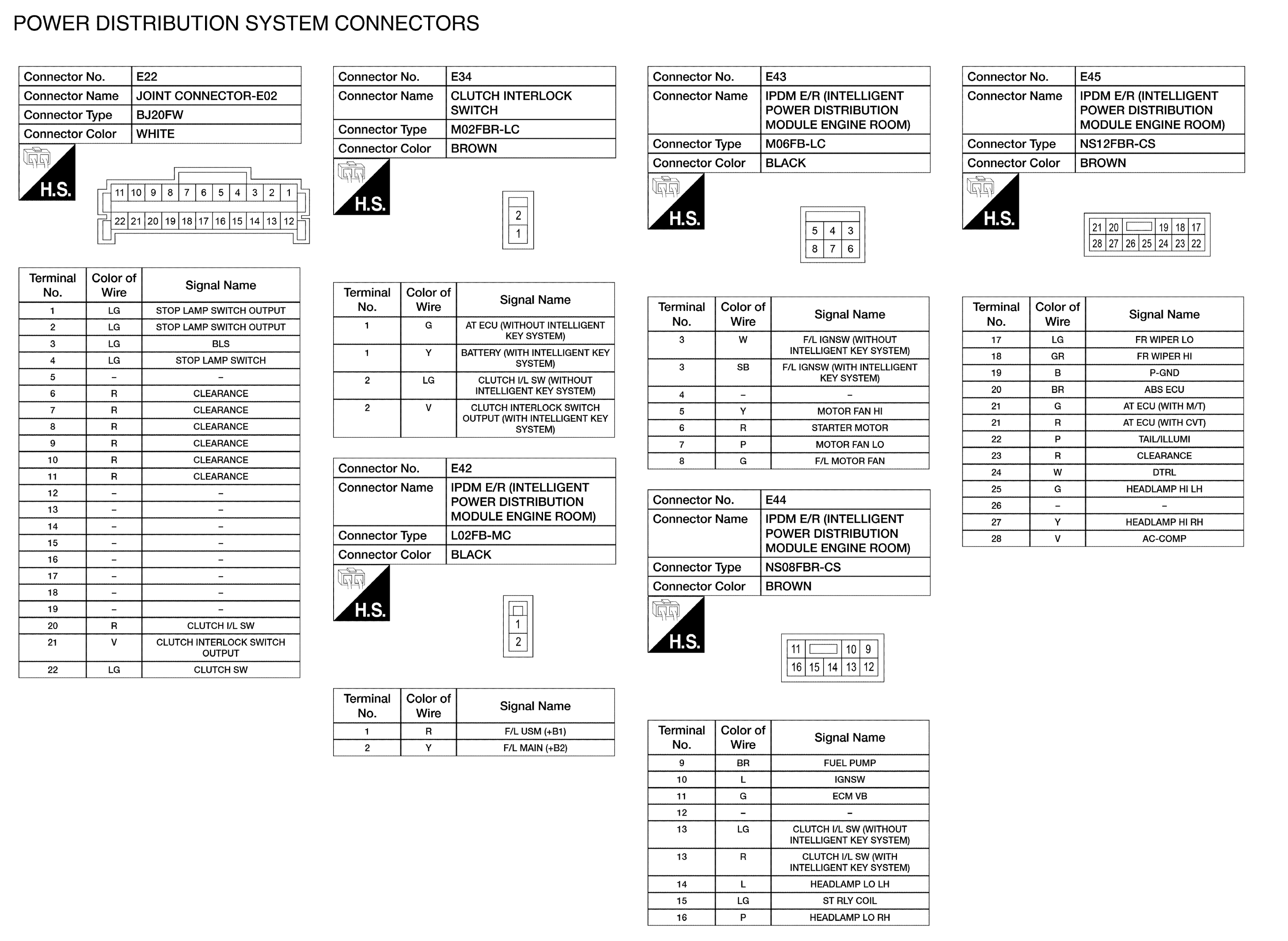

GNSABMIB0741GB-741

Courtesy of NISSAN NORTH AMERICA, INC.

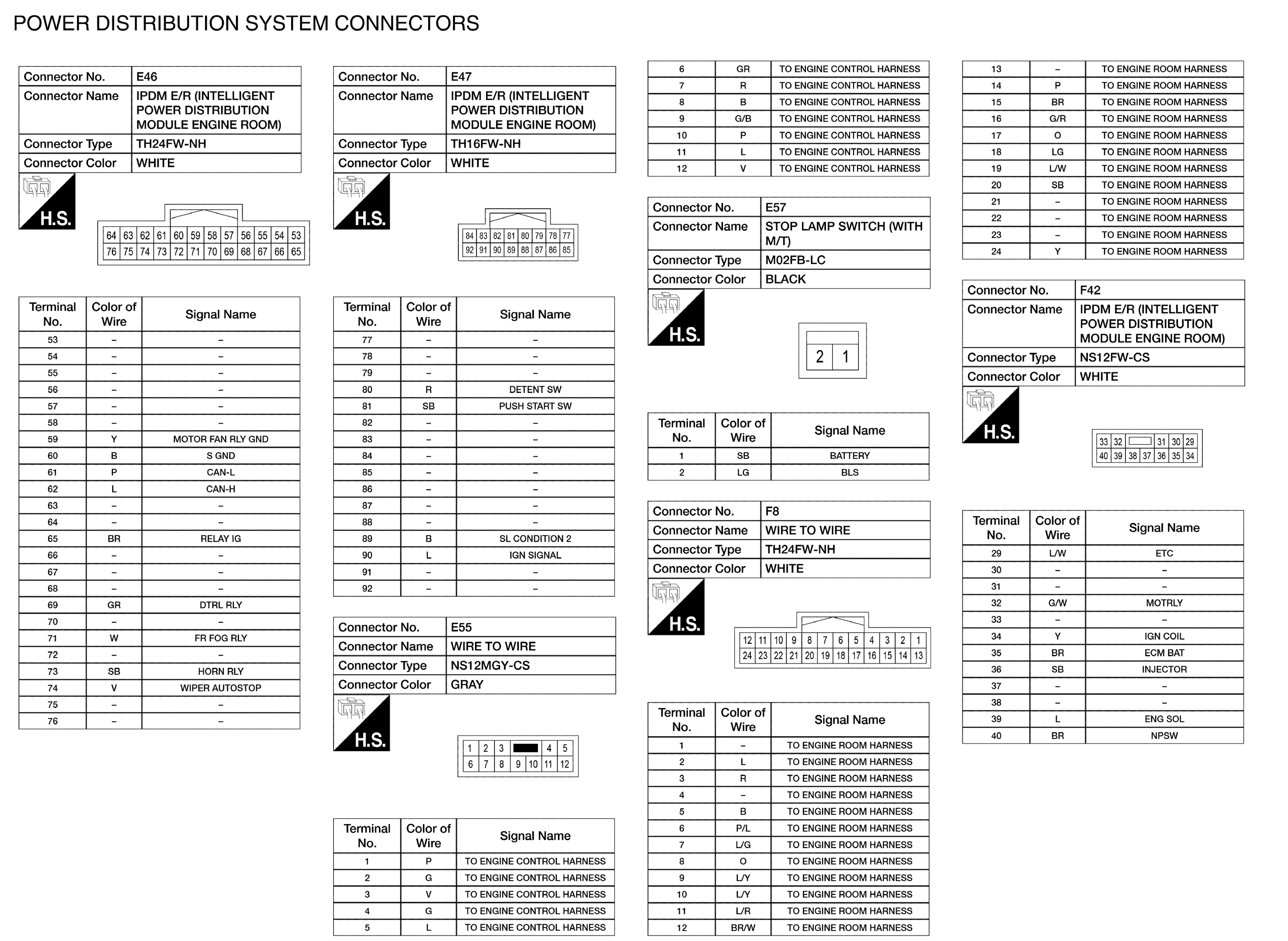

GNSABMIB0742GB-742

Courtesy of NISSAN NORTH AMERICA, INC.

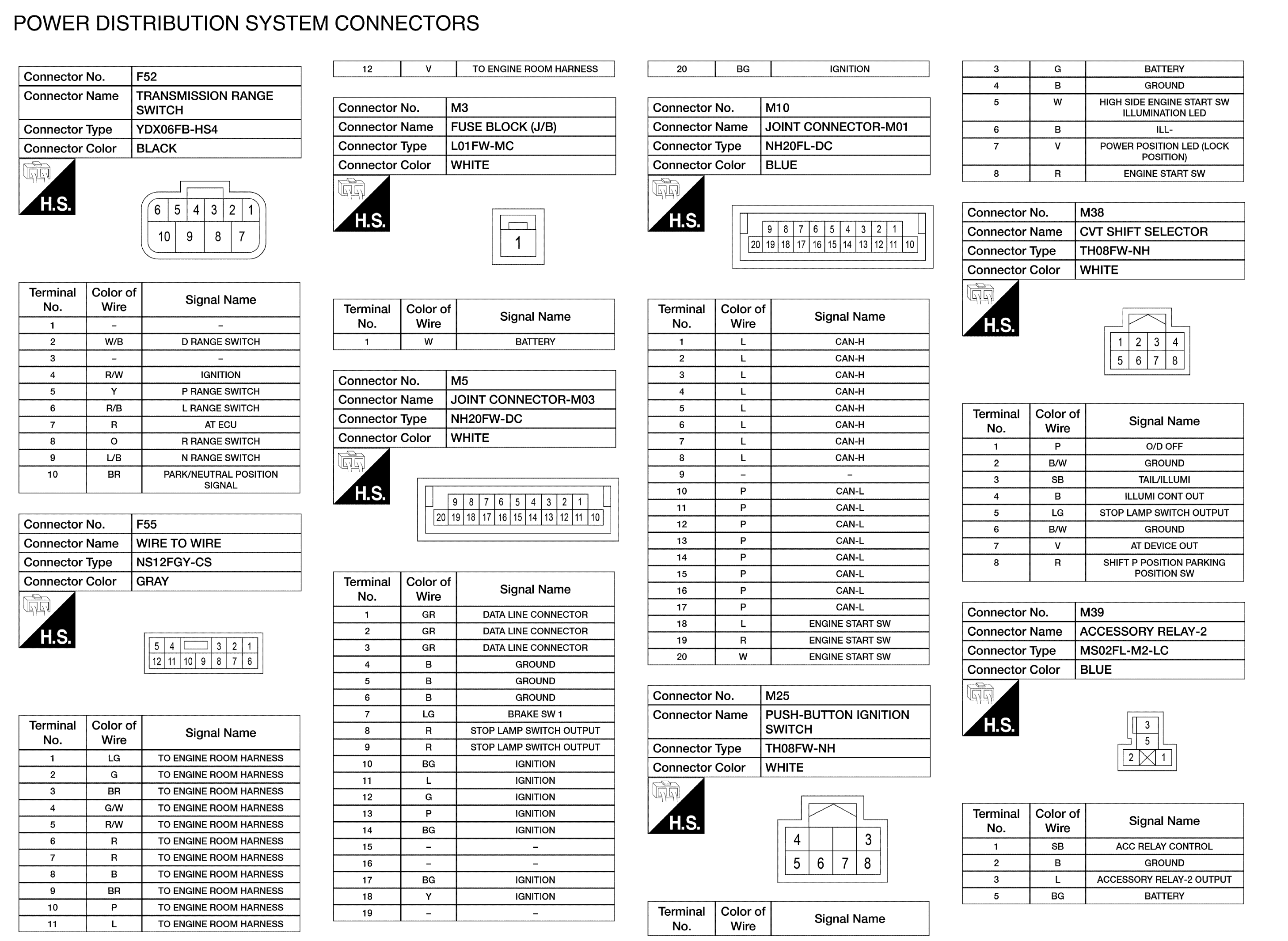

GNSABMIB0743GB-743

Courtesy of NISSAN NORTH AMERICA, INC.

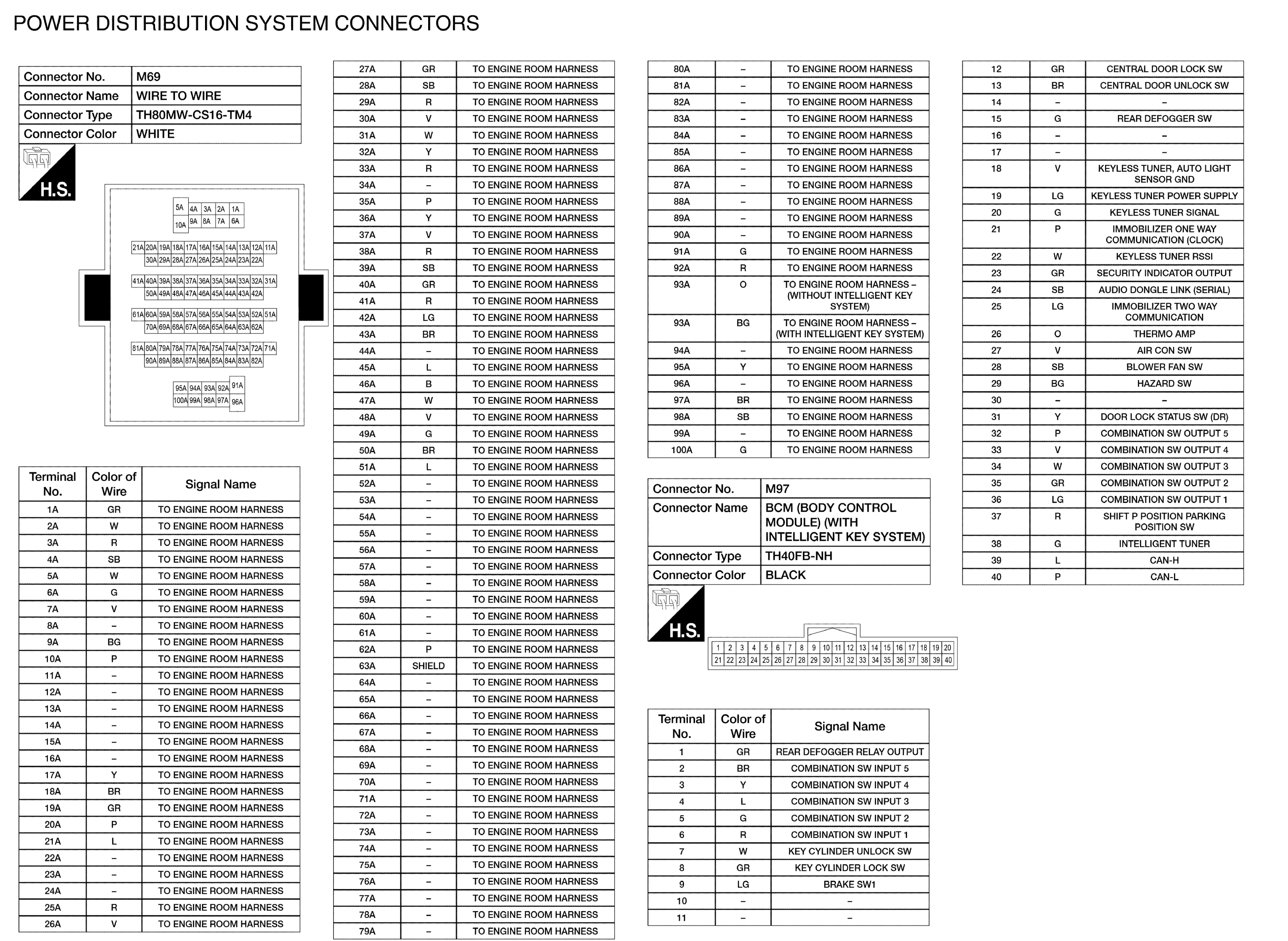

GNSABMIB0744GB-744

Courtesy of NISSAN NORTH AMERICA, INC.

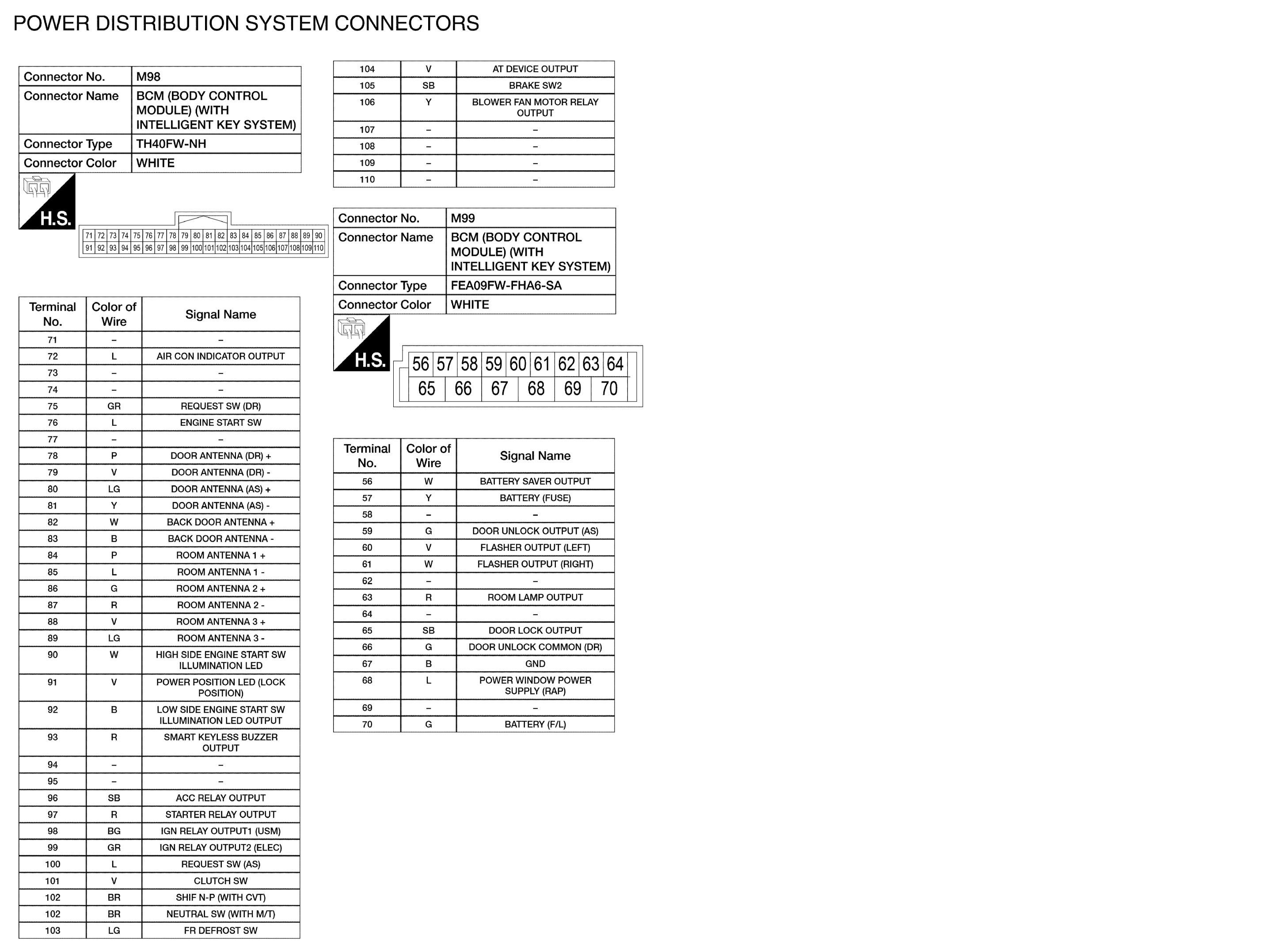

GNSABMIB0745GB-745

Courtesy of NISSAN NORTH AMERICA, INC.
