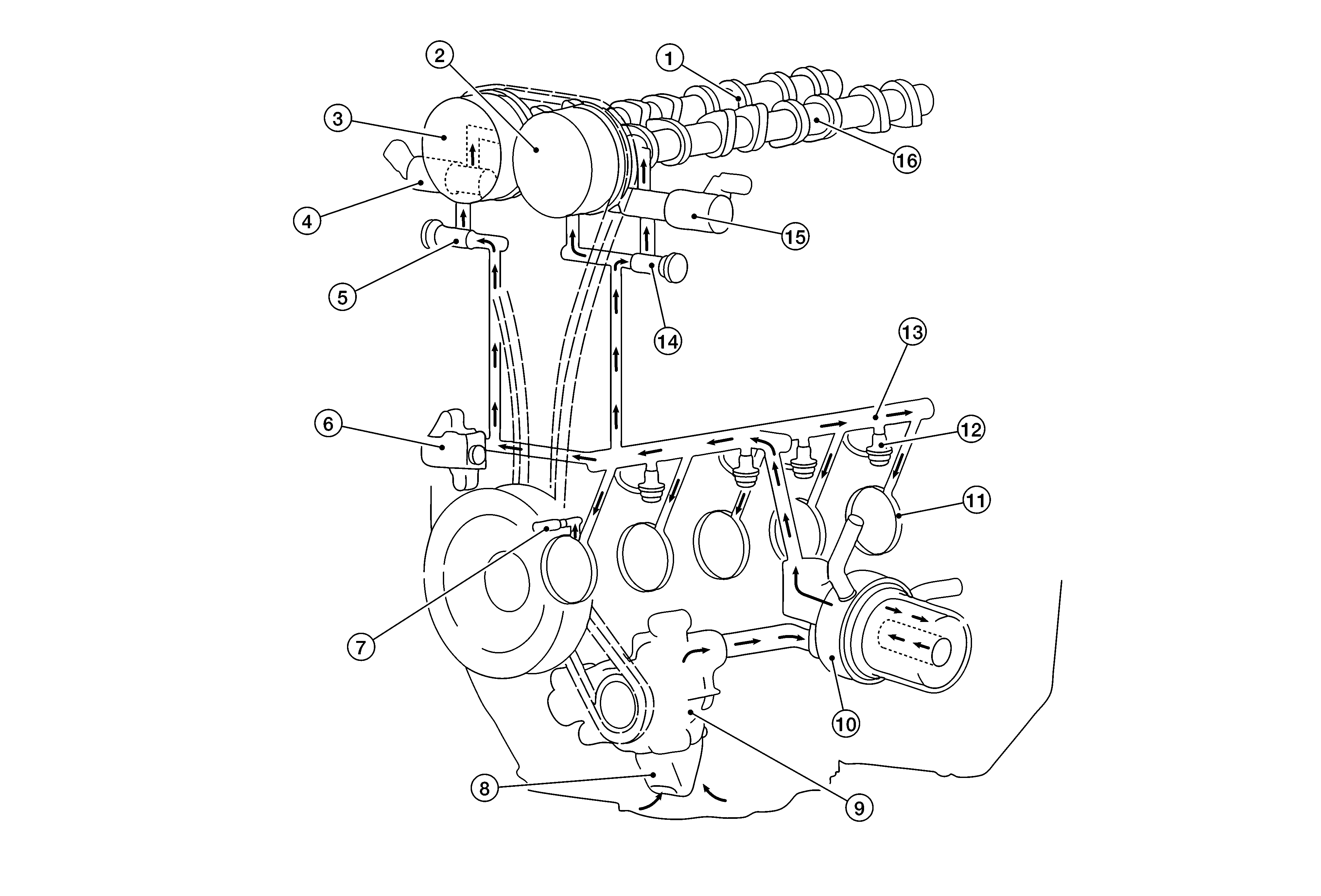

Engine Lubrication System
| 1. | Exhaust camshaft | 2. | Intake valve timing controller | 3. | Exhaust valve timing controller |
| 4. | Exhaust valve timing control solenoid valve | 5. | Exhaust timing control oil filter | 6. | Chain tensioner |
| 7. | Chain oil jet | 8. | Oil strainer | 9. | Oil pump |
| 10. | Oil cooler | 11. | Oil filter | 12. | Main bearing |
| 13. | Piston oil jet | 14. | Intake valve timing control oil filter | 15. | Intake valve timing control solenoid valve |
| 16. | Intake camshaft |
