Around View Monitor Function: Operation

• The around view monitor operates by pressing the CAMERA switch on the AV control unit or by shifting the selector lever to the R (reverse) position.
• When the selector lever is in any position other than R (reverse) and the CAMERA switch is pressed, the screen displays front travel direction view and birds-eye view. Pressing the CAMERA switch again changes birds-eye view to front-side view
• When the selector lever is placed in R (reverse), the screen displays rear travel direction view and birds-eye view. Pressing the CAMERA switch changes birds-eye view to front-side view
• In birds-eye view, the blind spot area is displayed in black to show the border of the camera images. In addition, red fixed lines are displayed in the 4 corners of the vehicle icon. After pressing the CAMERA switch for the first time or placing the selector lever in R (reverse) for the first time, the blind spot area is highlighted in yellow for 3 seconds and the red fixed lines blink five times.
• With the selector lever in any position other than R (reverse), the around view monitor screen display is cancelled 3 minutes after pressing the CAMERA switch. The screen returns to the AV control unit display.
• With the selector lever in R (reverse) position, the around view monitor screen display remains on constantly. To return to the AV control unit display, place the selector lever is in any position other than R (reverse).
• If camera image calibration is incomplete, the applicable camera position is indicated as an error on the birds-eye view display.
  NOTE:

  Calibration is necessary when replacing each camera or when replacing around view monitor control unit.

Around view monitor screen transition

Courtesy of NISSAN NORTH AMERICA, INC.

Front View

• The front view image improves the visibility of obstacles in front of the vehicle and assists driving by displaying images from birds-eye view and front-side view.
• The front view image displays the vehicle width guiding line and vehicle distance guiding line, in addition to the predictive course line according to the steering angle.
• If the steering angle is within approximately 90 degrees, the predictive course lines on the left/right side are displayed. If the steering angle exceeds approximately 90 degrees, only the predictive course line on the outside is displayed (opposite side of steering direction).
• The around view monitor control unit receives the steering angle signal from steering angle sensor via CAN communication, and controls the direction and distance of the predictive course line.
• ON/OFF setting of predictive course line can be performed using CONSULT.

Front view guiding lines

Courtesy of NISSAN NORTH AMERICA, INC.

Rear View

• The rear view image improves the visibility of obstacles in the rear of the vehicle and assists backing and parking by displaying images from birds-eye view and front side view.
• The rear view image displays the vehicle width guiding line and vehicle distance guiding line, in addition to the predictive course line according to the steering angle.
  NOTE:

  The predictive course line is not displayed at the steering neutral position.

• The around view monitor control unit receives the steering angle signal from steering angle sensor via CAN communication, and controls the direction and distance of the predictive course line.
• ON/OFF setting of predictive course line can be performed using CONSULT.

Rear view guiding lines

Courtesy of NISSAN NORTH AMERICA, INC.

Front-Side View

• The front-side view image improves the visibility of obstacles in the front RH side of the vehicle and assists backing and parking.
• The front-side view image displays the vehicle distance guiding line and vehicle width guiding line.

Front-side view area and guiding line

Courtesy of NISSAN NORTH AMERICA, INC.

Birds-Eye View

• The birds-eye view image improves the visibility of obstacles all around the vehicle and assists backing and parking.
• The images from the four cameras are converted into an overhead view, and the surroundings of the vehicle are displayed.
• The blind spot area is displayed on the image to specify the boundary of the four cameras.

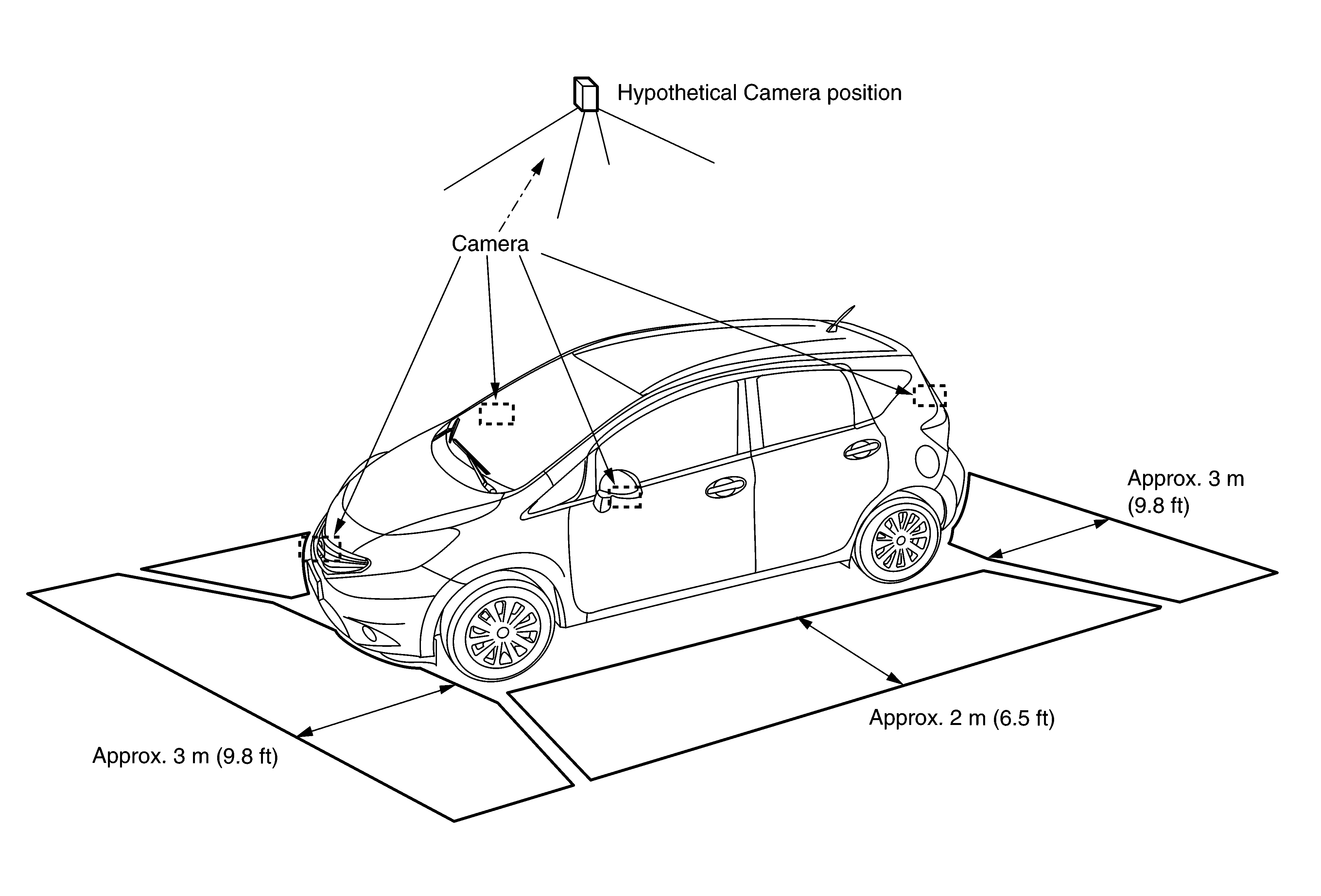

BirdsEye view display image

Courtesy of NISSAN NORTH AMERICA, INC.

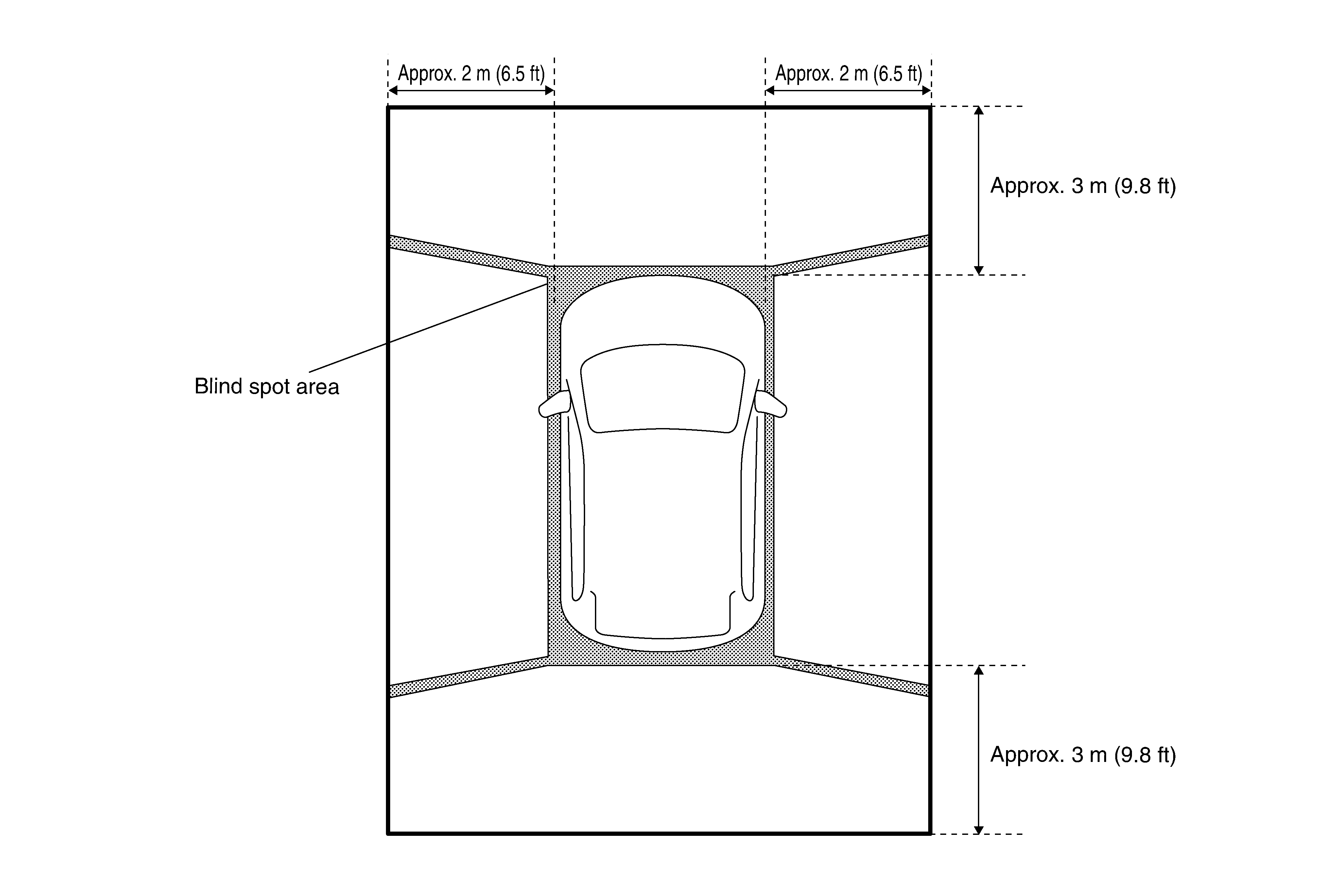

BirdsEye view display area

Courtesy of NISSAN NORTH AMERICA, INC.
