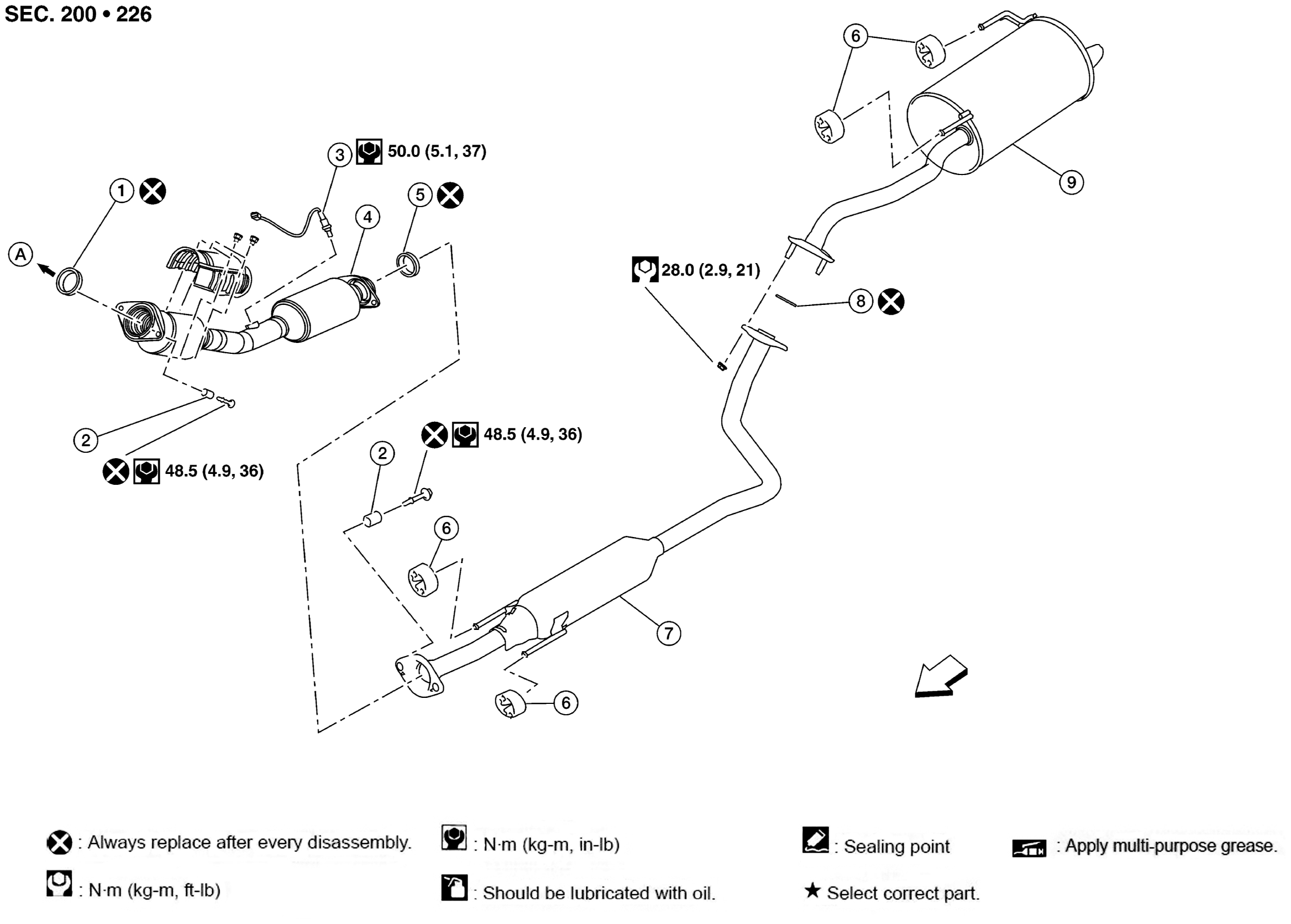

Exploded View : Notes
| 1. | Seal bearing | 2. | Spring | 3. | Heated oxygen sensor 2 |
| 4. | Front Exhaust tube | 5. | Seal bearing | 6. | Mounting rubber |
| 7. | Center muffler | 8. | Ring gasket | 9. | Main muffler |
| A. | To Exhaust manifold | Front |
WARNING:
- Perform the procedures with the exhaust system fully cooled down to avoid injury from the hot exhaust system.
- Be careful not to cut your hand on the insulator edge.
CAUTION:
Use Genuine NISSAN exhaust system parts or equivalent, which are specifically designed for heat resistance, corrosion resistance, and shape.
