Exploded View

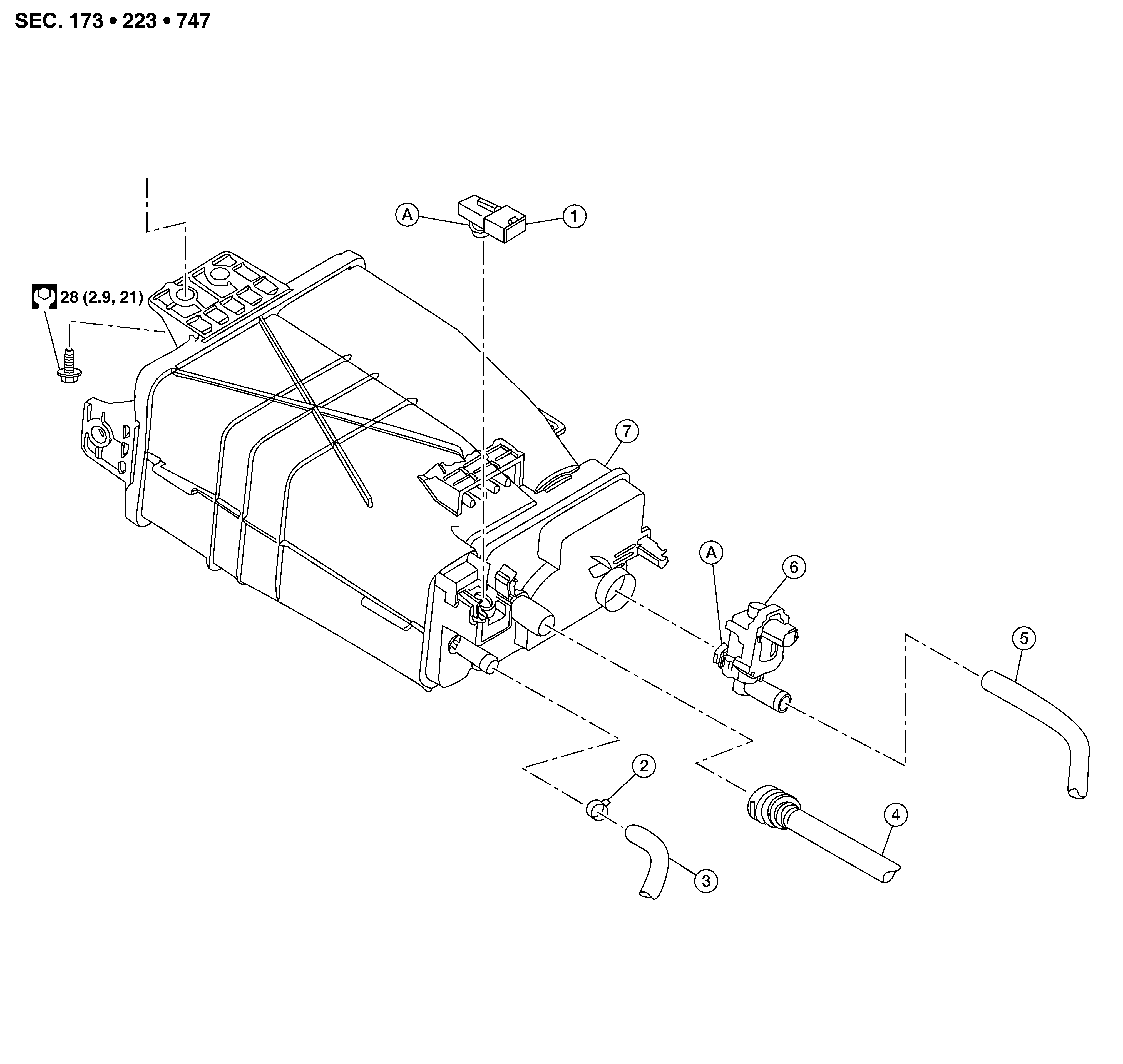

Fig 1: EVAP Canister Control Pressure Sensor With Torque Specifications For QR25DE Engine Model

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister control pressure sensor	2.	Clamp	3.	EVAP canister purge hose
4.	EVAP canister vent line	5.	EVAP canister vent control valve hose	6.	EVAP canister vent control valve
7.	EVAP canister	A.	O-ring

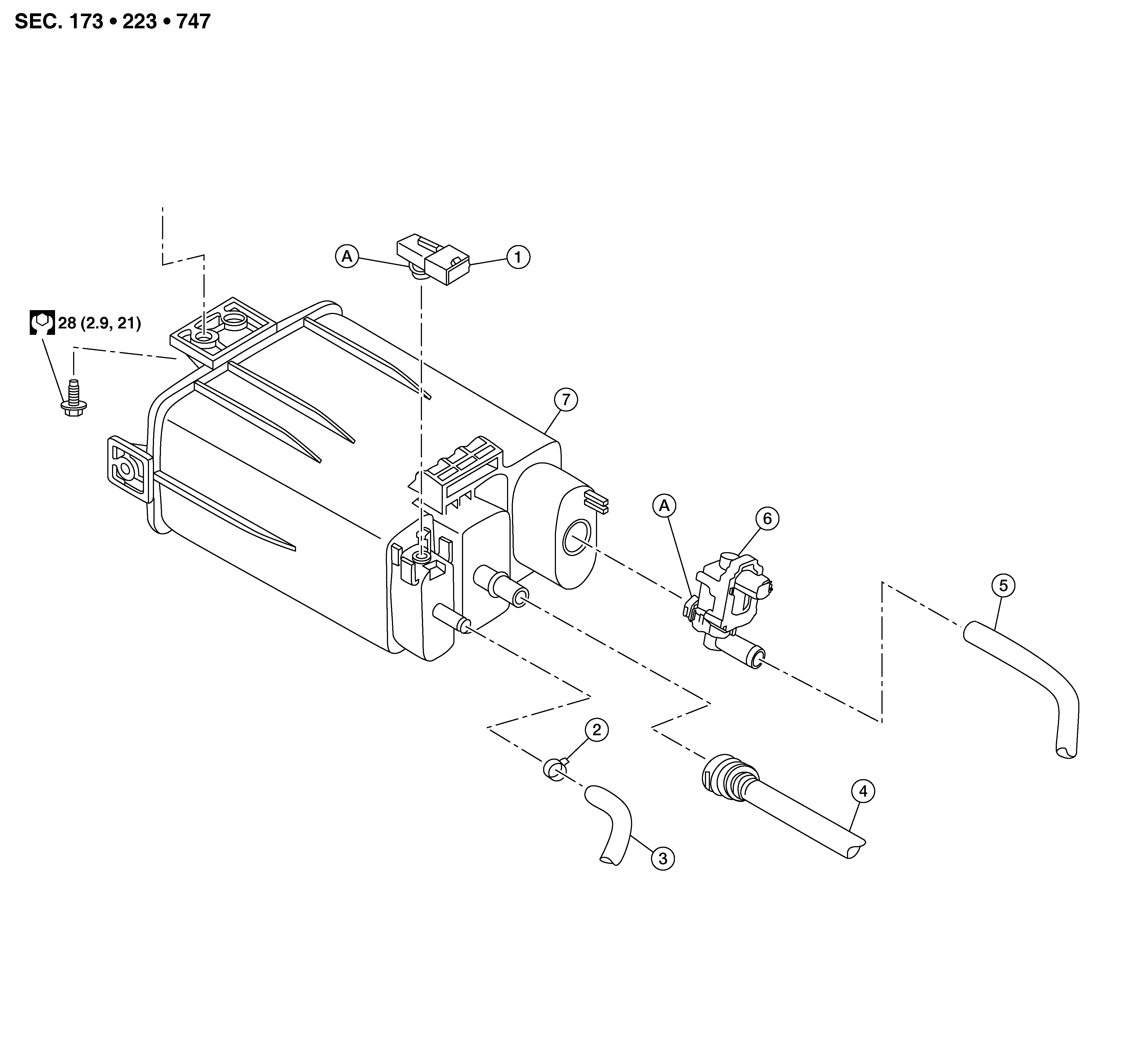

Fig 2: EVAP Canister Control Pressure Sensor For VQ35DE Engine Model

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister control pressure sensor	2.	Clamp	3.	EVAP canister purge hose
4.	EVAP canister vent line	5.	EVAP canister vent control valve hose	6.	EVAP canister vent control valve
7.	EVAP canister	A.	O-ring
