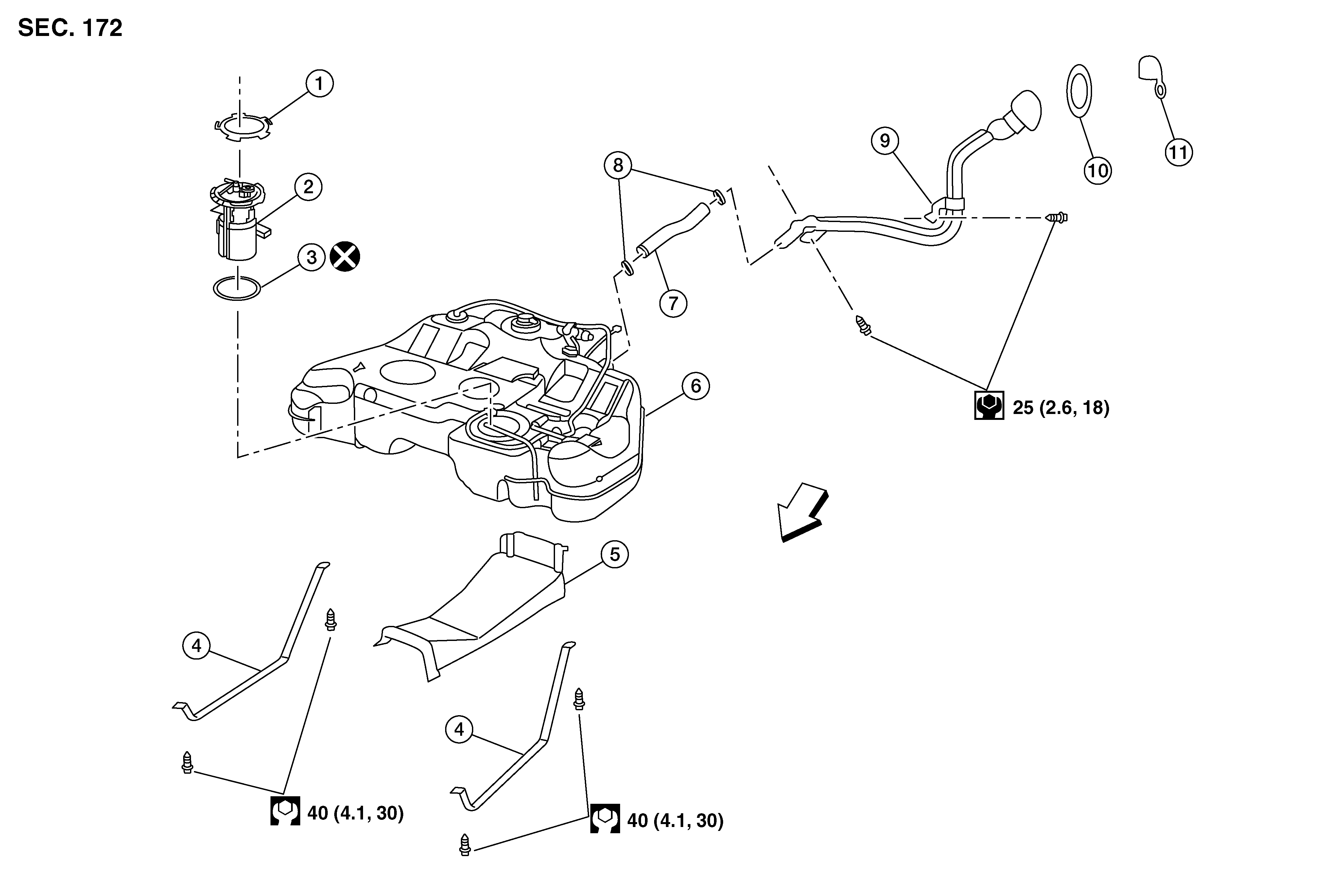

1.
Lock ring
2.
Fuel level sensor, fuel filter, and fuel pump assembly
3.
O-ring
4.
Fuel tank mounting straps
5.
Fuel tank protector
6.
Fuel tank
7.
Fuel filler hose
8.
Clamp
9.
10.
Grommet
11.
Fuel filler cap
/>
Front
