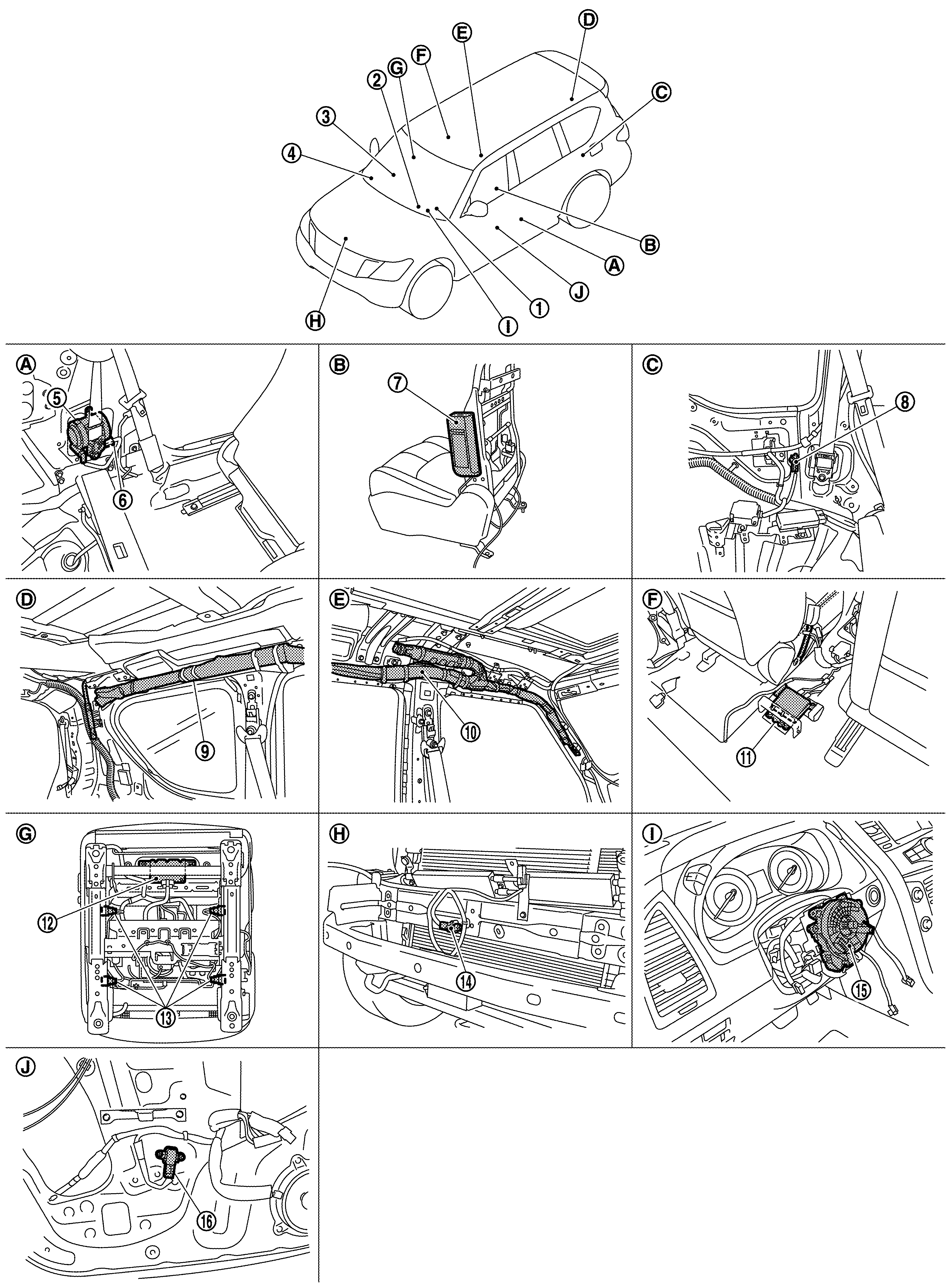

Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Driver air bag module	2.	Combination meter	3.	Front passenger air bag OFF indicator
4.	Passenger air bag module	5.	Seat belt pre-tensioner	6.	Front satellite sensor
7.	Side air bag module	8.	Rear satellite sensor	9.	Rear curtain air bag module
10.	Front curtain air bag module	11.	Air bag diagnosis sensor unit	12.	Occupant detection system control unit
13.	Occupant detection system seat sensor	14.	Crash zone sensor	15.	Combination switch (spiral cable)
16.	Front door satellite sensor
A.	Behind center pillar lower garnish	B.	View with seatback pad removed	C.	View with luggage side finisher lower removed
D.	View with headlining assembly removed	E.	View with headlining assembly removed	F.	View with center console assembly removed
G.	Backside of passenger seat cushion frame	H.	View with bumper fascia assembly removed	I.	View with steering wheel removed
J.	View with door finisher removed
