DTC Detection Logic
The heated oxygen sensor 2 has a much longer switching time between rich and lean than the air fuel ratio (A/F) sensor 1. The oxygen storage capacity of the three way catalyst 1 causes the longer switching time.
MALFUNCTION A
To judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the voltage is unusually high during various driving conditions such as fuel cut.
MALFUNCTION B

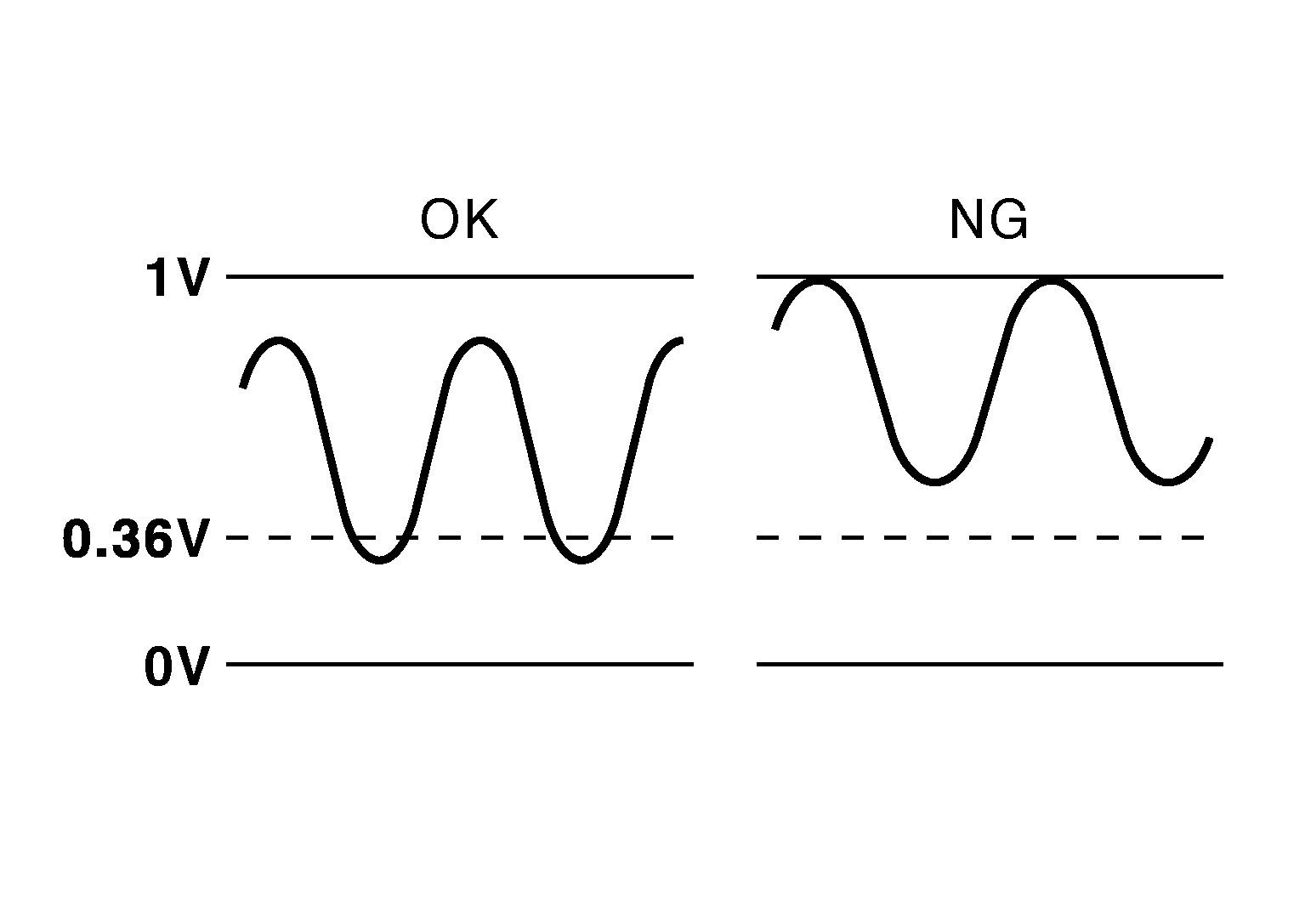

To judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the minimum voltage of sensor is sufficiently low during various driving conditions such as fuel cut.
|
DTC |
CONSULT screen terms (Trouble diagnosis content) |
DTC detection condition |
||
|
P0138 |
HO2S2 (B1) (O2 Sensor Circuit High Voltage Bank 1 Sensor 2) |
A) |
Diagnosis condition |
- |
|
Signal (terminal) |
- |
|||
|
Threshold |
An excessively high voltage from the sensor is sent to ECM. |
|||
|
Diagnosis delay time |
- |
|||
|
B) |
Diagnosis condition |
- |
||
|
Signal (terminal) |
- |
|||
|
Threshold |
The minimum voltage from the sensor is not reached to the specified voltage. |
|||
|
Diagnosis delay time |
- |
|||
