Exploded View

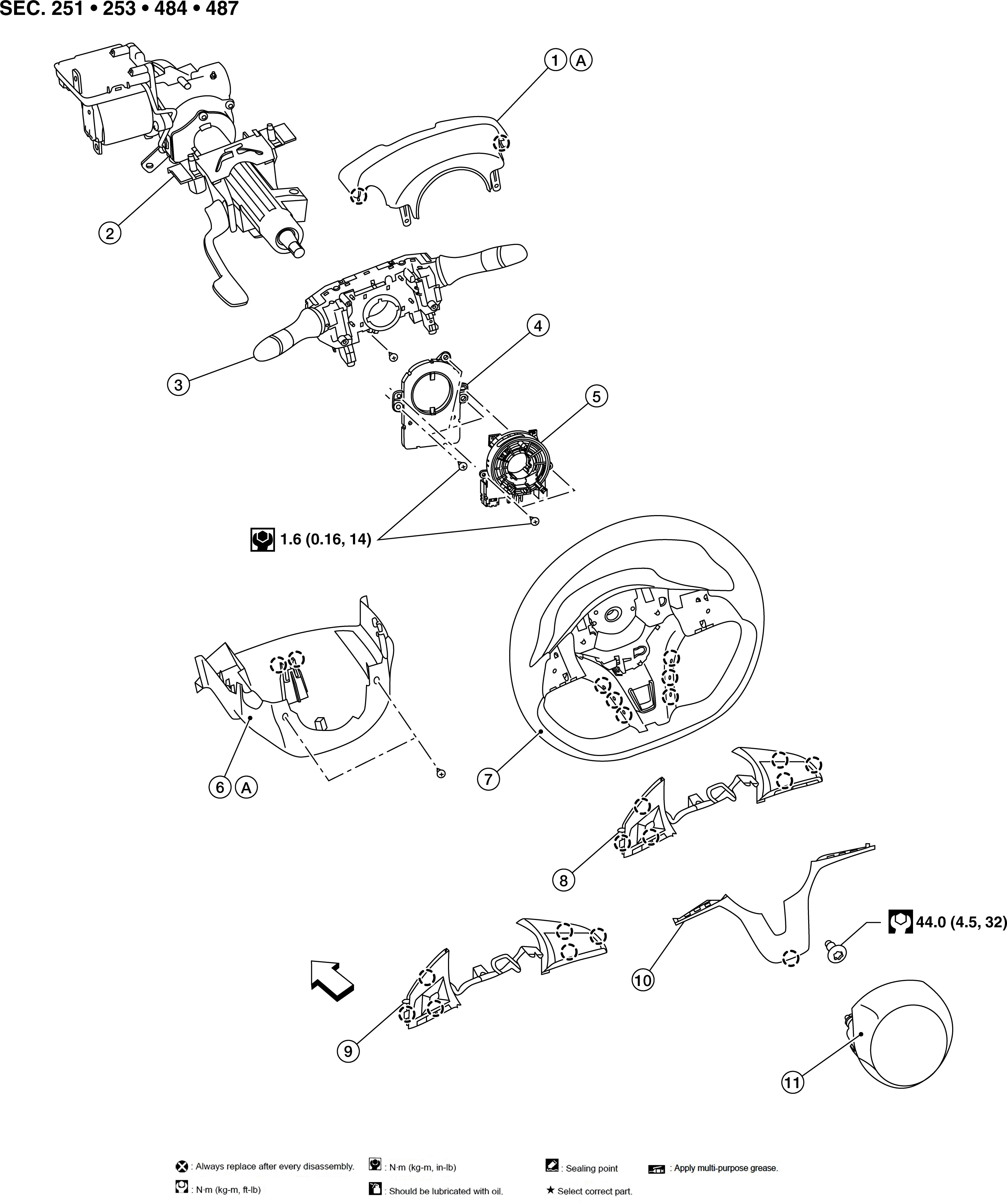

Fig 1: Chassis Control Module (With Built In Steering Angle Sensor) With Torque Specifications
GNSAWJIA2270Z-270Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column upper cover

2.

Steering column

3.

Combination switch

4.

Chassis control module (with built in steering angle sensor)

5.

Spiral cable

6.

Steering column lower cover

7.

Steering wheel

8.

Steering switches (except for BASE AUDIO)

9.

Steering switches (with BASE AUDIO)

10.

Steering wheel finisher

11.

Driver air bag module

A.

Serviced as an assembly

SYMBOL

Pawl

SYMBOL

Front
