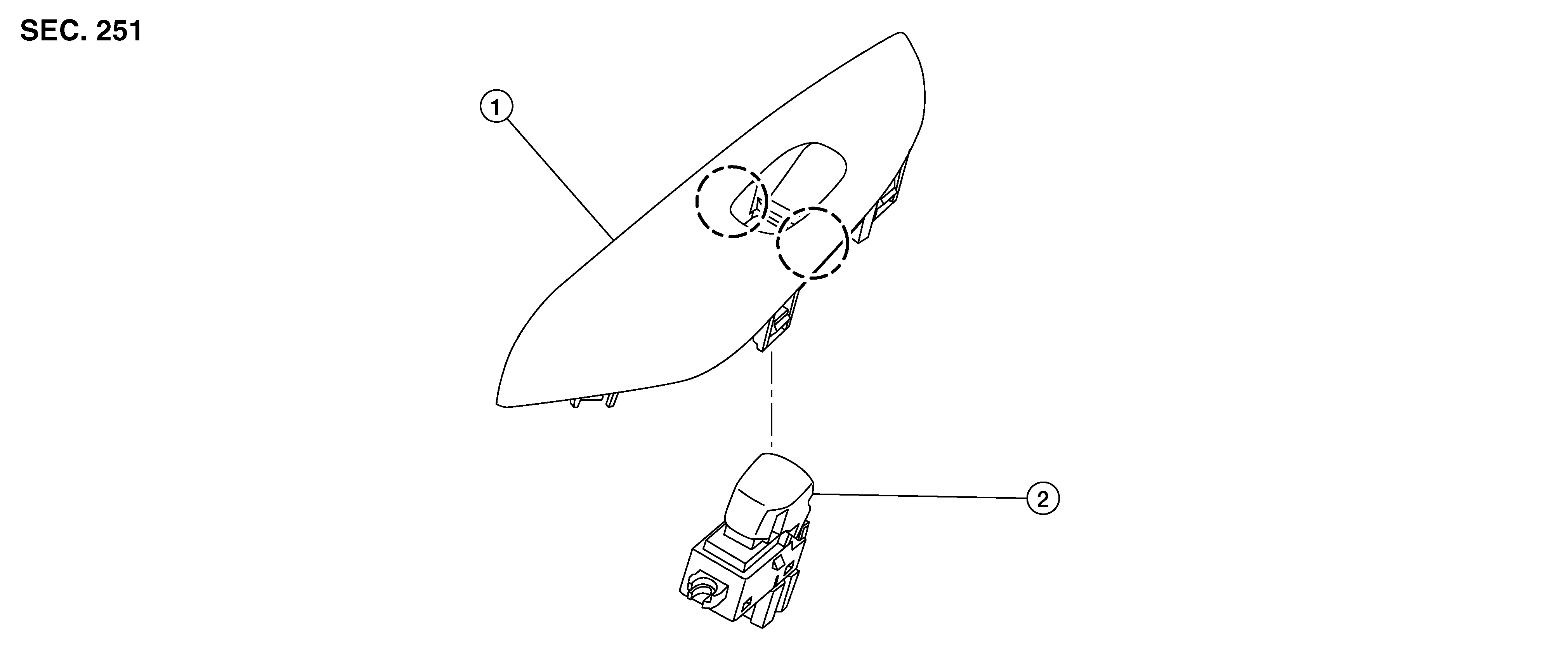

Exploded View

GNSALKIA0101Z-101Courtesy of NISSAN NORTH AMERICA, INC.

1. Power window switch finisher

2. Rear power window switch

SYMBOL Pawl
NOTE: LH shown, RH similar.
