Accelerator Control

Unit: mm (in)

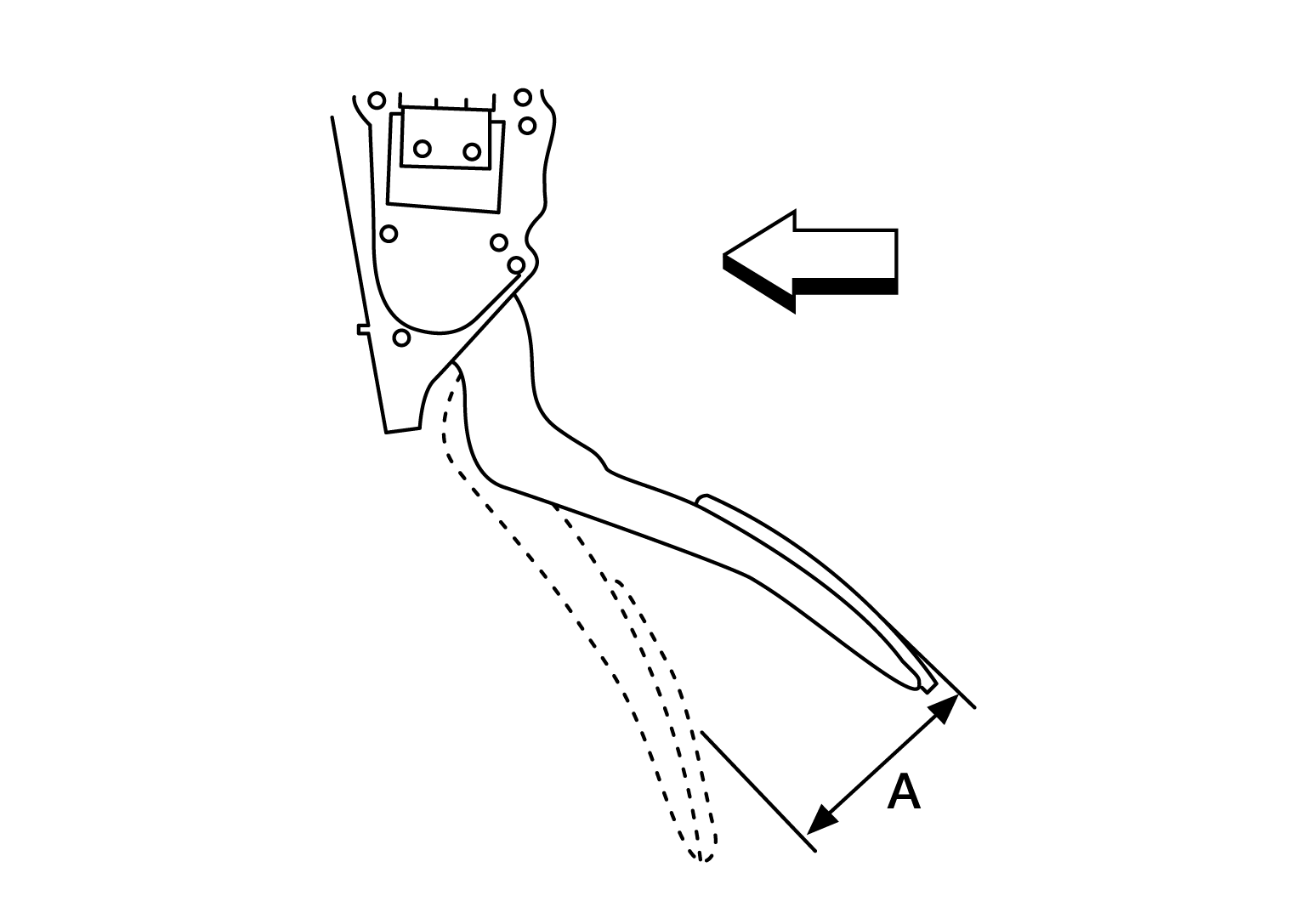

GNSDB112529Courtesy of NISSAN NORTH AMERICA, INC.

Accelerator pedal stroke (A)

49.8 - 52.6 (1.96 - 2.07)

Accelerator pedal height

124.9 +10, -0 (4.92 +0.4, -0)

SYMBOL : Front
