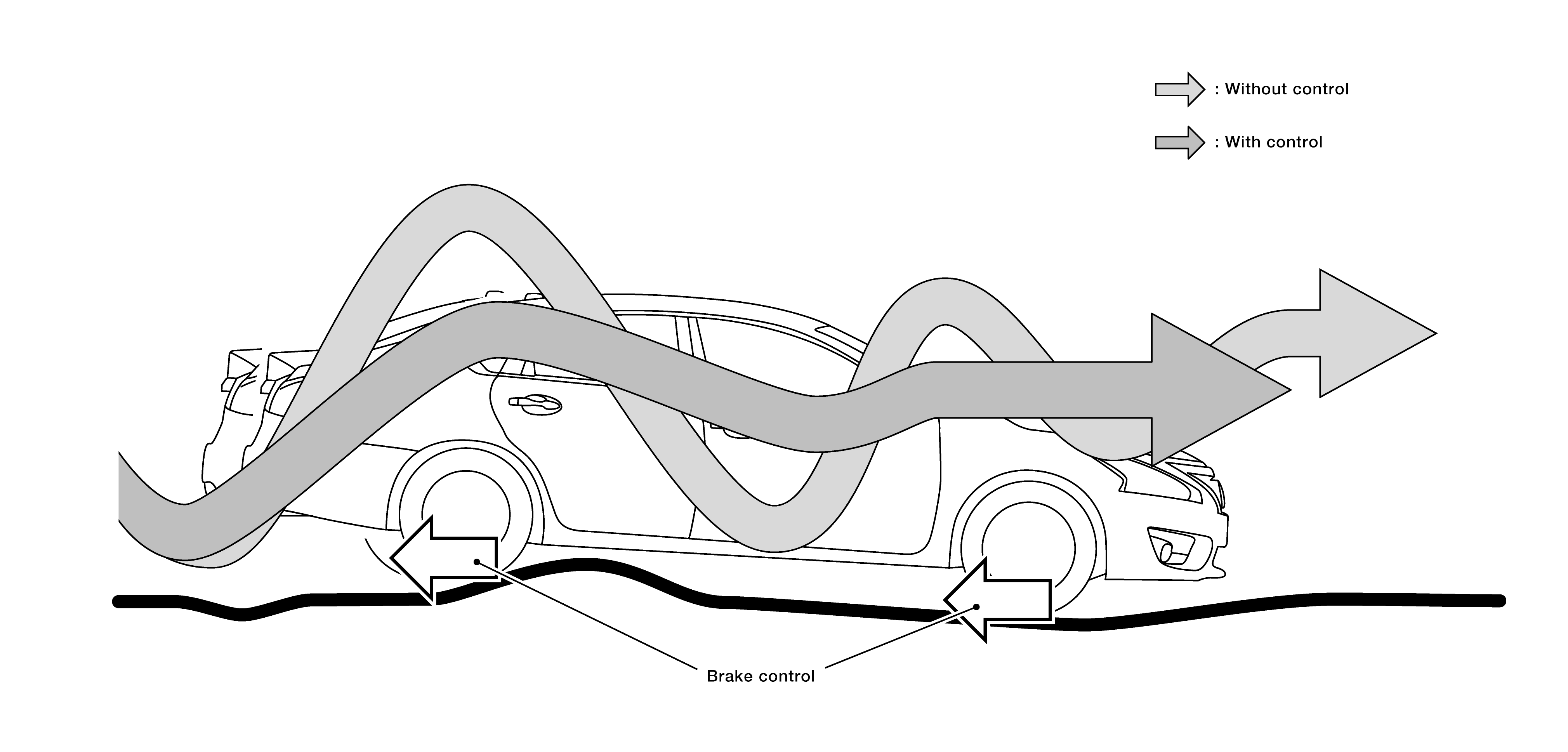

Braking Control

• When driving on an uneven road surface, mainly the rotation speed information of each wheel is computed by the chassis control module to estimate vertical G and a command is transmitted to the ABS actuator and electric unit (control unit).
• The ABS actuator and electric unit (control unit) controls brake fluid pressure (brake force) according to the command from the chassis control module.
• By controlling the brake fluid pressure (brake force), behavior of the vehicle in the vertical direction decreases, and riding comfort is improved.

  Courtesy of NISSAN NORTH AMERICA, INC.

- Brake fluid pressure (brake force) is controlled according to driving conditions.

Courtesy of NISSAN NORTH AMERICA, INC.
