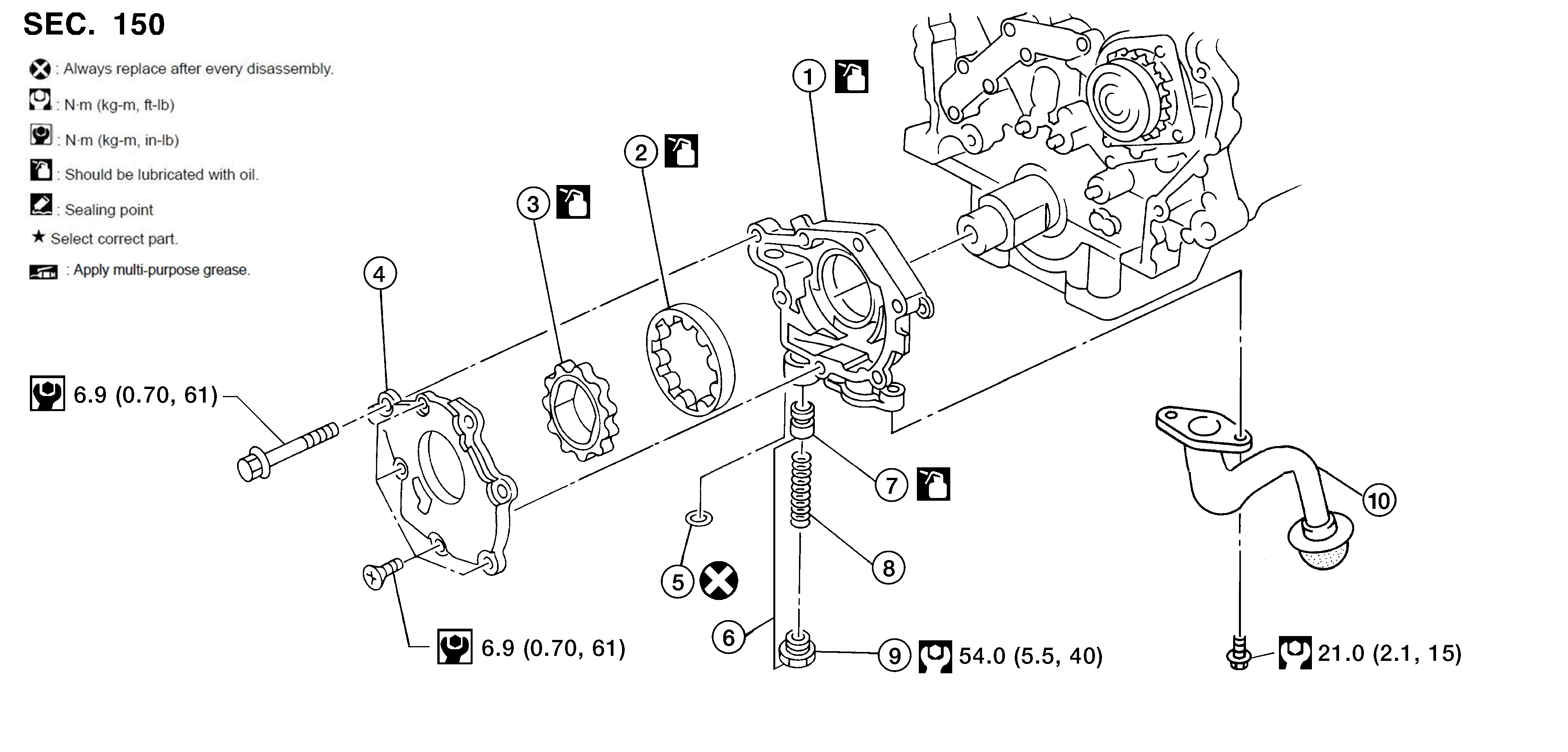

1.
Oil pump housing
2.
Outer rotor
3.
Inner rotor
4.
Oil pump cover
5.
O-ring
6.
Regulator valve set
7.
Regulator valve
8.
Spring
9.
Regulator plug
10.
Oil strainer
Courtesy of NISSAN NORTH AMERICA, INC.
