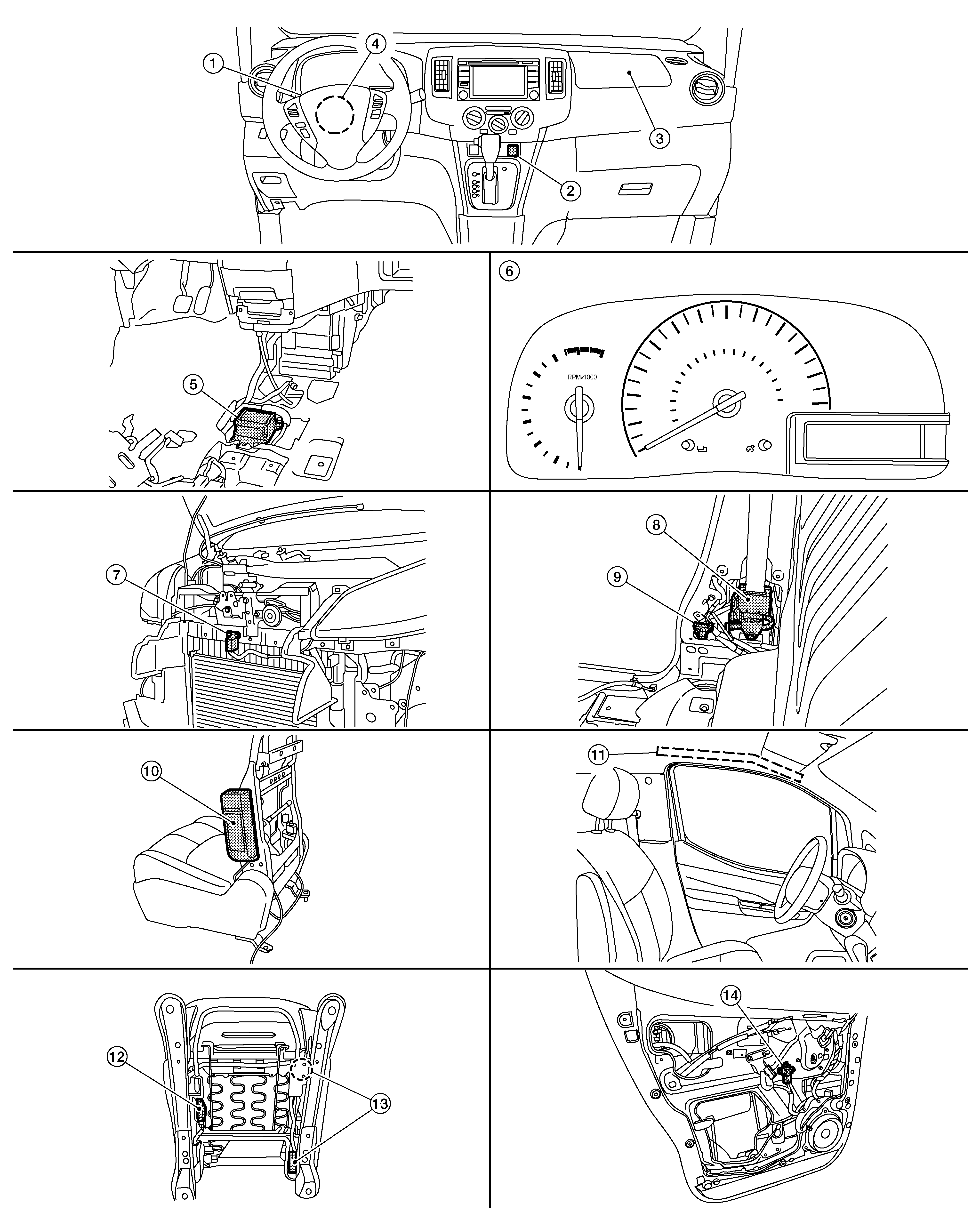

Components Location

1.

Driver air bag module

2.

Front passenger air bag off indicator

3.

Front passenger air bag module

4.

Spiral cable

5.

Air bag diagnosis sensor unit

(view with center console assembly removed)

6.

Combination meter

7.

Crash zone sensor

(view with front bumper removed)

8.

Front RH seatbelt pre-tensioner (view with RH pillar finisher removed) (LH similar)

9.

Front side air bag satellite sensor RH

(view with RH pillar finisher removed)

(LH similar)

10.

Front LH side airbag module

(RH similar)

11.

LH side curtain air bag module

(RH similar)

12.

Occupant classification system control unit

13.

Occupant classification system

sensors

14.

Front door satellite sensor LH (view with front door finisher LH removed) (RH similar)
