Exploded View

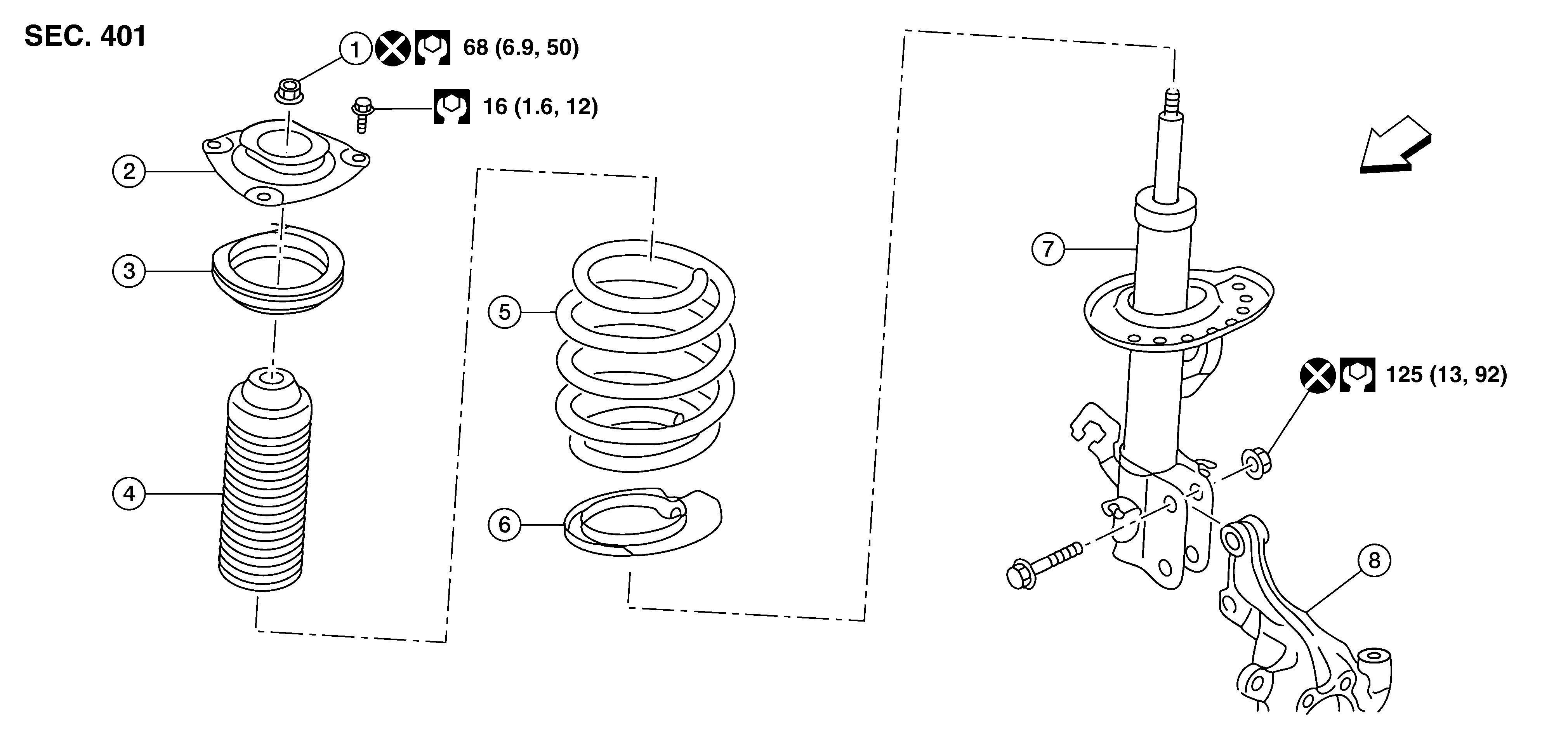

Fig 1: Front Coil Spring And Strut Unit Disassembly And Assembly With Torque Specifications
GNSDB121978Courtesy of NISSAN NORTH AMERICA, INC.

1.

Piston rod lock nut

2.

Strut mount insulator

3.

Strut mount bearing

4.

Bound bumper

5.

Coil spring

6.

Lower rubber seat

7.

Strut

8.

Steering knuckle

SYMBOL

Front
