Component Location

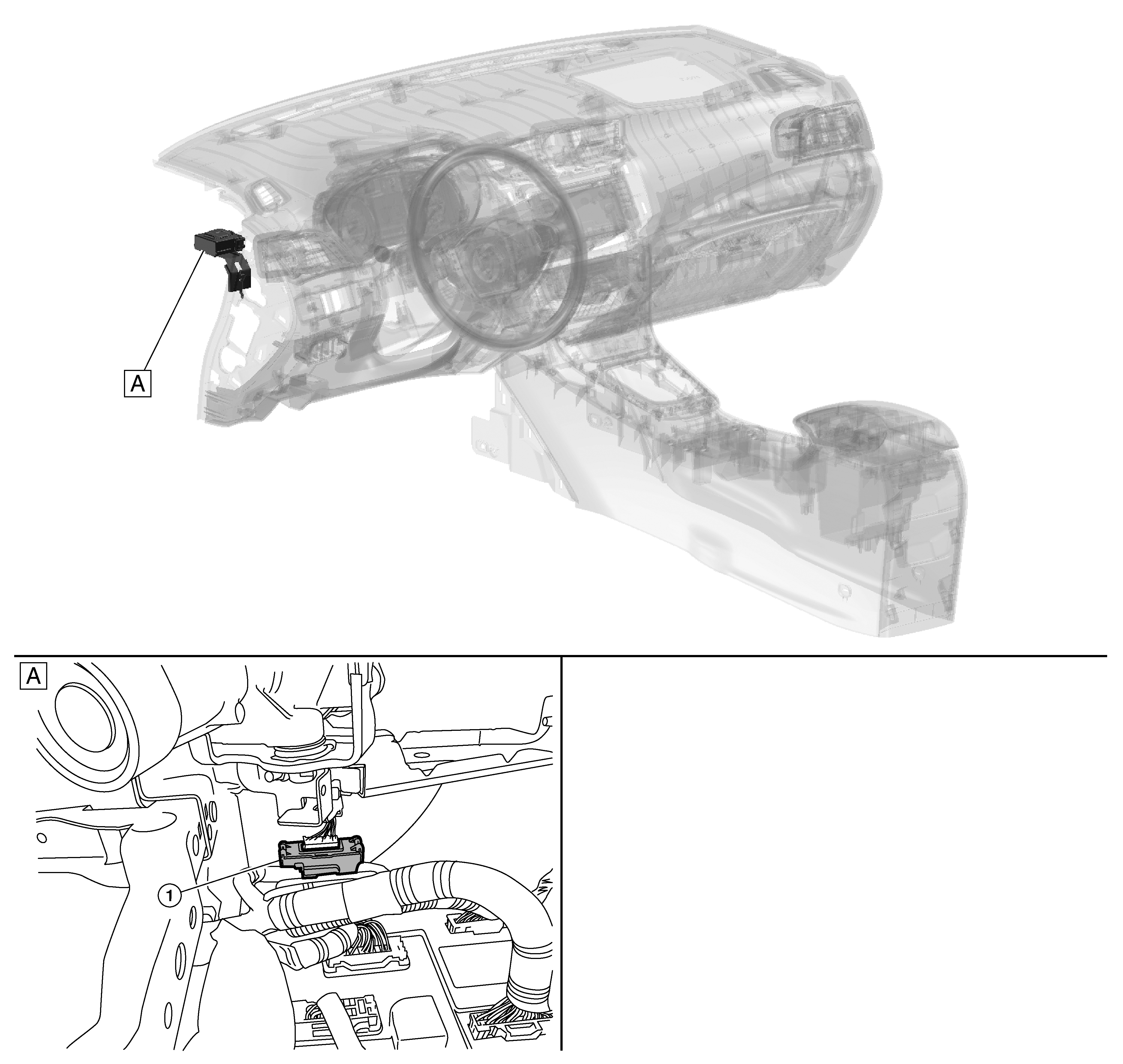

GNSAWOIA0053Z-053Courtesy of NISSAN NORTH AMERICA, INC.

A.

Instrument panel left side

No.

Component

Description

1.

ADAS control unit
  • Controls each system, based on CAN communication and ITS communication signals received from each control unit.
  • Transmits signals necessary for control between CAN communication and ITS communication.
