Exploded View

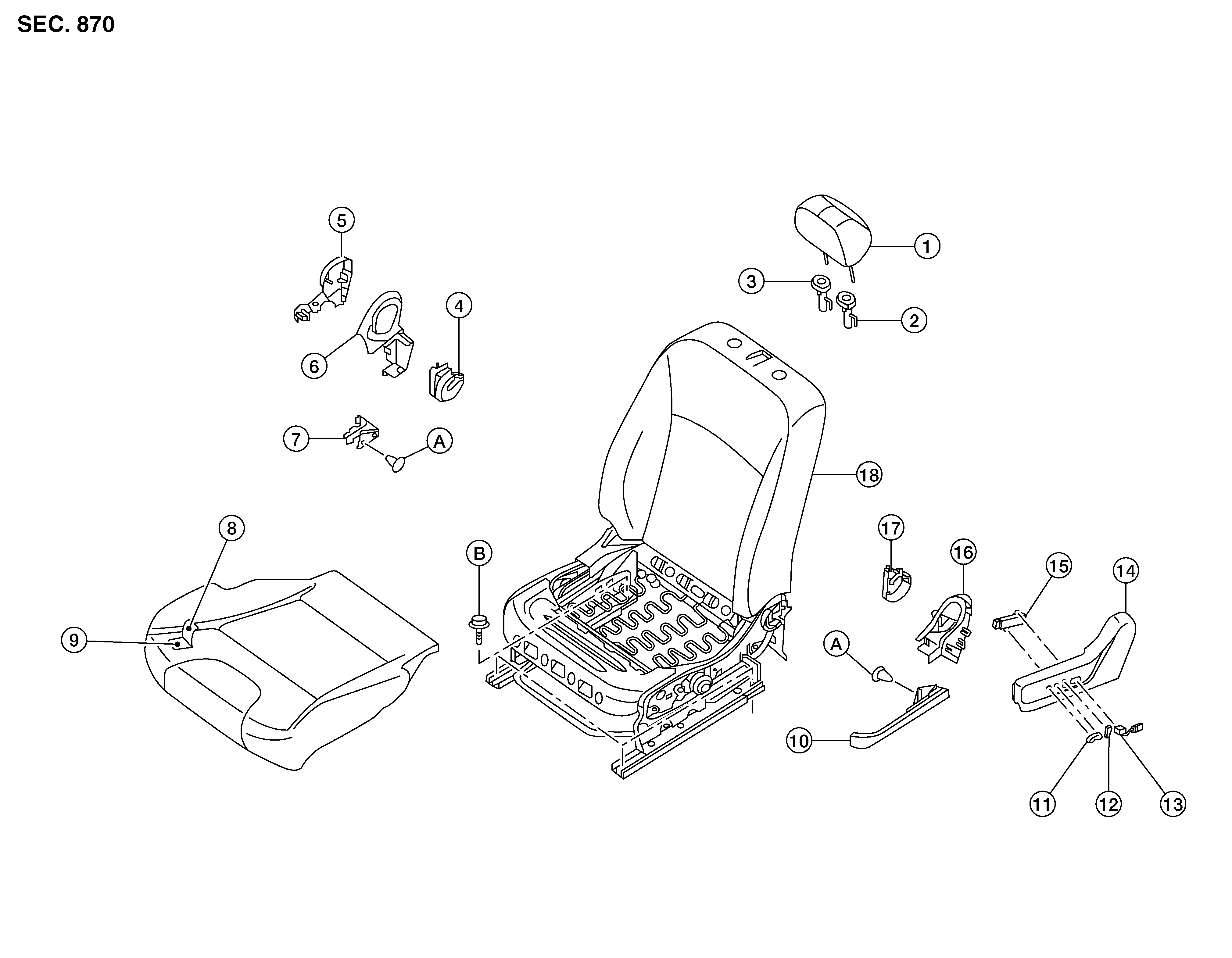

Fig 1: POWER SEAT

GNSALJIA2124Z-124

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Headrest holder (locked)	3.	Headrest holder (free)
4.	Recline mechanism cover (RH)	5.	Seat cushion outside finisher (RH)	6.	Seat cushion inside finisher (RH)
7.	Slide cover (RH)	8.	Seat cushion trim	9.	Seat cushion pad
10.	Slide cover (LH)	11.	Seat slide knob	12.	Seat recline knob
13.	Lumbar support switch	14.	Seat cushion outer finisher (LH)	15.	Power seat switch
16.	Seat cushion inner finisher (LH)	17.	Recline mechanism cover (LH)	18.	Seat assembly
A.	Clip	B.	Refer to ASSEMBLY.

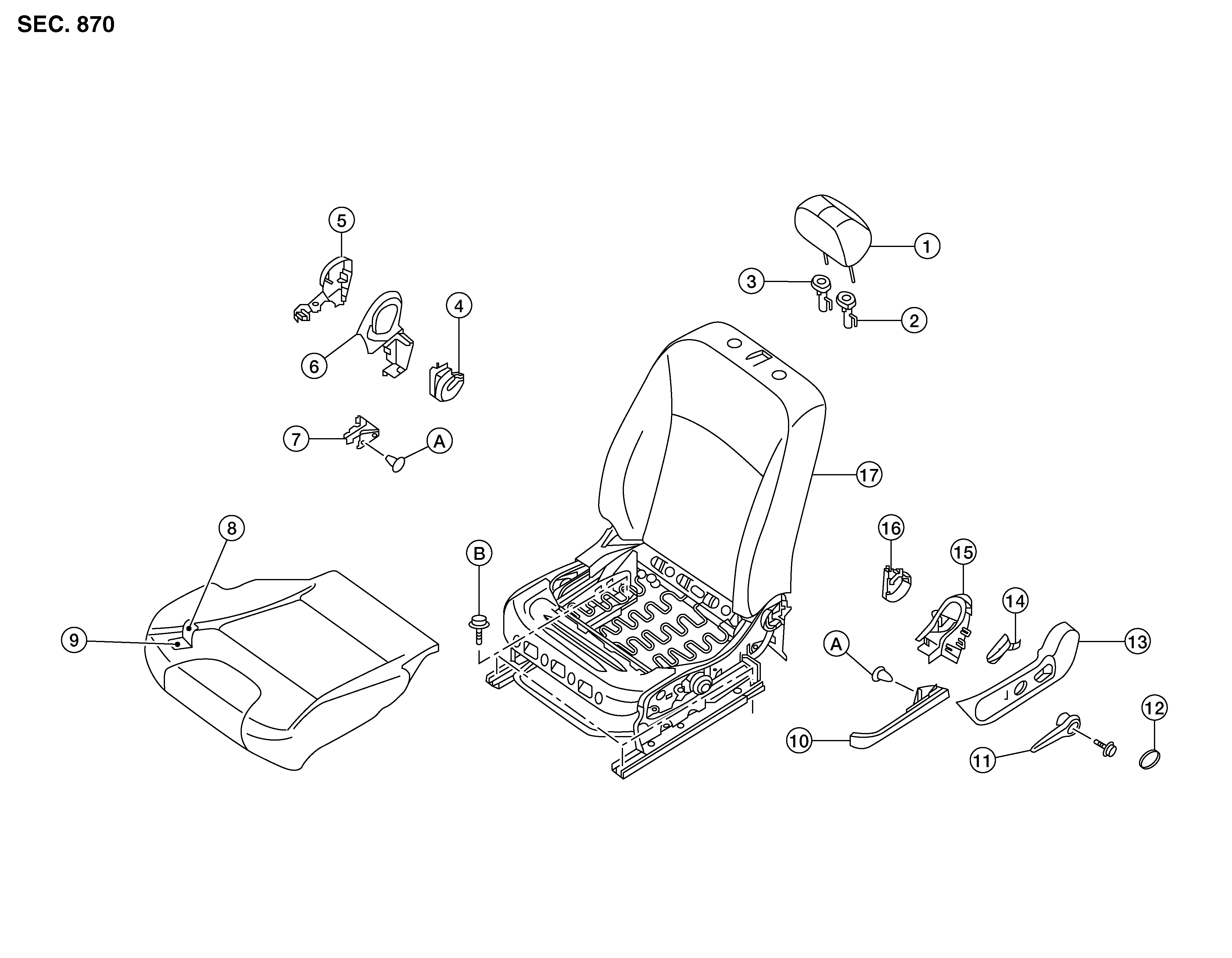

Fig 2: MANUAL SEAT

GNSALJIA2123Z-123

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Headrest holder (locked)	3.	Headrest holder (free)
4.	Recline mechanism cover (RH)	5.	Seat cushion outer finisher (RH)	6.	Seat cushion inner finisher (RH)
7.	Slide cover (RH)	8.	Seat cushion trim	9.	Seat cushion pad
10.	Slide cover (LH)	11.	Lift lever	12.	Lift lever finisher
13.	Seat cushion outer finisher (LH)	14.	Recline lever	15.	Seat cushion inner finisher (LH)
16.	Recline mechanism cover (LH)	17.	Seat assembly	A.	Clip
B.	Refer to ASSEMBLY.
