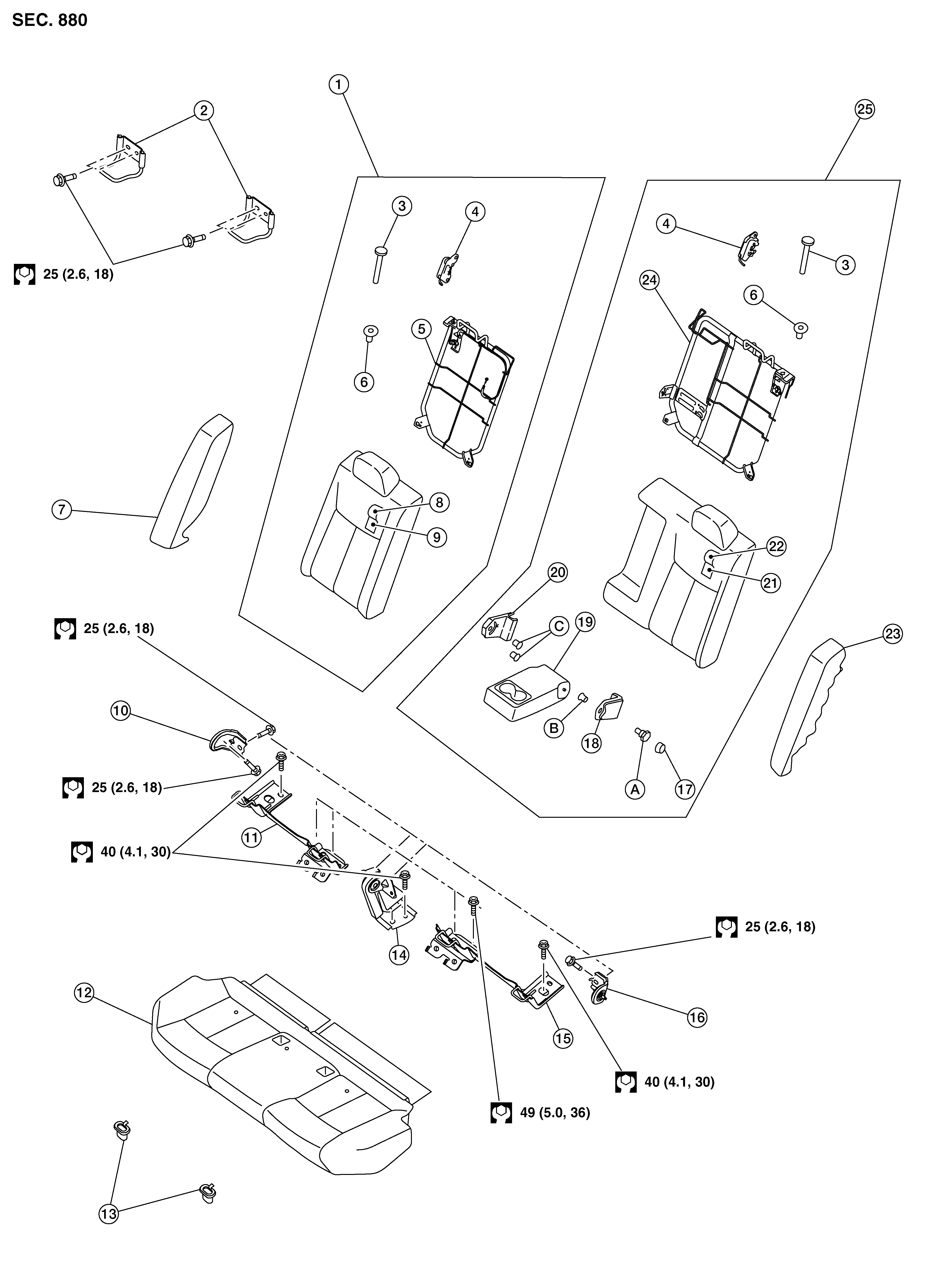

Exploded View

1.

Rear seatback assembly (RH)

2.

Seatback striker

3.

Seatback latch release knob

4.

Seatback latch assembly

5.

Rear seatback frame (RH)

6.

Seatback latch release knob finisher

7.

Rear seat bolster (RH)

8.

Seatback trim (RH)

9.

Seatback pad (RH)

10.

Seatback hinge bracket (RH)

11.

LATCH bracket (RH)

12.

Seat cushion assembly

13.

Seat cushion hook

14.

Seatback hinge bracket (center)

15.

LATCH bracket (LH)

16.

Seatback hinge bracket (LH)

17.

Armrest pivot bolt finisher (if equipped)

18.

Armrest hinge bracket (if equipped)

19.

Armrest assembly (if equipped)

20.

Armrest hinge finisher (if equipped)

21.

Seatback pad (LH)

22.

Seatback trim (LH)

23.

Rear seat bolster (LH)

24.

Rear seatback frame (LH)

25.

Rear seatback assembly (LH)

A.

Armrest pivot bolt (if equipped)

B.

Armrest bushing [LH (if equipped)]

C.

Armrest bushing [RH (if equipped)]
