Exploded View

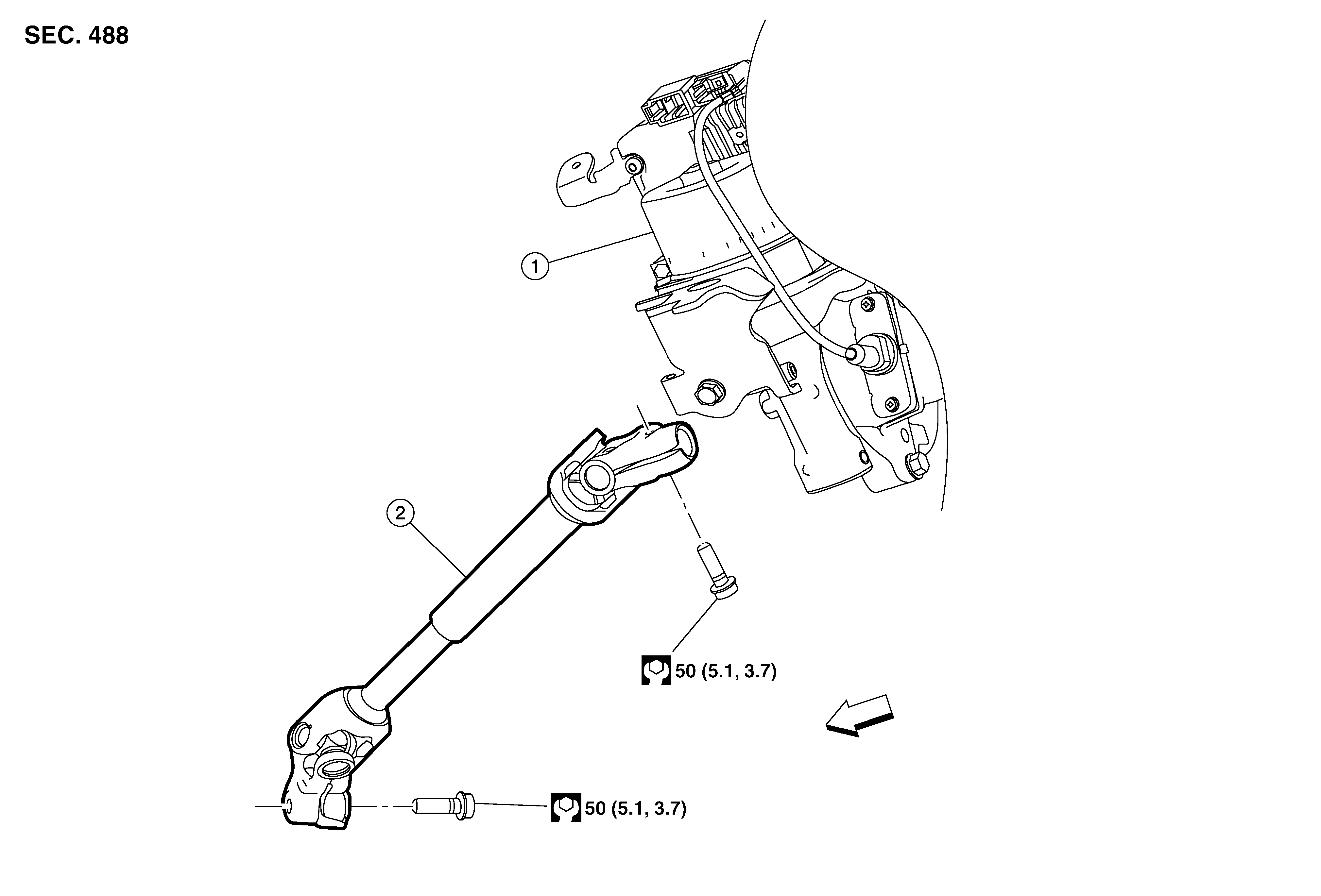

Fig 1: Lower Joint 1.8L With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Lower joint
Front

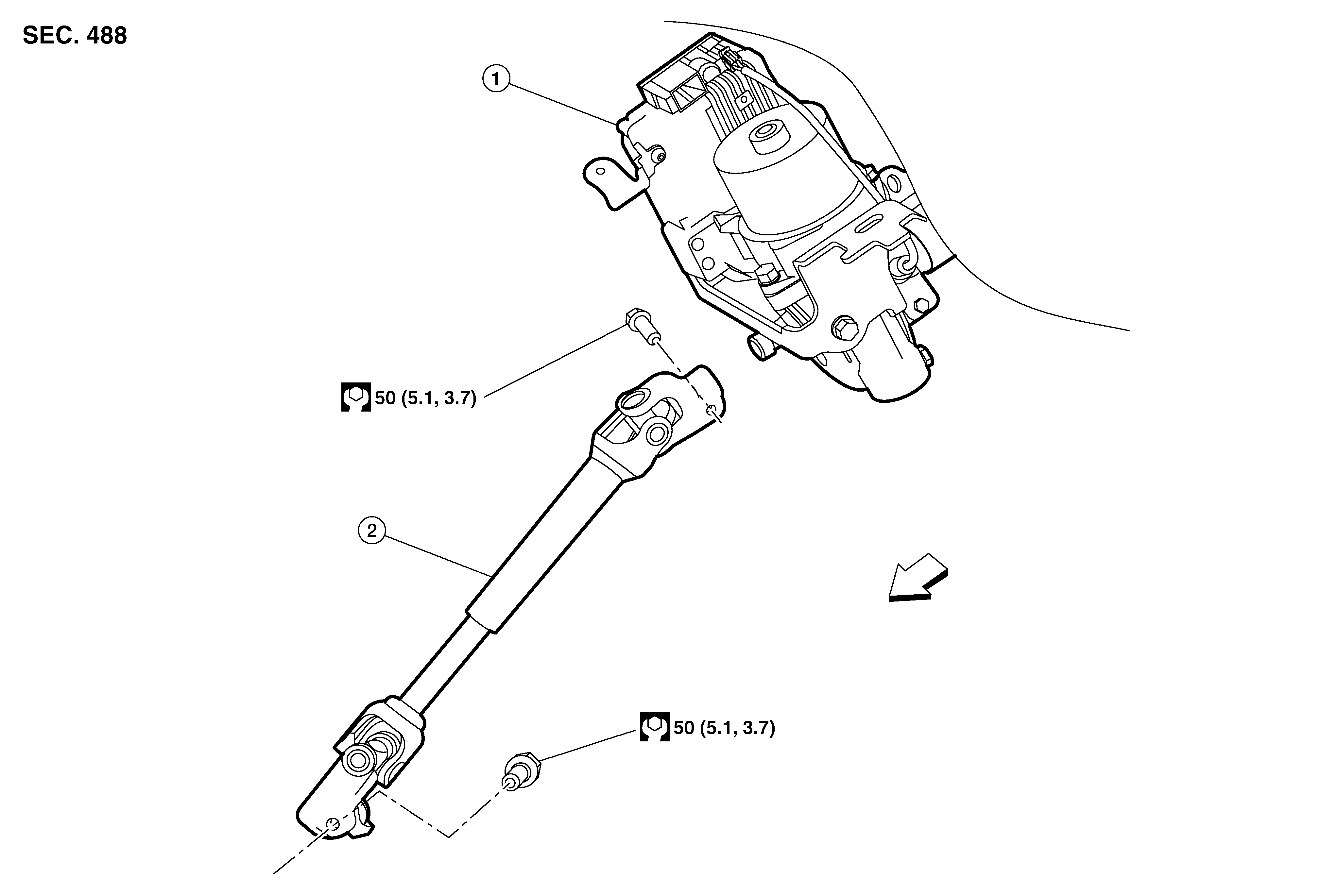

Fig 2: Lower Joint 1.6L With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column
2.
Lower joint
Front
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
