Exploded View

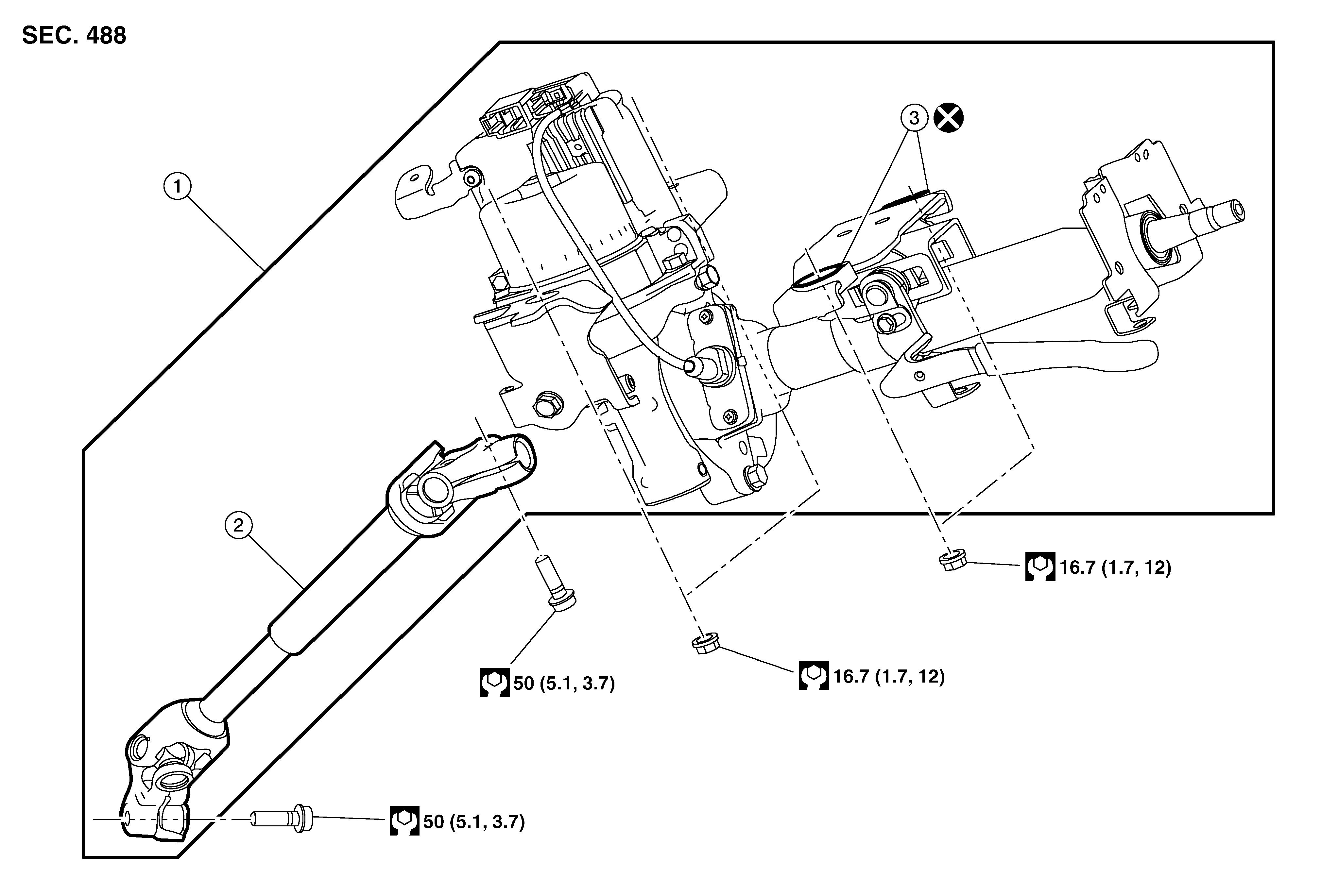

Fig 1: Steering Column 1.8L With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column assembly
2.
Lower joint
3.
Slide plates

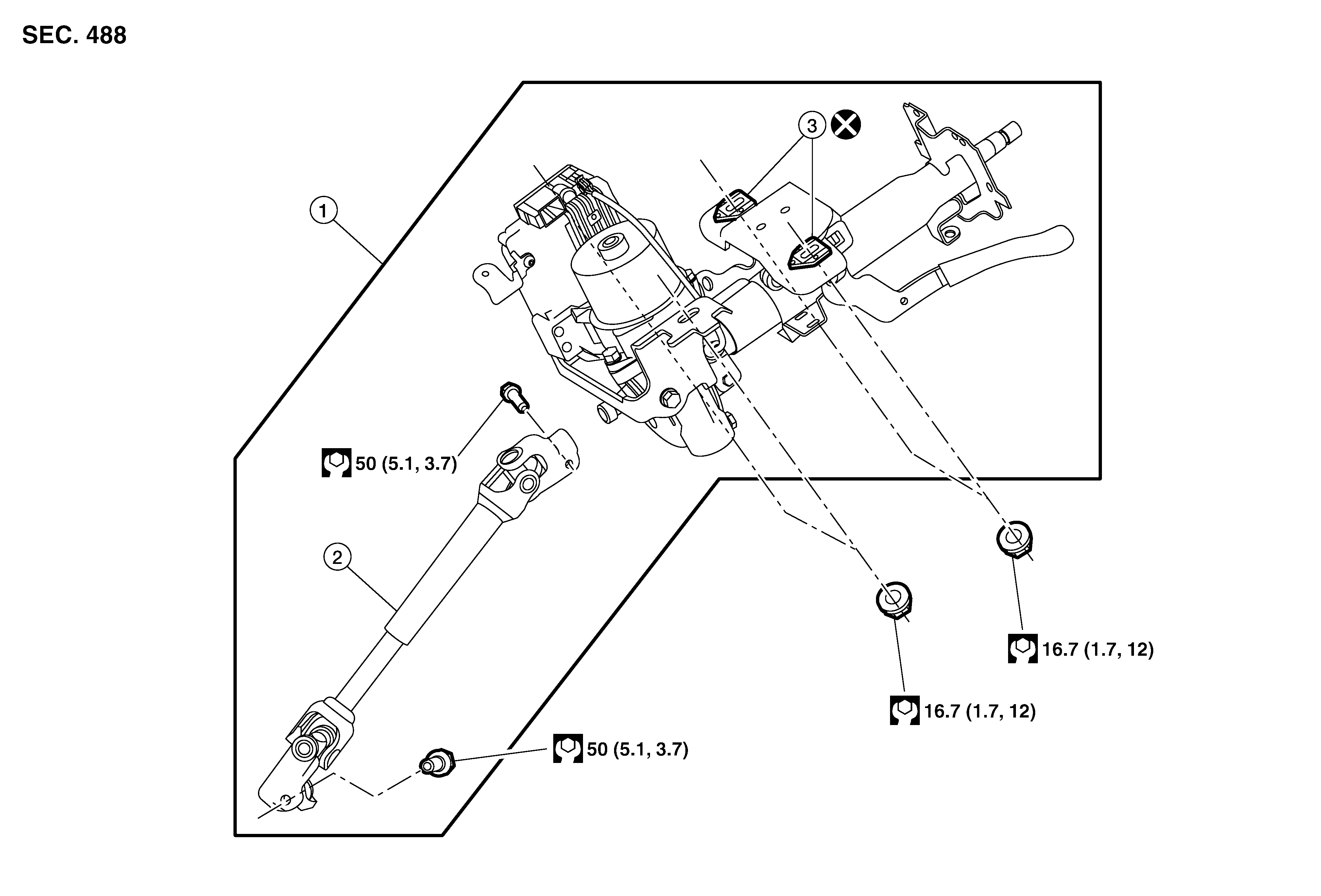

Fig 2: Steering Column 1.6L With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Steering column assembly
2.
Lower joint
3.
Slide plates
