Method Of Starting

  1. Turn the ignition ON.
  2. Turn the audio system OFF.

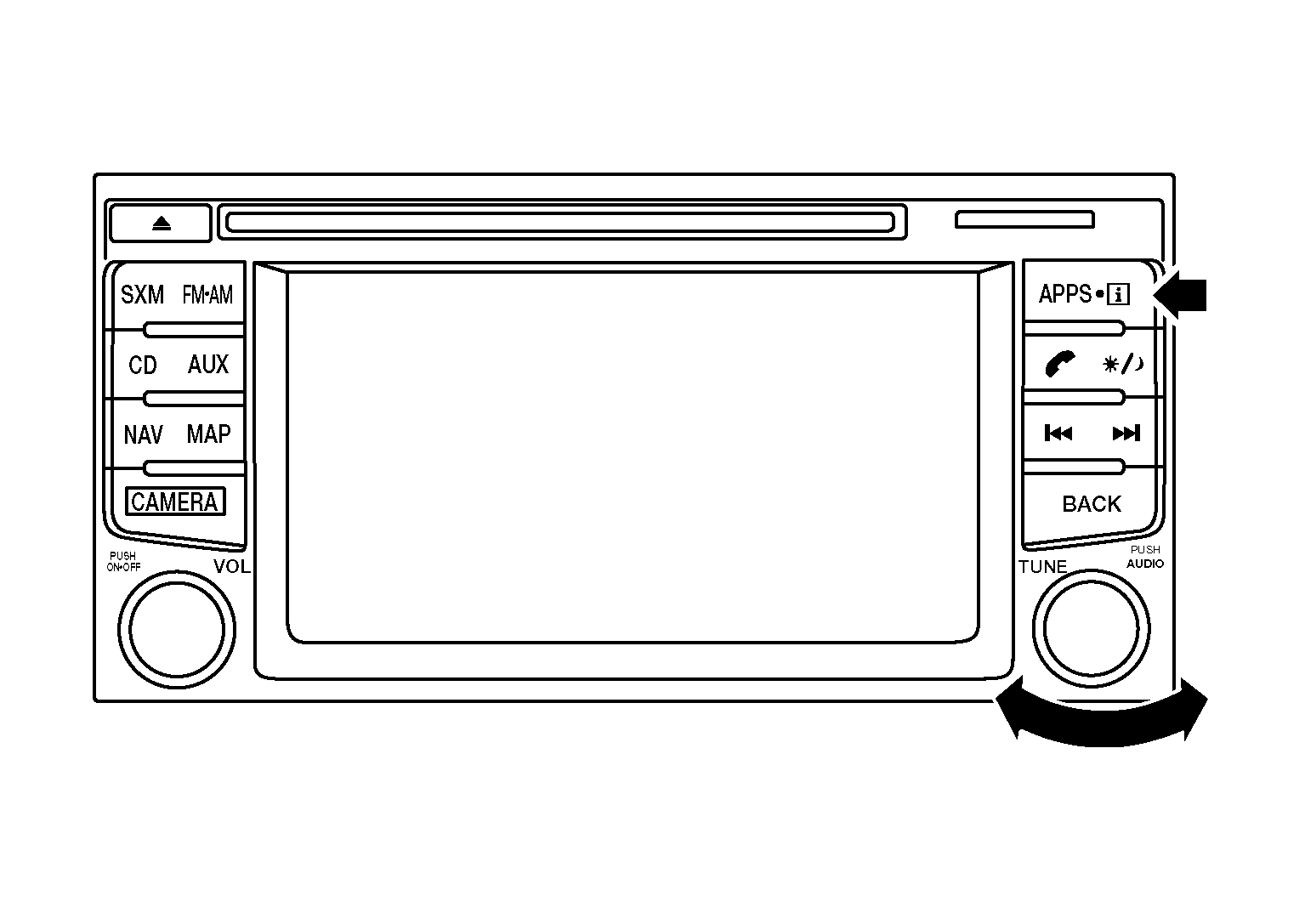

  3. While pressing the APPS button, turn the TUNE dial counterclockwise 5 or more clicks, then clockwise 5 or more clicks, then counterclockwise 5 or more clicks. Shifting from current screen to previous screen is performed by pressing BACK button.
    GNSAWNIA3744Z-744Courtesy of NISSAN NORTH AMERICA, INC.

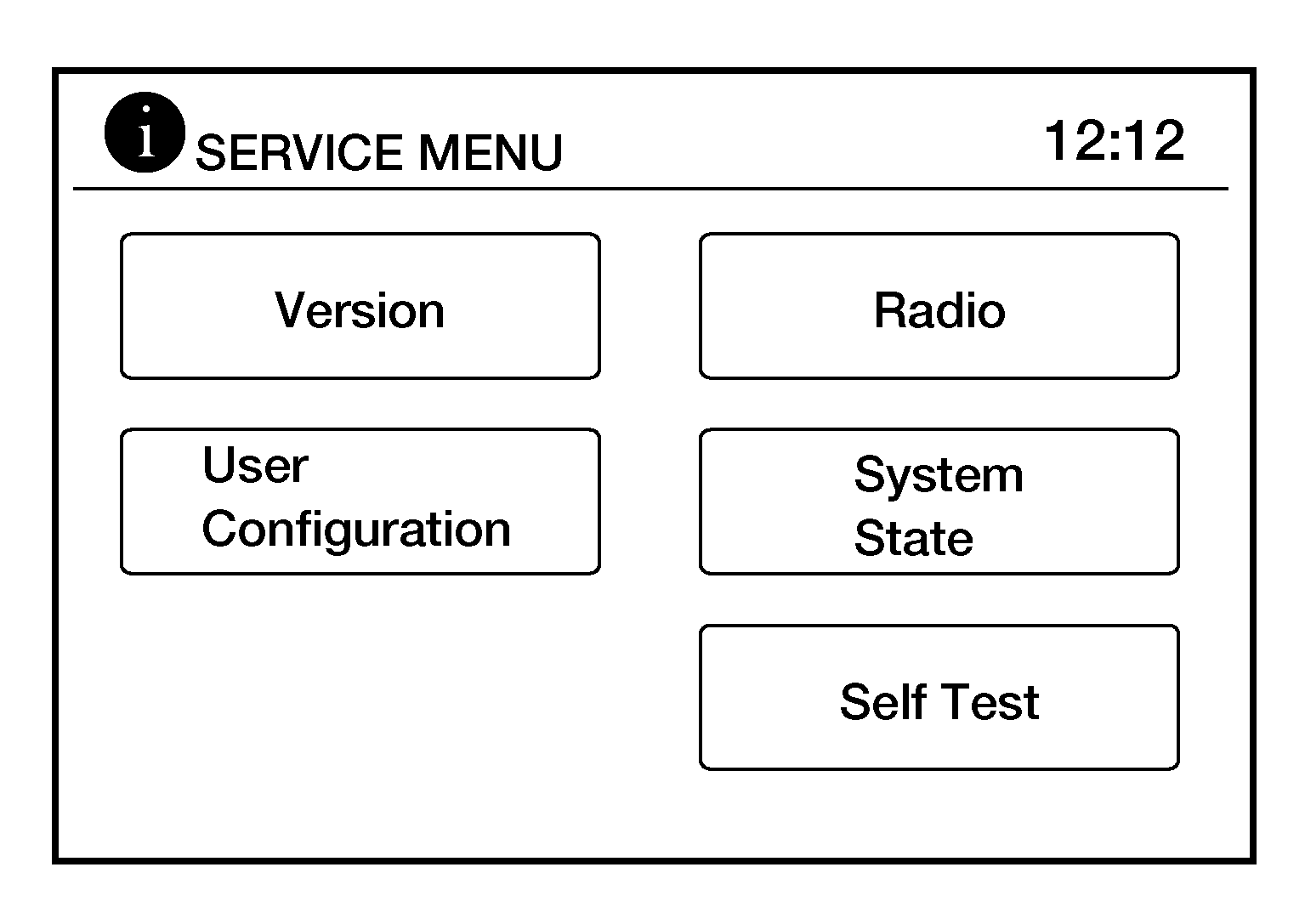

  4. The trouble diagnosis initial screen is displayed, and Version, User Configuration, Radio, System State or Self Test can be selected.
    GNSAWNIA3745Z-745Courtesy of NISSAN NORTH AMERICA, INC.
