Exploded View

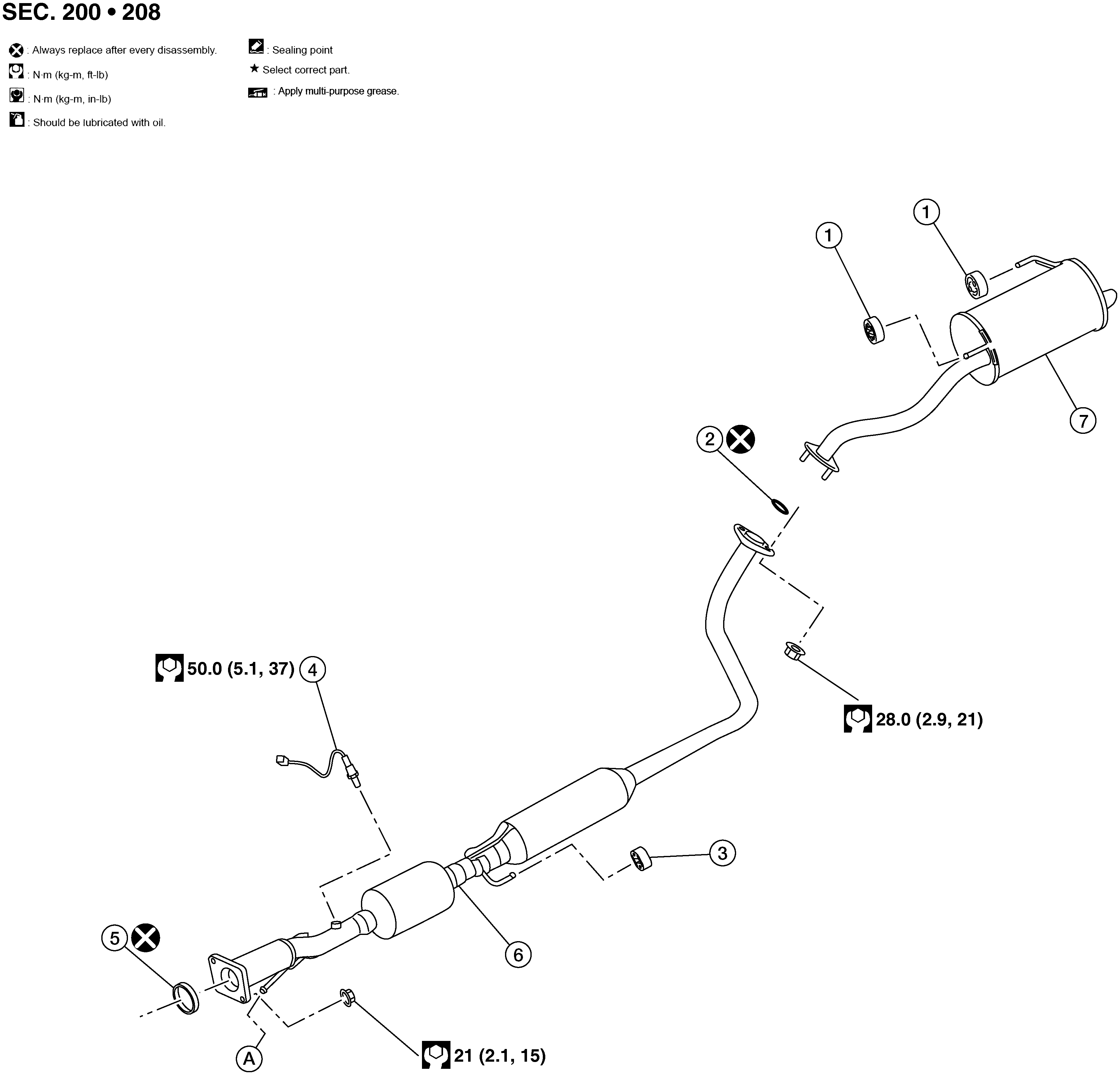

Fig 1: Exhaust System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Mounting rubber	2.	Ring gasket	3.	Mounting rubber
4.	Heated oxygen sensor 2	5.	Seal bearing	6.	Exhaust tube assembly front
7.	Main muffler	A.	To exhaust mounting bracket in FSU. Refer to Exploded View .
