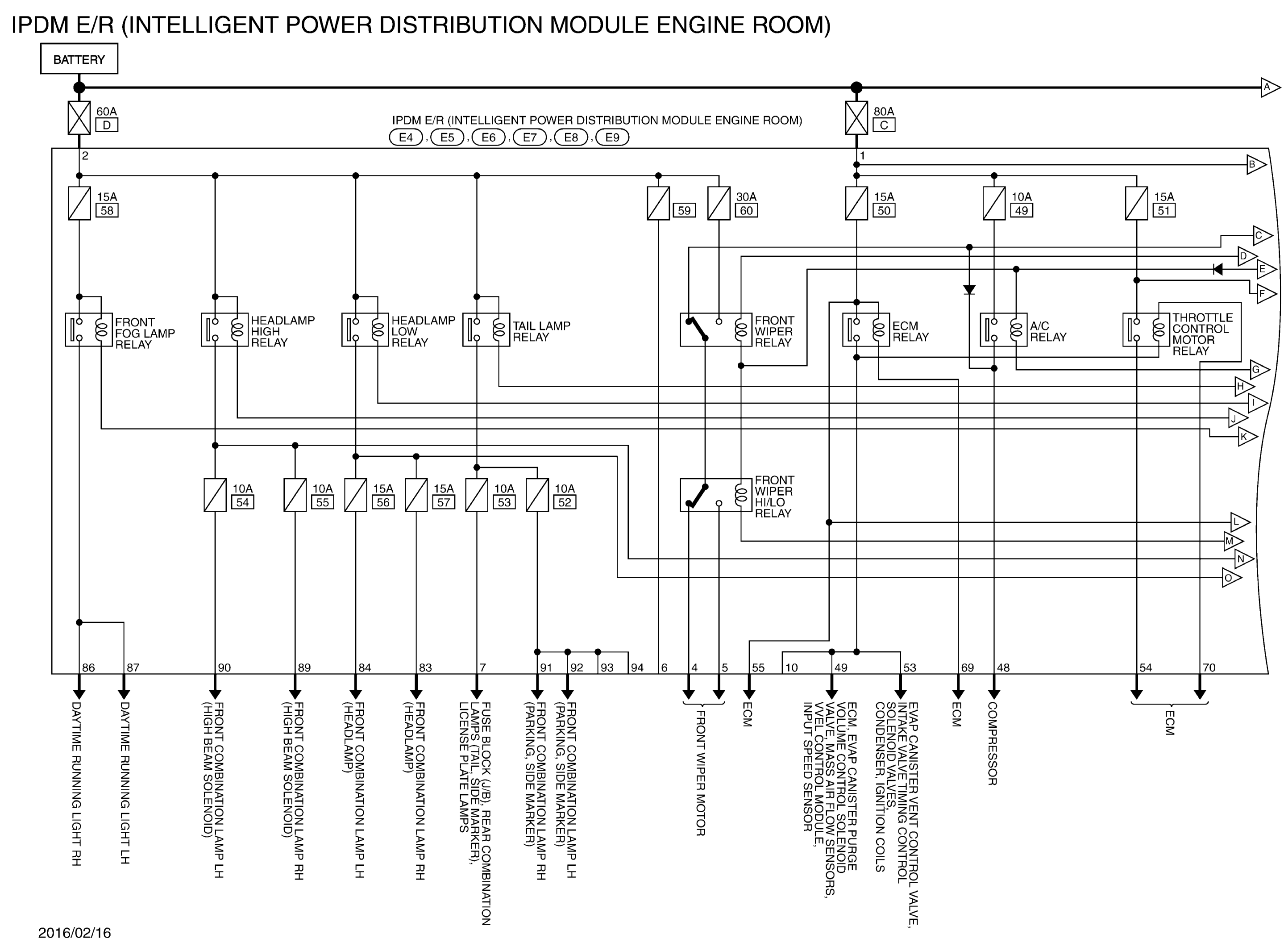

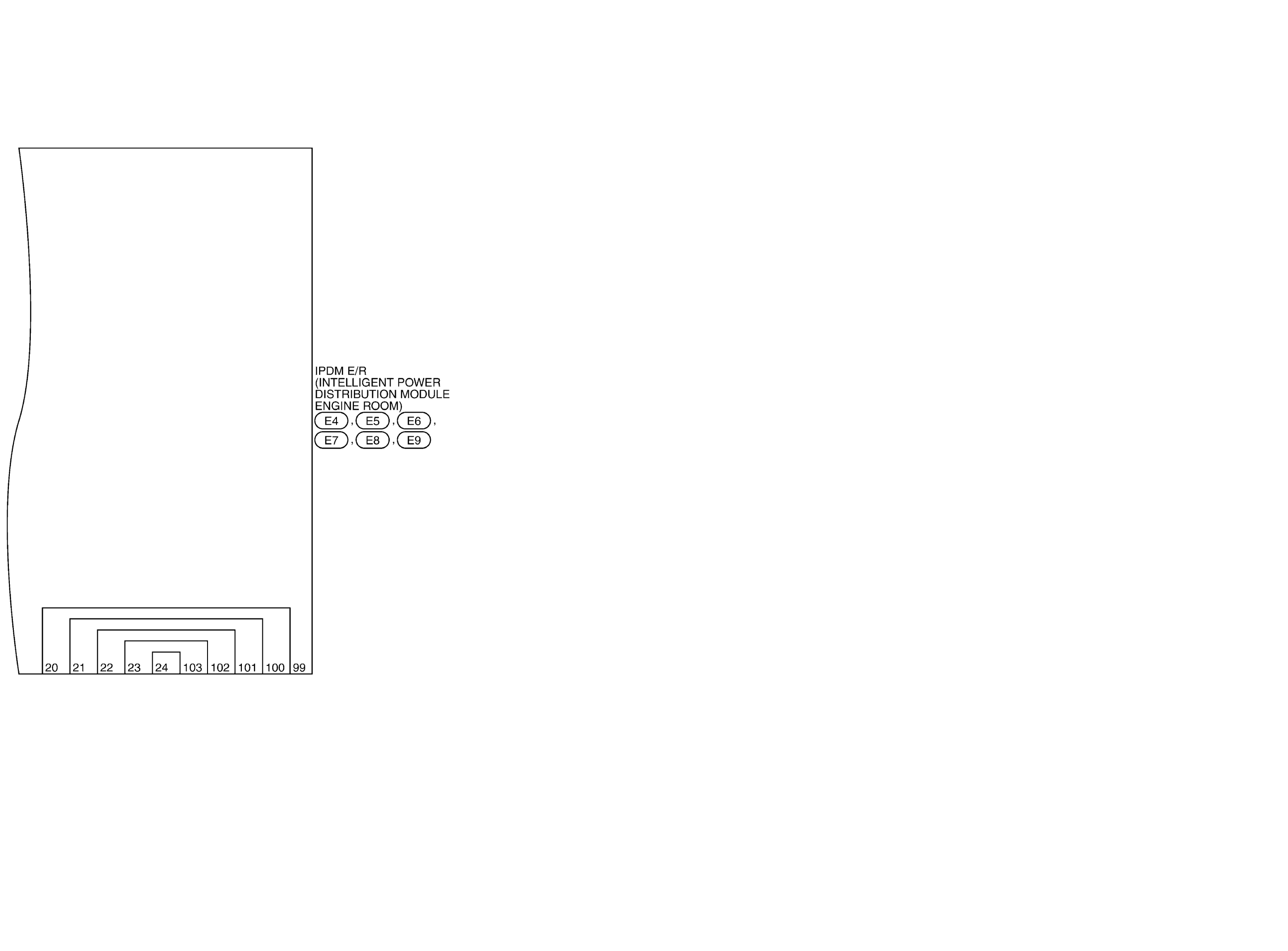

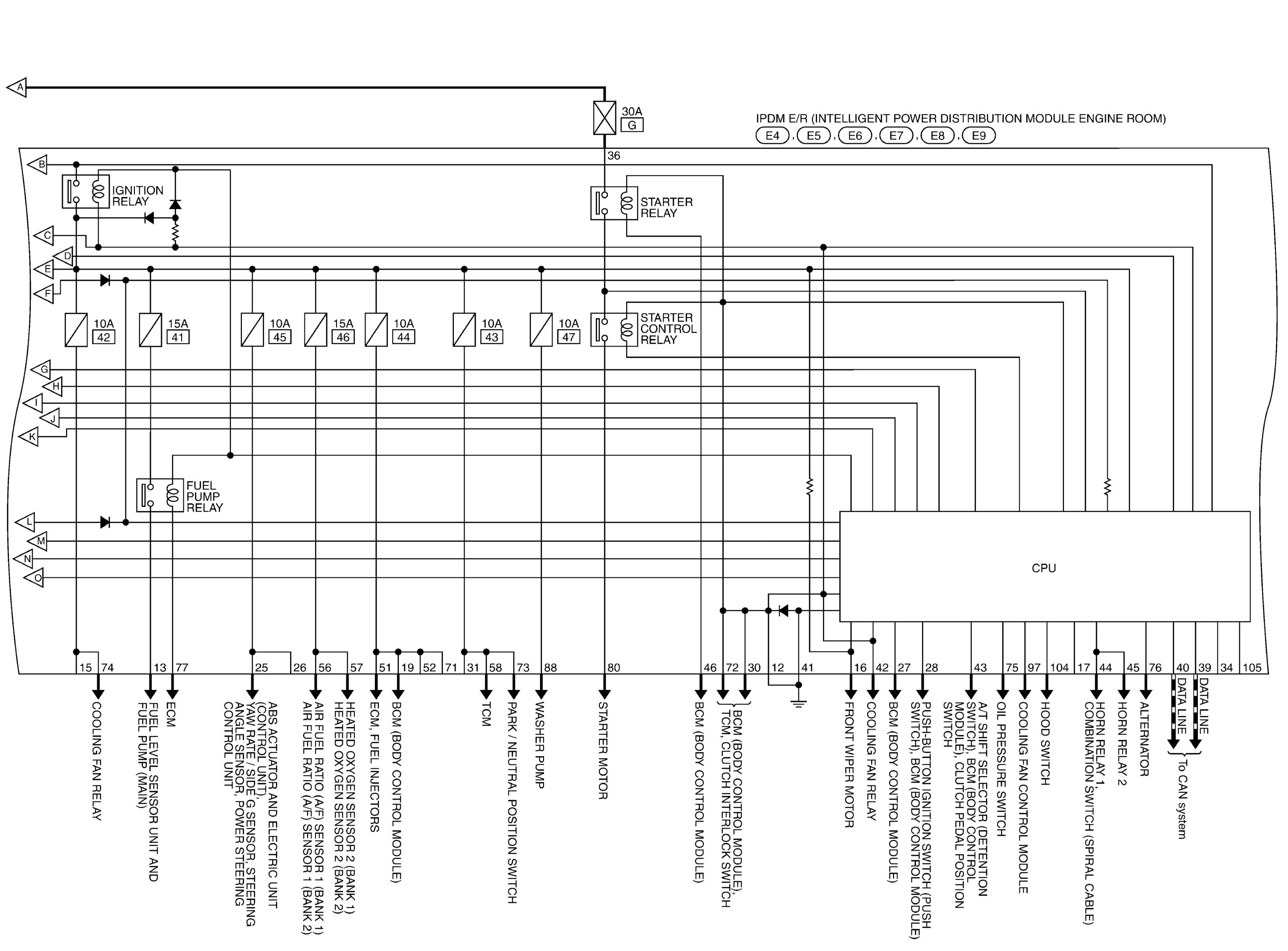

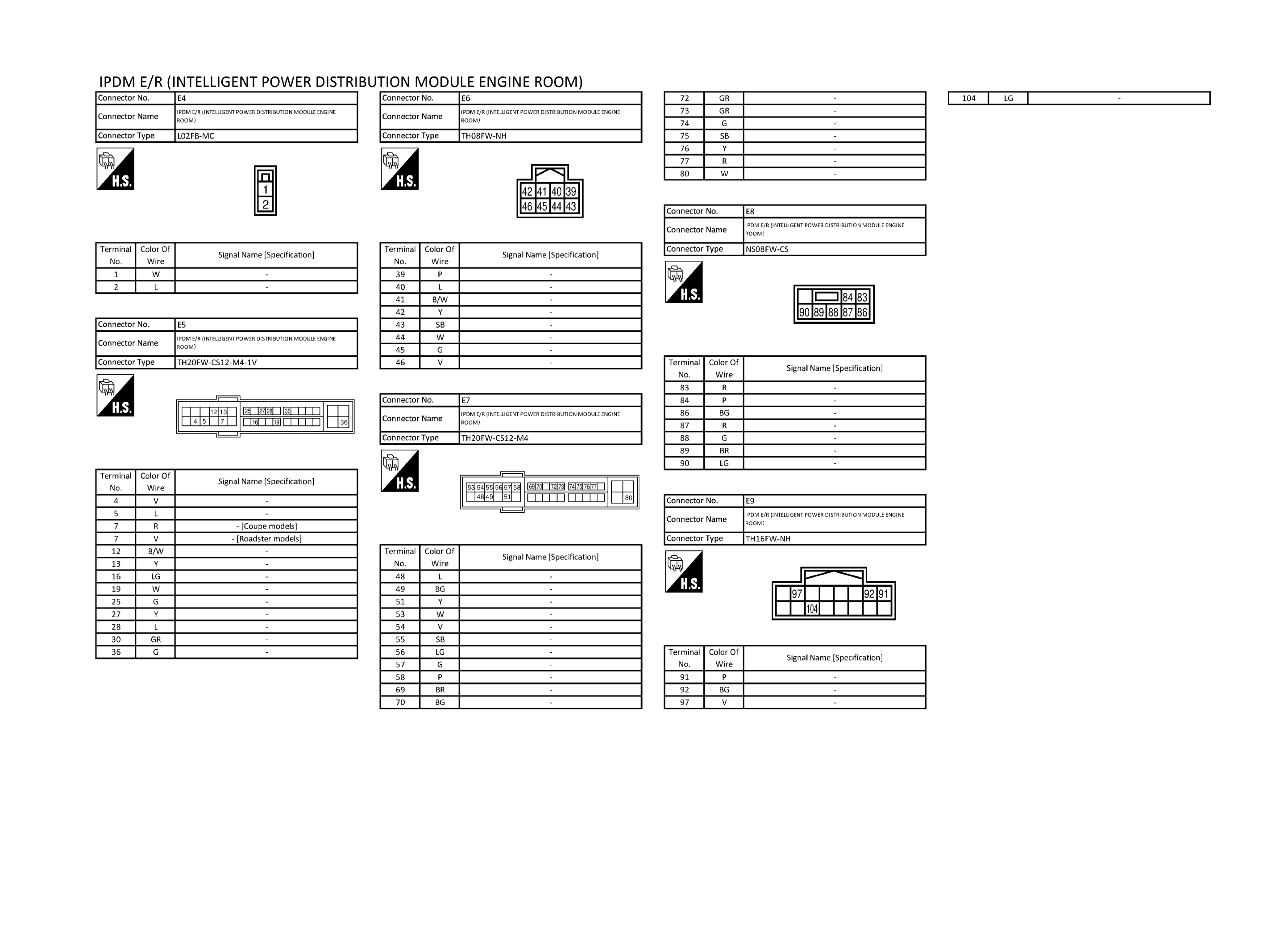

Wiring Diagram - IPDM E/R -
WARNING:
This page is about a different car, the 2017 Nissan 370Z and 2016 Nissan 370Z. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
