PR25DD engine

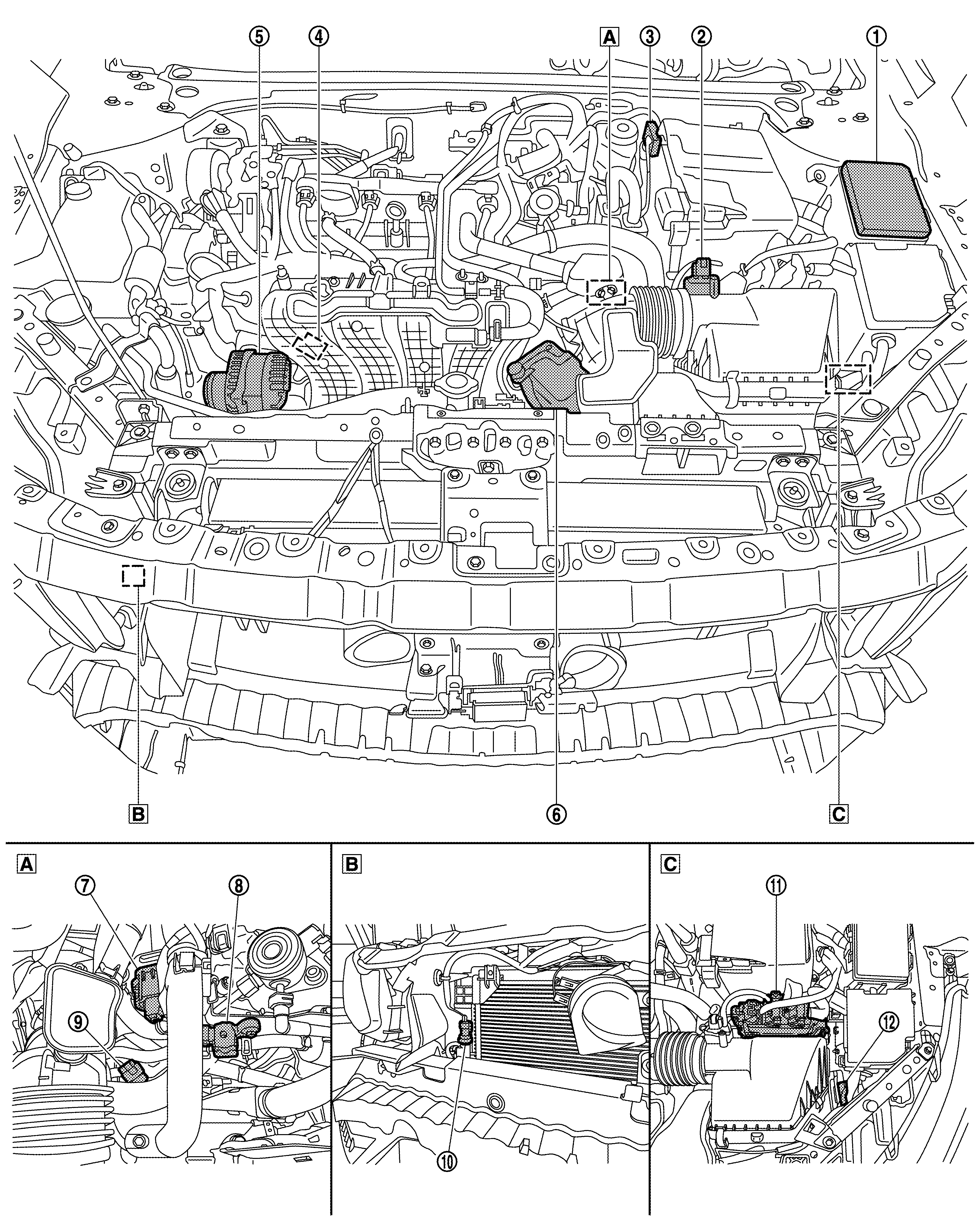

ENGINE ROOM COMPARTMENT
|
|
Left center of engine compartment |
|
Right front of vehicle |
|
Left front of engine compartment |
|
|
IPDM E/R |
|
Mass air flow sensor (with intake air temperature sensor) |
|
Battery current sensor (with battery temperature sensor) |
|
|
Manifold absolute pressure (MAP) sensor |
|
Generator |
|
Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
|
|
Intake manifold runner control valve actuator |
|
EVAP canister purge volume control solenoid valve |
|
Transmission range switch |
|
|
Refrigerant pressure sensor
|
|
ECM |
|
Electric intake valve timing control module |

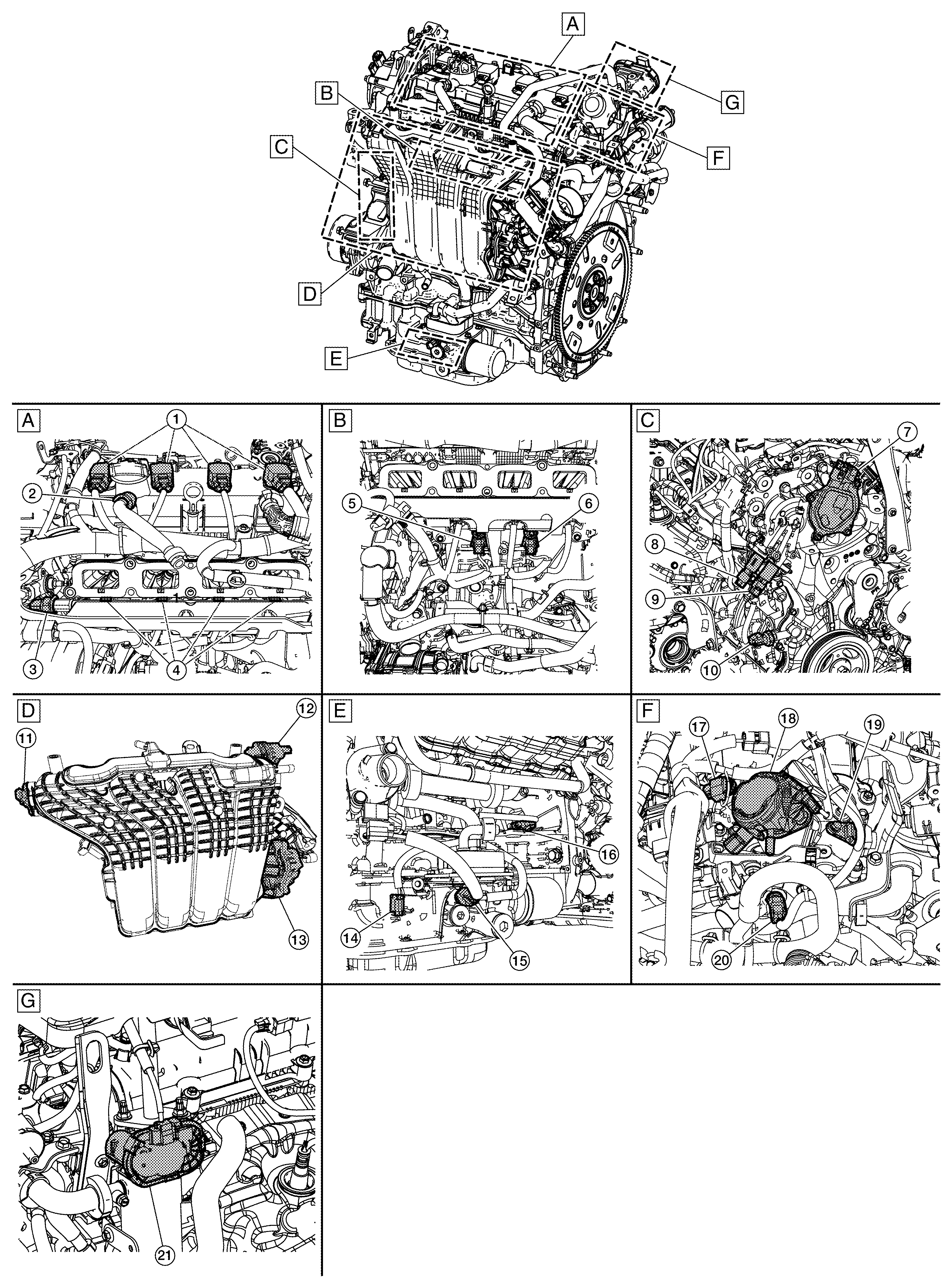

ENGINE COMPARTMENT
|
|
Top of engine |
|
Top front of engine |
|
Right side of engine |
|
|
Air intake |
|
Lower front of engine |
|
Left side of engine |
|
|
Rear of engine |
||||
|
|
Ignition coil (with power transistor) |
|
PCV valve |
|
Fuel rail pressure sensor |
|
|
Fuel injector |
|
Knock sensor 1 |
|
Knock sensor 2 |
|
|
Electric intake valve timing control actuator |
|
Exhaust valve timing intermediate lock control solenoid valve |
|
Exhaust valve timing control solenoid valve |
|
|
Engine oil pressure sensor |
|
Intake manifold runner control valve position sensor |
|
Intake manifold runner control valve actuator |
|
|
Intake manifold tuning valve |
|
Engine oil pressure control solenoid valve |
|
Engine oil temperature sensor |
|
|
Crankshaft position sensor |
|
Intake camshaft position sensor |
|
High pressure fuel pump |
|
|
Exhaust camshaft position sensor |
|
Engine coolant temperature sensor |
|
EGR volume control valve |

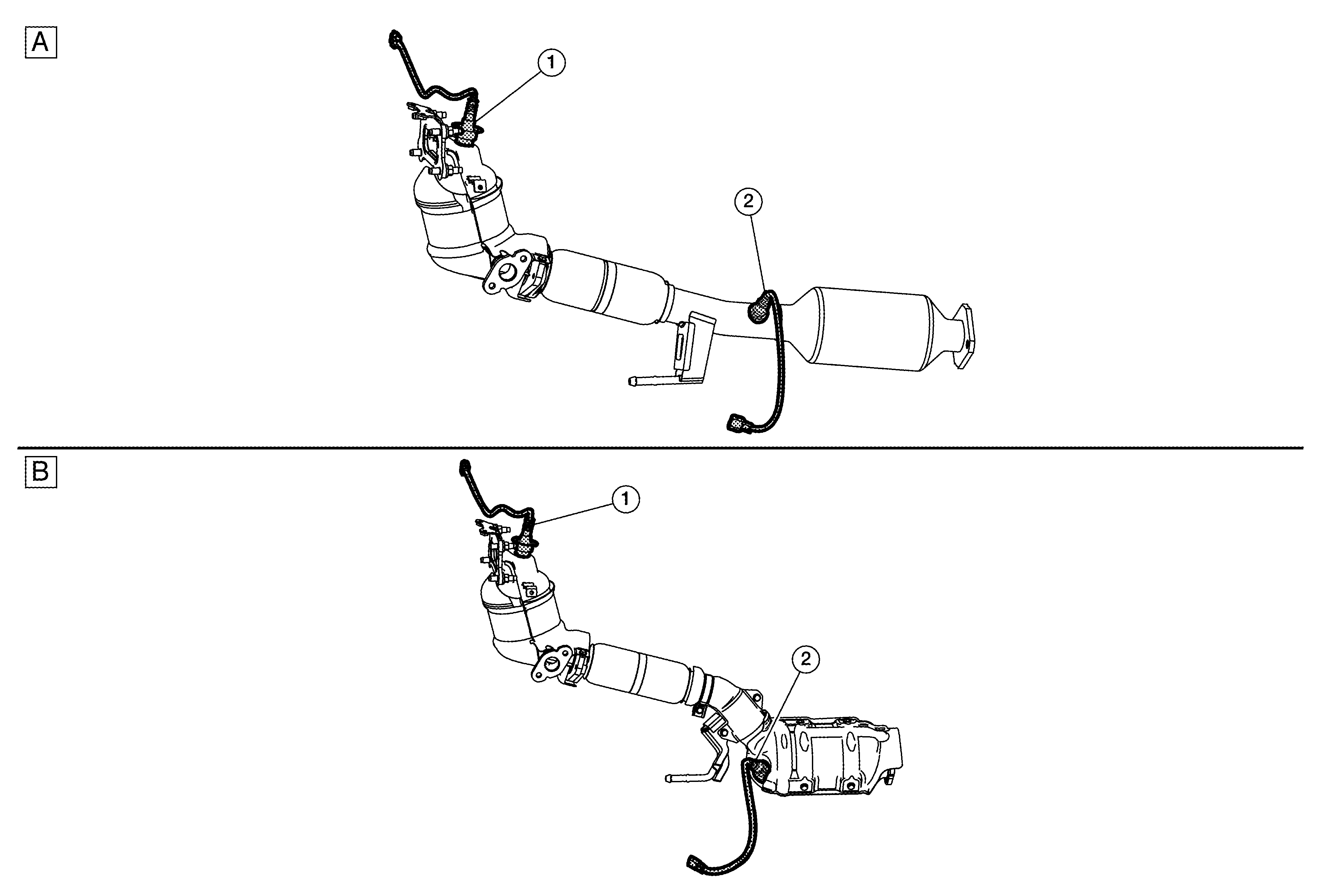

EXHAUST COMPARTMENT
|
|
FWD |
AWD |
|
|
|
Air fuel ratio (A/F) sensor 1 |
|
Heated oxygen sensor 2 |

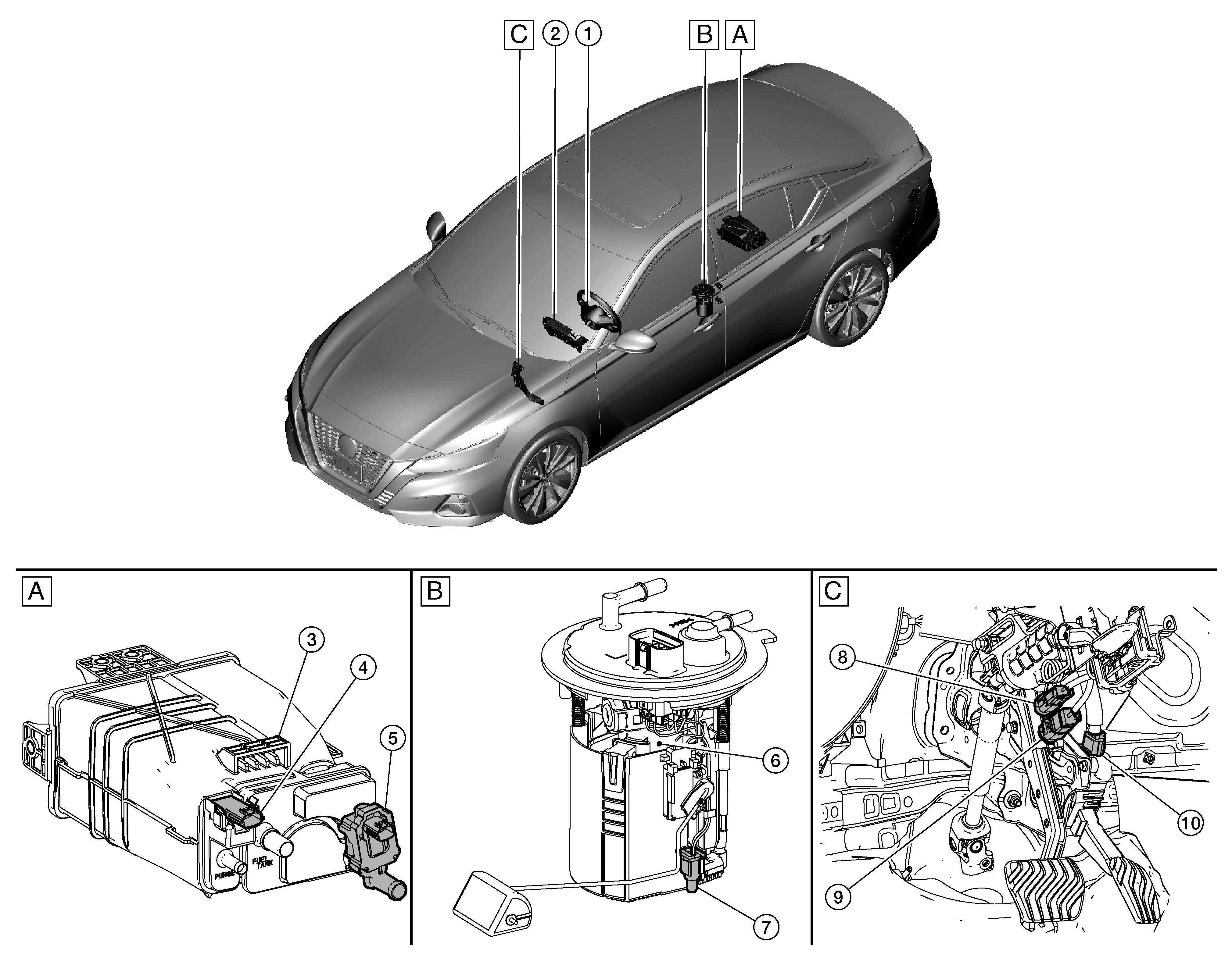

BODY COMPARTMENT
|
|
Rear of fuel tank area |
|
Inside fuel tank area |
|
Pedal periphery area |
|
|
ASCD/ICC steering switch |
|
Combination meter [Malfunction indicator lamp (MIL), Information display] |
|
EVAP canister |
|
|
EVAP control system pressure sensor |
|
EVAP canister vent control valve |
|
Fuel level sensor unit and fuel pump |
|
|
Fuel tank temperature sensor |
|
Brake pedal position switch |
|
Stop lamp switch |
|
|
Accelerator pedal position sensor |
