Voluntary Service Campaign Engine Control Module (NTB20-021A)
Reference number: NTB20-021A
Supersedes refnos: NTB20-021
VOLUNTARY SERVICE CAMPAIGN ENGINE CONTROL MODULE
SERVICE CAMPAIGN BULLETIN
| NISSAN: | 2019 Armada; 2019-2020 GT-R; 2019-2020 GT-R NISMO; 2019-2020 NV200; 2019 NV200 Taxi; 2019 NV Cargo and Passenger; 2019 Sentra; 2019 Titan; 2019 Titan XD |
| CLASSIFICATION: | EC20-006a |
| CAMPAIGN ID #: | PC734, PM940, P0A05 |
| APPLIED VEHICLES: | 2019 Armada (Y62); 2019-2020 GT-R (R35); 2019-2020 GT-R NISMO (R35); 2019-2020 NV200 (M20); 2019 NV200 Taxi (M20T); 2019 NV Cargo and Passenger (F80); 2019 Sentra (B17); 2019 Titan (A61); 2019 Titan XD (A61) |
APPLIED VEHICLES
2019 Armada (Y62)
2019-2020 GT-R (R35)
2019-2020 GT-R NISMO (R35)
2019-2020 NV200 (M20)
2019 NV200 Taxi (M20T)
2019 NV Cargo and Passenger (F80)
2019 Sentra (B17)
2019 Titan (A61)
2019 Titan XD (A61)
Check Service COMM or Dealer Business Systems (DBS) National Service History to confirm campaign eligibility.
INTRODUCTION
Nissan is conducting this voluntary service campaign on certain specific model year 2019 Armada, 2019-2020 GT-R, 2019-2020 GT-R NISMO, 2019-2020 NV200, 2019 NV200 Taxi, 2019 NV Cargo and Passenger, 2019 Sentra, and 2019 Titan and Titan XD vehicles. The Engine Control Module (ECM) will be inspected, and reprogrammed if it applies. This service will be performed at no charge to the customer for parts or labor.
IDENTIFICATION NUMBER
Nissan has assigned identification numbers PC734, PM940, and P0A05 to this campaign. This number must appear on all communication and documentation of any nature dealing with this campaign.
DEALER RESPONSIBILITY
Dealers are to repair vehicles falling within range of this campaign that enter the service department. This includes vehicles purchased from private parties, vehicles presented by transient (tourists) owners, and vehicles in a dealer's inventory.

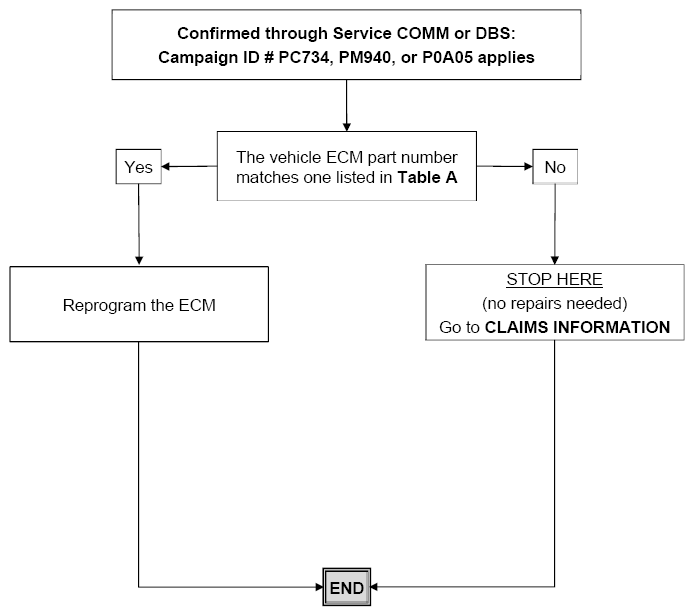

REPAIR OVERVIEW
SERVICE PROCEDURE
- Using C-III plus, confirm the current ECM part number and write it on the repair order.
- If it matches one of the part numbers in Table A, below, proceed to step 2 on the next page.
- If there is not a match, no repair is needed. Go to CLAIMS INFORMATION on the last page.
TABLE AMODEL YEAR CURRENT ECM PART NUMBER 23710- Armada 2019 6JD0B, 6JD0C, 6JD0E, 6JD1B, 6JD1C, 6JD1E GT-R 2019 6HP3A, 6HP3B, 6HS0A, 6HS0B 2020 6HT2B, 6HT3B GT-R NISMO 2019 6HR6A, 6HR6B 2020 45S1A NV200 2019 9SL0A, 9SL0B, 9SL0C, 9SL1A, 9SL1B, 9SL1C 9SL4A 2020 9SM0B, 9SM1B NV200 Taxi 2019 9SL4A NV Cargo 2019 9JL2A, 9JL2B, 9JL2C, 9JL2D 9JL3A, 9JL3B, 9JL3C, 9JL3D NV Passenger 2019 9JL0A, 9JL0B, 9JL0C, 9JL0D 9JL1A, 9JL1B, 9JL1C, 9JL1D Sentra 2019 9AR2A, 9AR2B, 9AR3A, 9AR3B, 9AR4A, 9AR4B 9AR5A, 9AR5B, 9AR6A, 9AR6B, 9AR7A, 9AR7B 9AR8A, 9AR8B Titan and Titan XD 2019 9FU1B, 9FU1C, 9FU1D, 9FU3B, 9FU3C, 9FU3D EZ61B, EZ61C, EZ61D, EZ63B, EZ63C, EZ63D
REPROGRAM THE ECM
- ASIST on the CONSULT PC has been synchronized (updated) to the current date.
- All CONSULT-III plus (C-III plus) software updates (if any) have been installed.
- The CONSULT PC is connected to the Internet (Wi-Fi or cable).
- If you are not familiar with the reprogramming procedure, click here. This will link you to the "CONSULT-III plus (C-III plus) ECM Reprogramming" general procedure.
- Connect a battery maintainer or smart charger to the 12V battery. If the vehicle battery voltage drops below 12.0V or above 15.5V during reprogramming, the ECM may be damaged.
- Be sure to turn OFF all vehicle electrical loads. If a vehicle electrical load remains ON, the ECM may be damaged .
- Be sure to connect the AC Adapter. If the CONSULT PC battery voltage drops during reprogramming, the process will be interrupted and the ECM may be damaged .
- Turn OFF all external Bluetooth® devices (e.g., cell phones, printers, etc.) within range of the CONSULT PC and the plus VI. If Bluetooth® signal waves are within range of the CONSULT PC or the plus VI during reprogramming, reprogramming may be interrupted and the ECM may be damaged .
- 2. Reprogram the ECM.
- 3. After completing Erase ALL DTCs, print a copy of the C-III plus screen showing the before and after part numbers of the control unit and attach it to the repair order.
ECM Recovery
Do not disconnect the plus VI or shut down C-III plus if reprogramming does not complete .

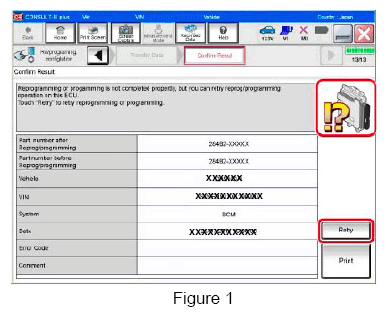

If reprogramming does not complete and the "!?" icon displays as shown in Figure 1:
- Check battery voltage (12.0 - 15.5 V).
- Ignition is ON, engine OFF.
- External Bluetooth® devices are OFF.
- All electrical loads are OFF.
- Select retry and follow the on screen instructions.
- "Retry" may not go through on first attempt and can be selected more than once .

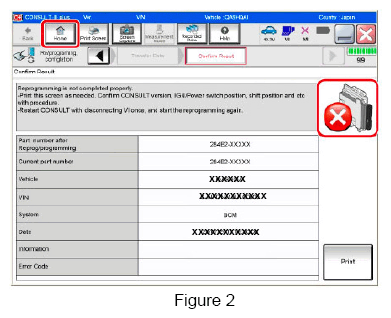

If reprogramming does not complete and the "X" icon displays as shown in Figure 2:
- Check battery voltage (12.0 - 15.5 V).
- CONSULT A/C adapter is plugged in.
- Ignition is ON, engine OFF.
- Transmission is in Park.
- All C-III plus/VI cables are securely connected.
- All C-III plus updates are installed.
- Select Home, and restart the reprogram procedure from the beginning.
CLAIMS INFORMATION
Submit a "CM" line claim using the following claims coding:
| CAMPAIGN ("CM") ID | MODEL | DESCRIPTION | OP CODE | FRT |
|---|---|---|---|---|
| PC734 | Titan, Titan XD, NV Cargo and Passenger | Reprogram Engine Control Module | PC7340 | 0.4 hrs |
| Titan, Titan XD, NV Cargo and Passenger | Reprogram Not Needed | PC7341 | 0.3 hrs | |
| PM940 | Sentra | Reprogram Engine Control Module | PM9400 | 0.4 hrs |
| NV200 and NV200 Taxi | PM9401 | 0.5 hrs | ||
| Sentra | Reprogram Not Needed | PM9404 | 0.3 hrs | |
| NV200 and NV200 Taxi | PM9405 | 0.3 hrs | ||
| P0A05 | Armada | Reprogram Engine Control Module | P0A050 | 0.5 hrs |
| GT-R and GT-R NISMO | P0A051 | 0.6 hrs | ||
| Armada, GT-R, and GT-R NISMO | Reprogram Not Needed | P0A052 | 0.3 hrs |
AMENDMENT HISTORY
| PUBLISHED DATE | REFERENCE | DESCRIPTION |
|---|---|---|
| March 24, 2020 | NTB20-021 | Original bulletin published |
| April 23, 2020 | NTB20-021a | NV200 information in Table A revised |
