Exploded View

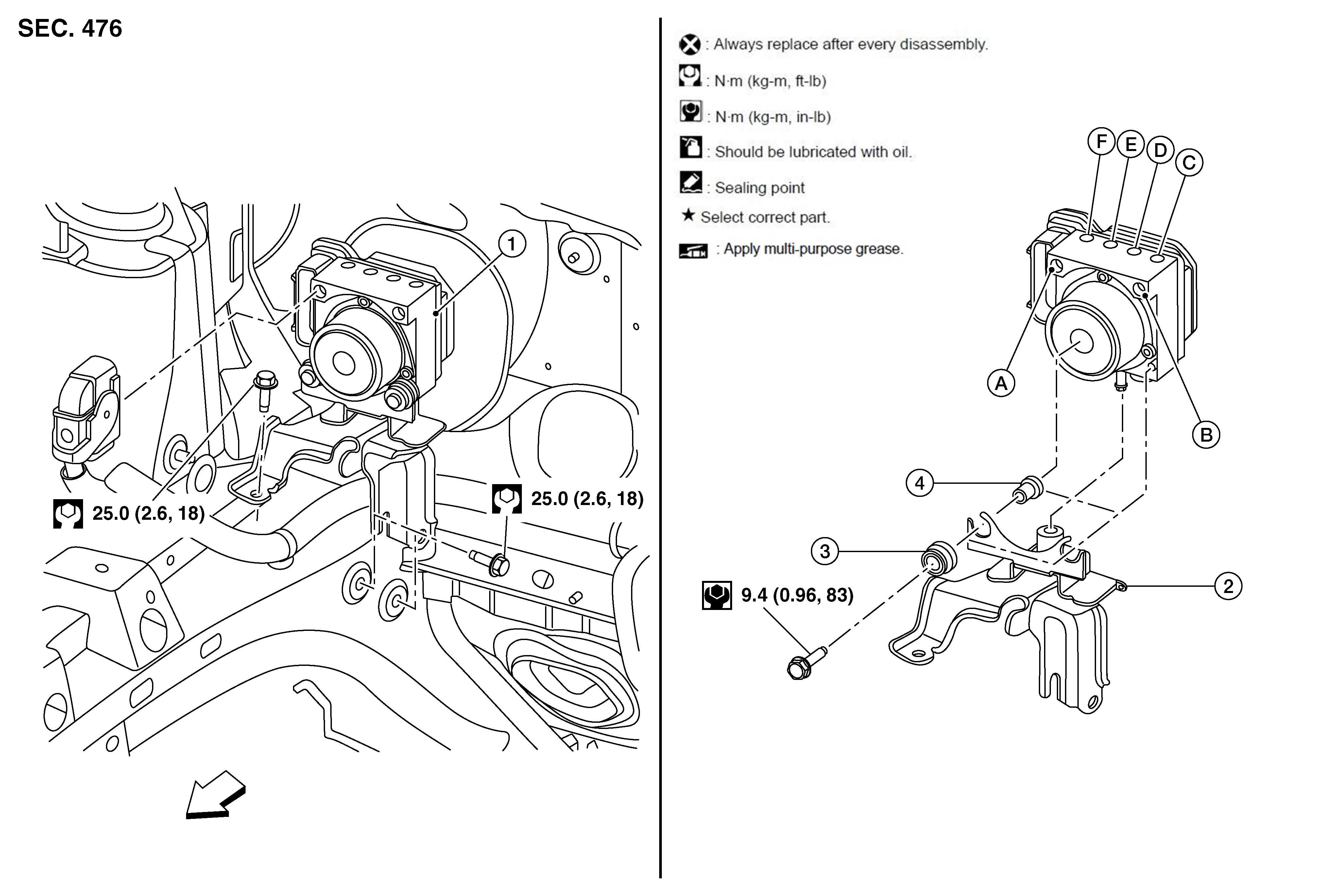

Fig 1: ABS Actuator And Electric Unit With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Bracket	3.	Bushing
4.	Grommet	A.	From master cylinder secondary side	B.	From master cylinder primary side
C.	To front LH brake caliper	D.	To rear RH brake wheel cylinder	E.	To rear LH brake wheel cylinder
F.	To front RH brake caliper	/>	Front
