Exploded View

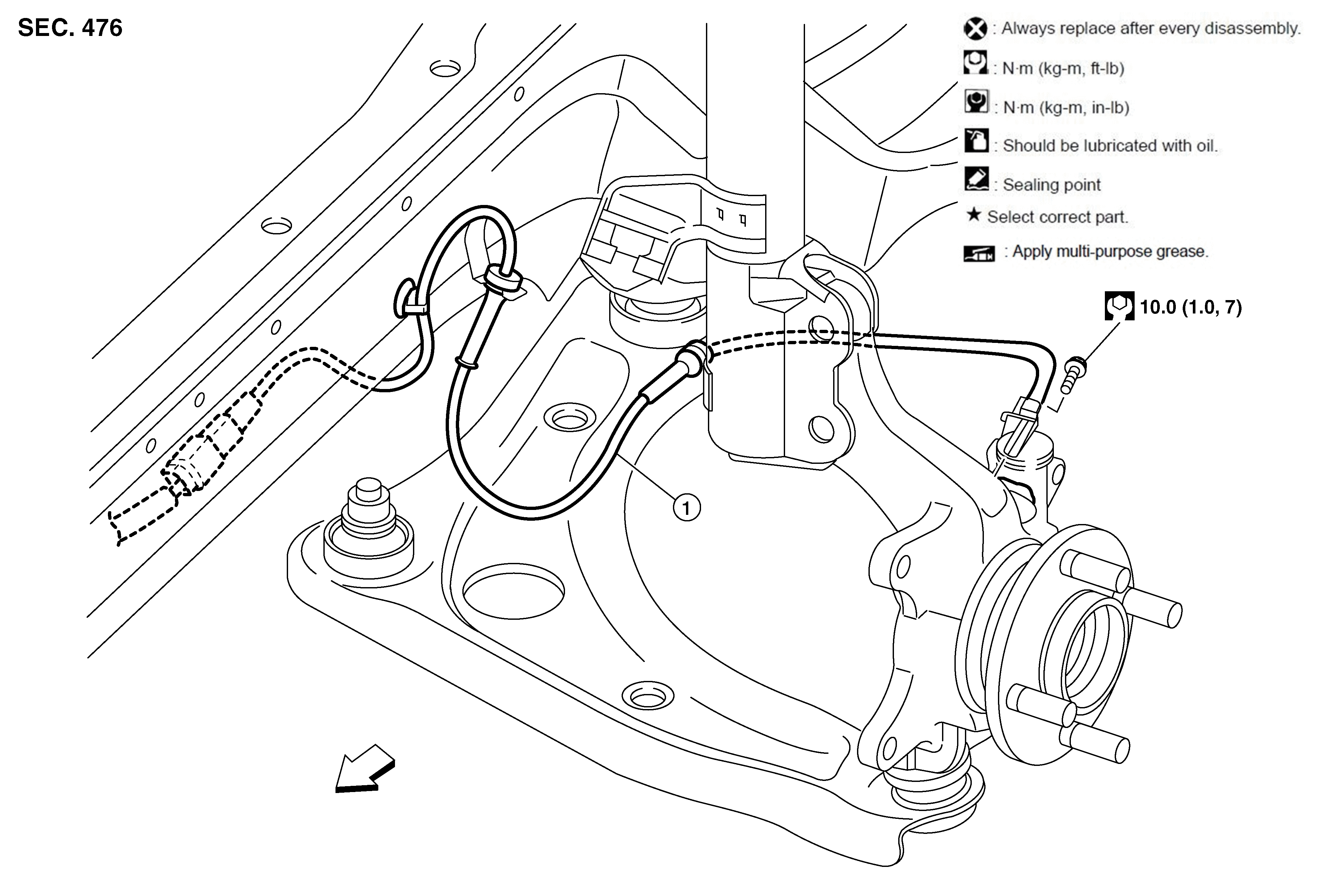

Fig 1: Exploded View Of Front Wheel Sensor With Torque Specifications
GNSAWFIA1264Z-264Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front LH wheel sensor

SYMBOL />

Front
