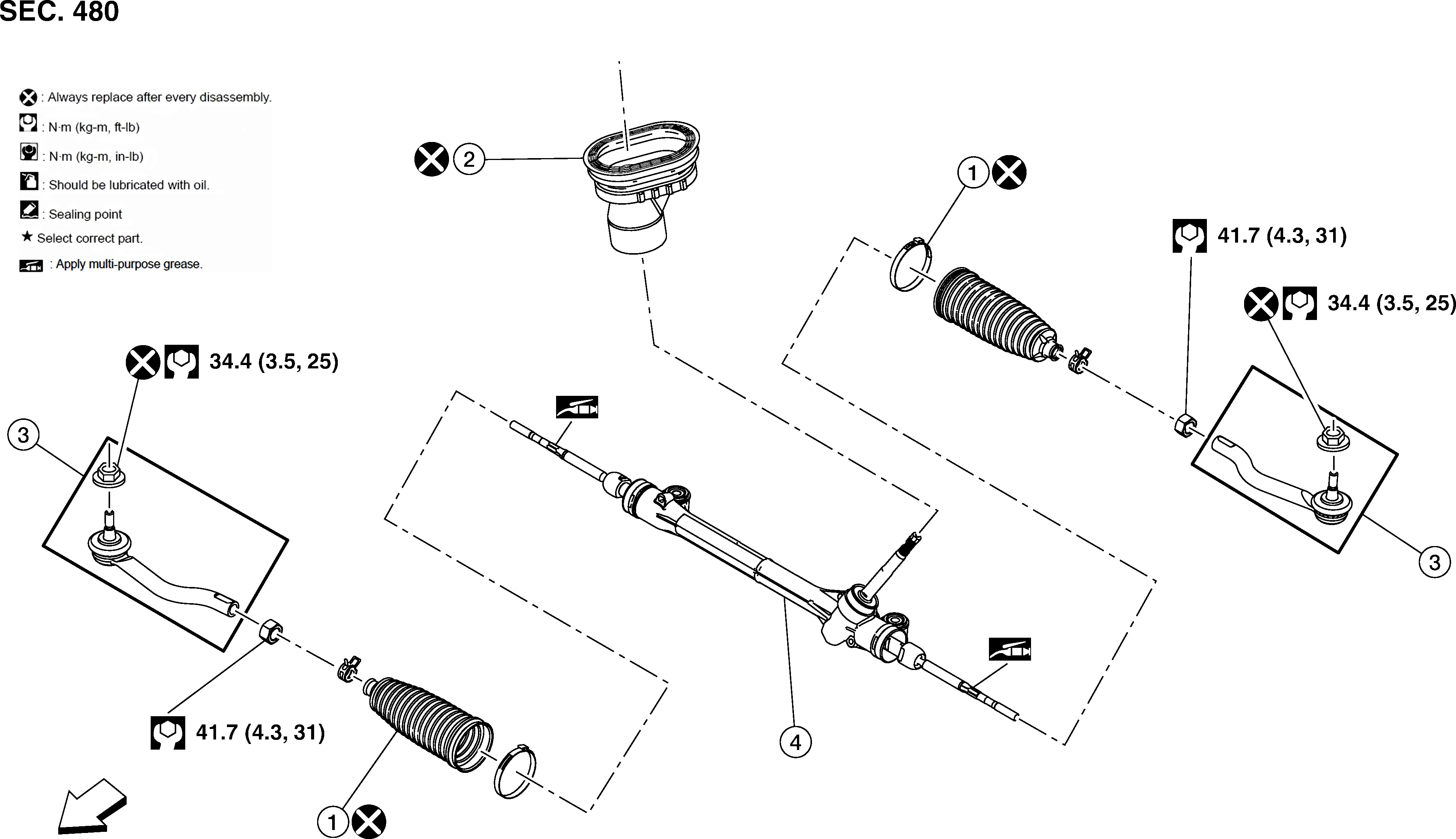

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Boot assembly
2.
Hole cover
3.
Outer socket
4.
Steering gear
/>
Front
Courtesy of NISSAN NORTH AMERICA, INC.
