Steering Column Length

Unit: mm (in)

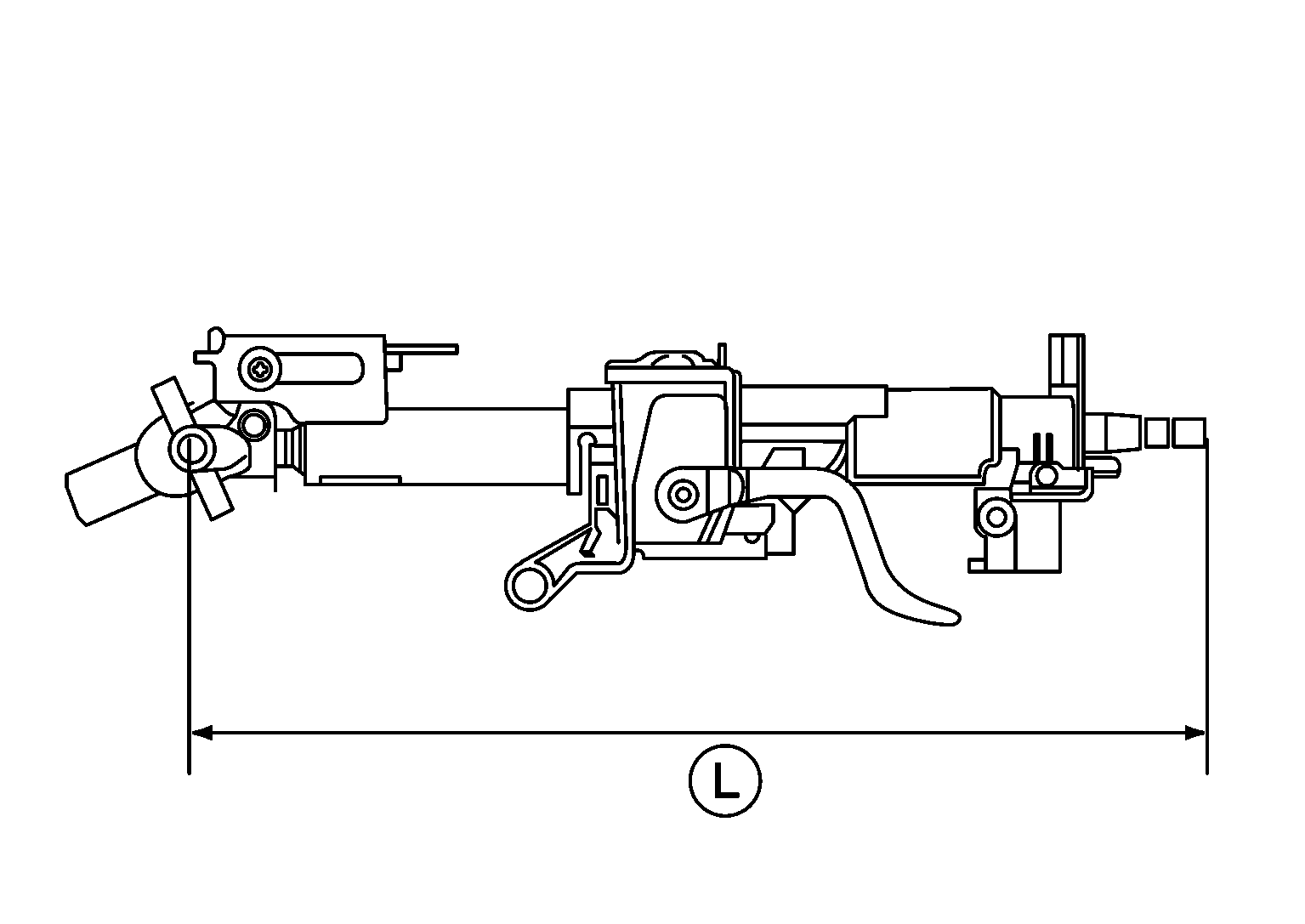

GNSALGIA0135Z-135Courtesy of NISSAN NORTH AMERICA, INC.

Steering column length

Length (L)

513 (20.2)

Telescopic maximum

543 (21.4)

Telescopic minimum

483 (19.0)
