Front Auxiliary Input Jacks Control Unit

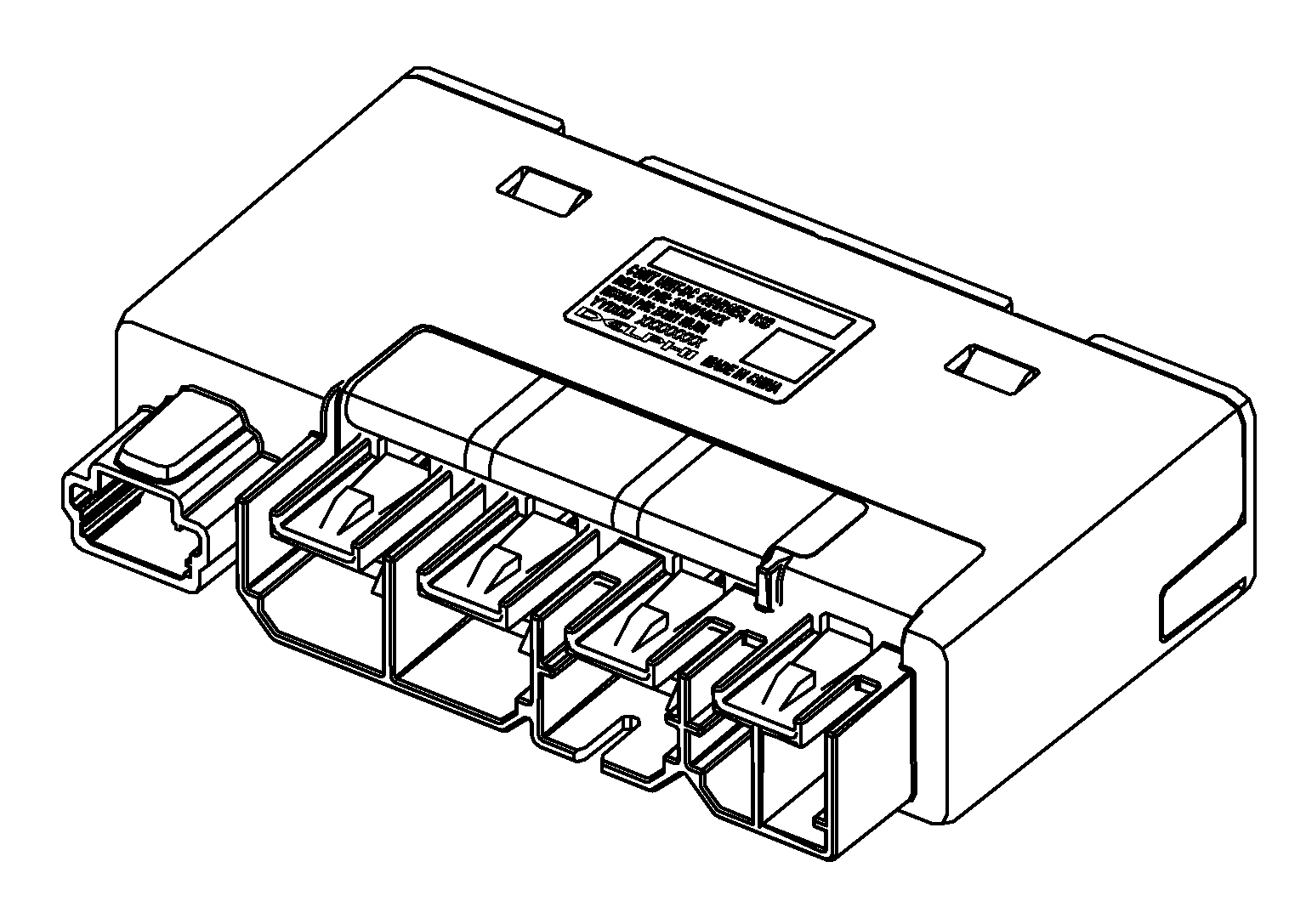

Front auxiliary input jacks control unit is installed behind the RH side of the AV control unit.
Courtesy of NISSAN NORTH AMERICA, INC.
The USB interface signals from the front auxiliary input jacks are transferred to the AV control unit.
Courtesy of NISSAN NORTH AMERICA, INC.
