Exploded View

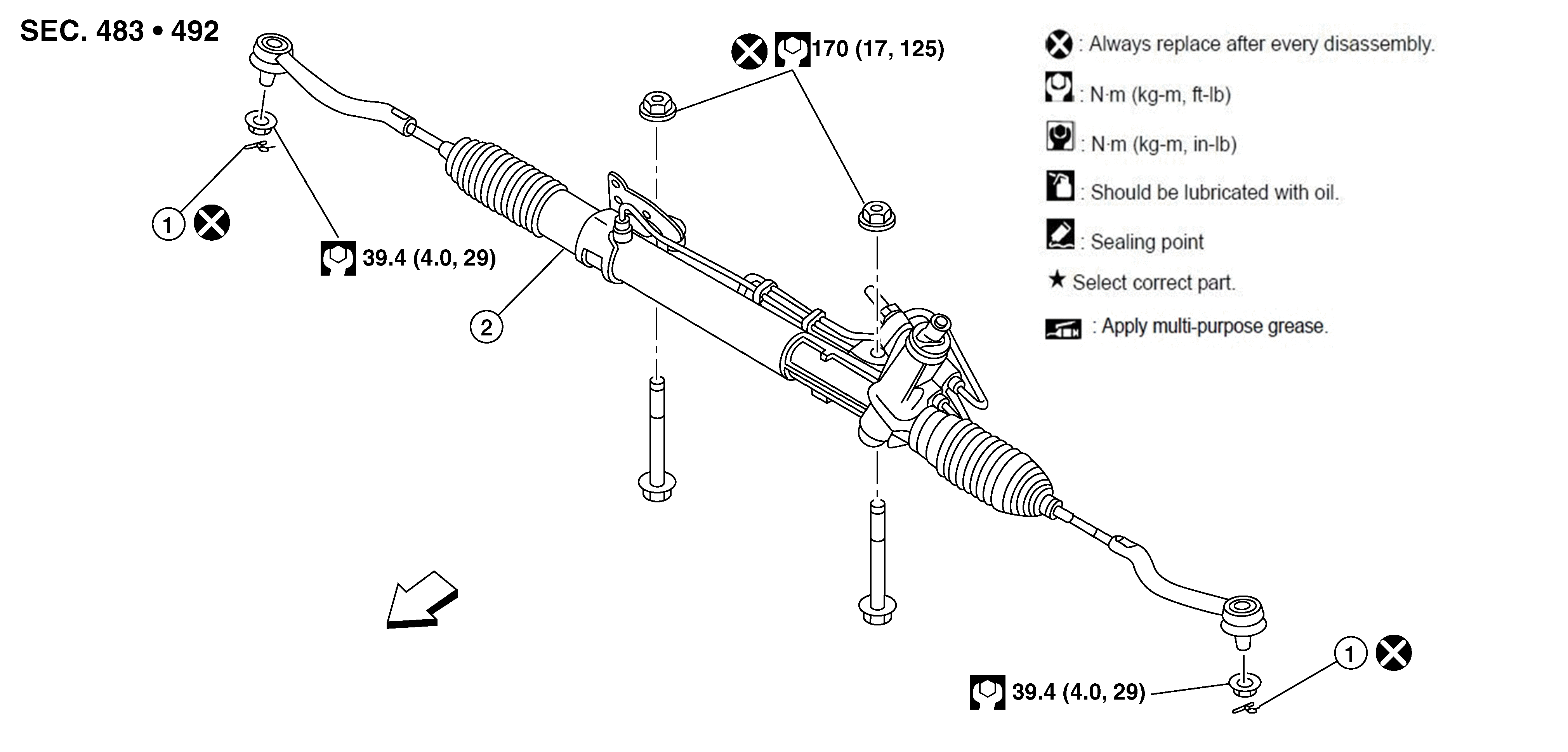

Fig 1: Steering Gear And Linkage Unit Removal And Installation With Torque Specifications
GNSAWGIA0385Z-385Courtesy of NISSAN NORTH AMERICA, INC.

1.

Cotter pin

2.

Steering gear

SYMBOL

Front
