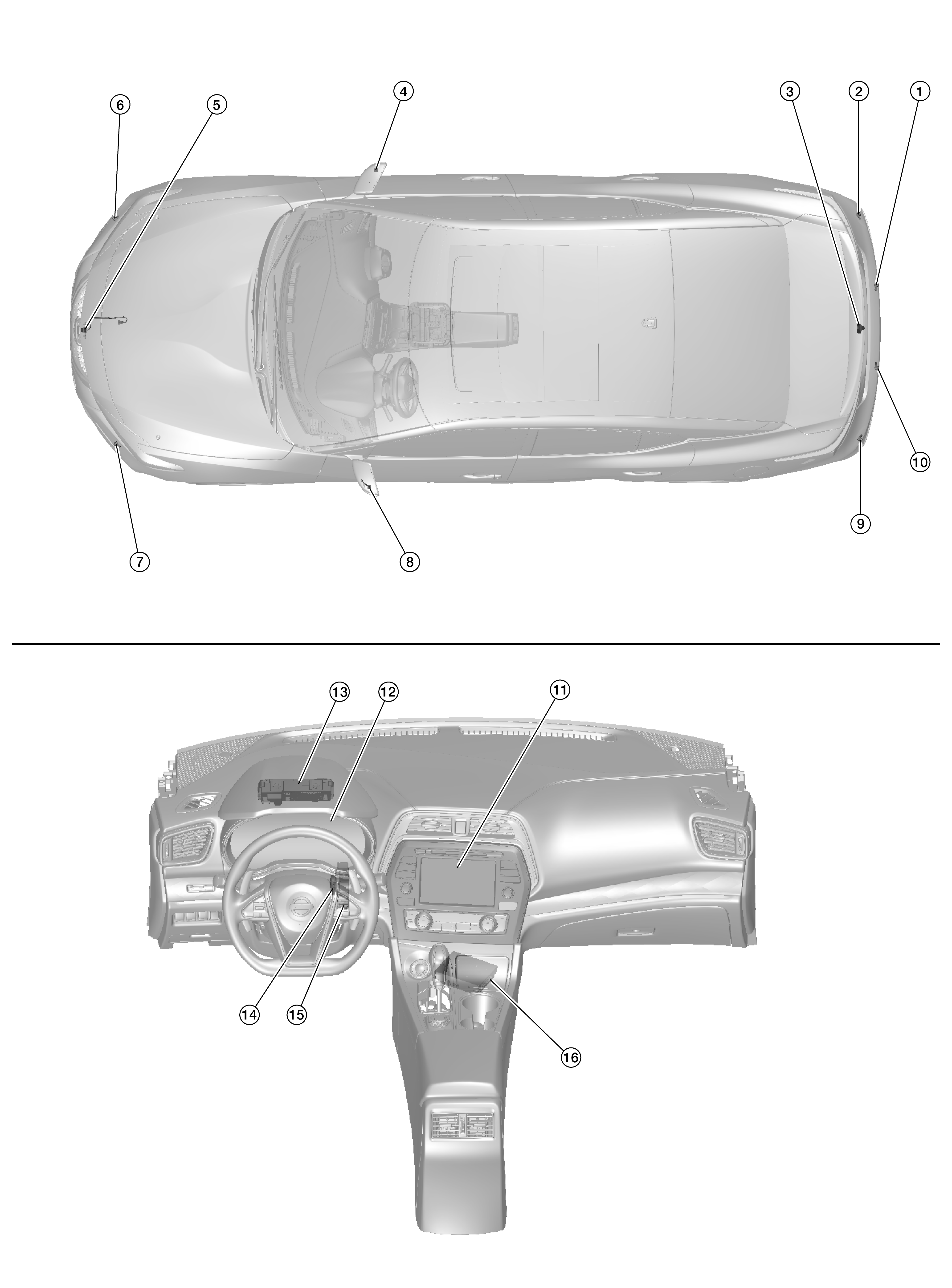

Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Rear sonar sensor RH inner	Refer to Sonar Sensor .
2.	Rear sonar sensor RH outer	Refer to Sonar Sensor .
3.	Rear view camera	Refer to Rear Camera .
4.	Door mirror RH	Refer to Side Camera .
5.	Front camera	Refer to Front Camera .
6.	Front sonar sensor RH outer	Refer to Sonar Sensor .
7.	Front sonar sensor LH outer	Refer to Sonar Sensor .
8.	Door mirror LH	Refer to Side Camera .
9.	Rear sonar sensor LH outer	Refer to Sonar Sensor .
10.	Rear sonar sensor LH inner	Refer to Sonar Sensor .
11.	AV control unit	Refer to AV Control Unit .
12.	Combination meter	Refer to Combination Meter .
13.	BCM	Refer to BCM .
14.	Sonar buzzer	Refer to Sonar Buzzer .
15.	Sonar control unit	Refer to Sonar Control Unit .
16.	Around view monitor control unit	Refer to Around View Monitor Control Unit .
