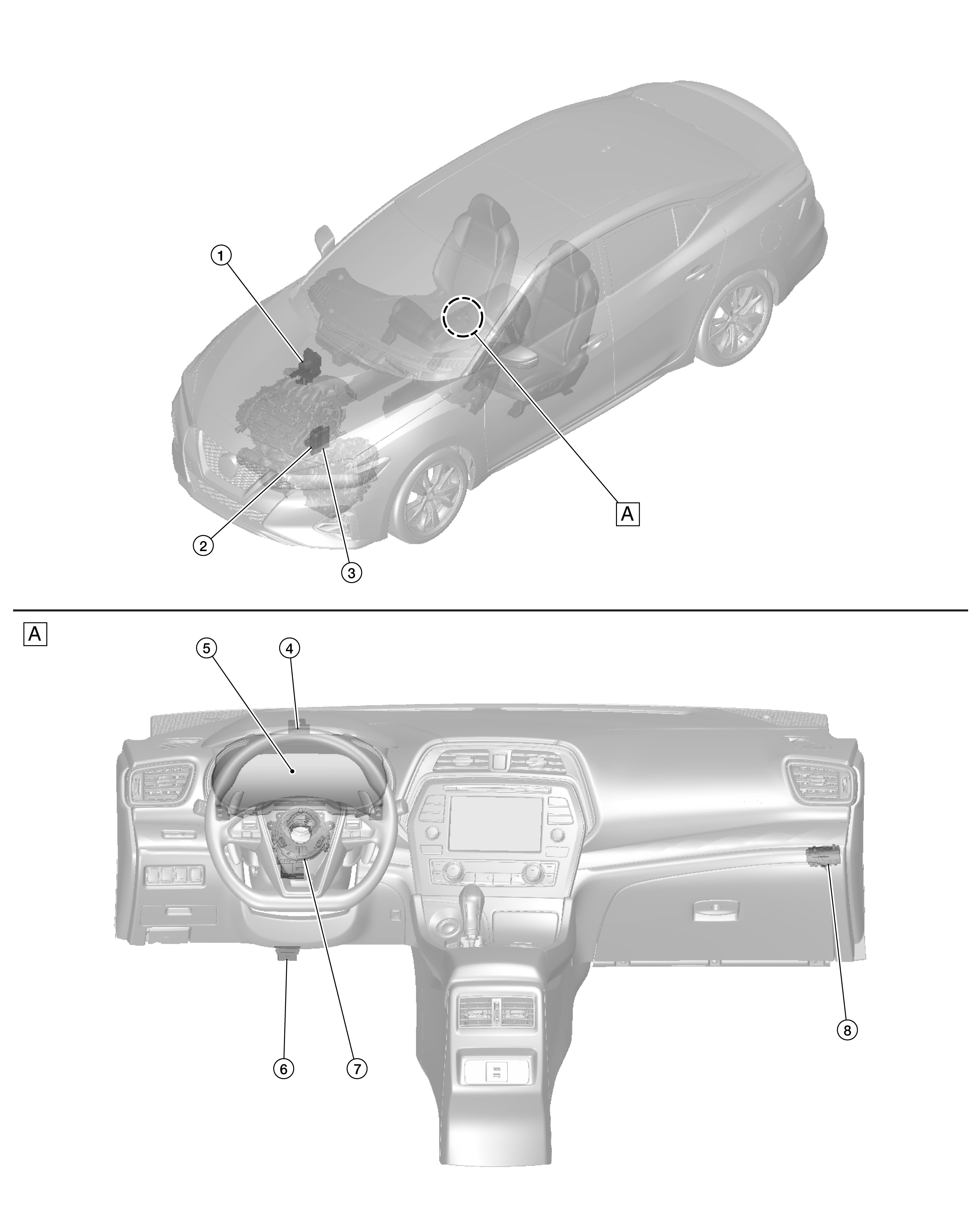

Components Location
|
A |
Instrument Panel |
|
No. |
Component parts |
Function |
|
1. |
ABS actuator and electric unit (control unit) |
Refer to Component Description (with ICC) Component Description (without ICC). |
|
2. |
TCM |
Refer to Component Description . |
|
3. |
ECM |
Refer to Component Description . |
|
4. |
Combination meter |
Refer to Component Description . |
|
5. |
Vehicle information display |
|
|
6. |
Data link connector |
Refer to System Description . |
|
7. |
Steering angle sensor |
Refer to Component Description . |
|
8. |
Chassis control module |
Refer to Component Description . |
