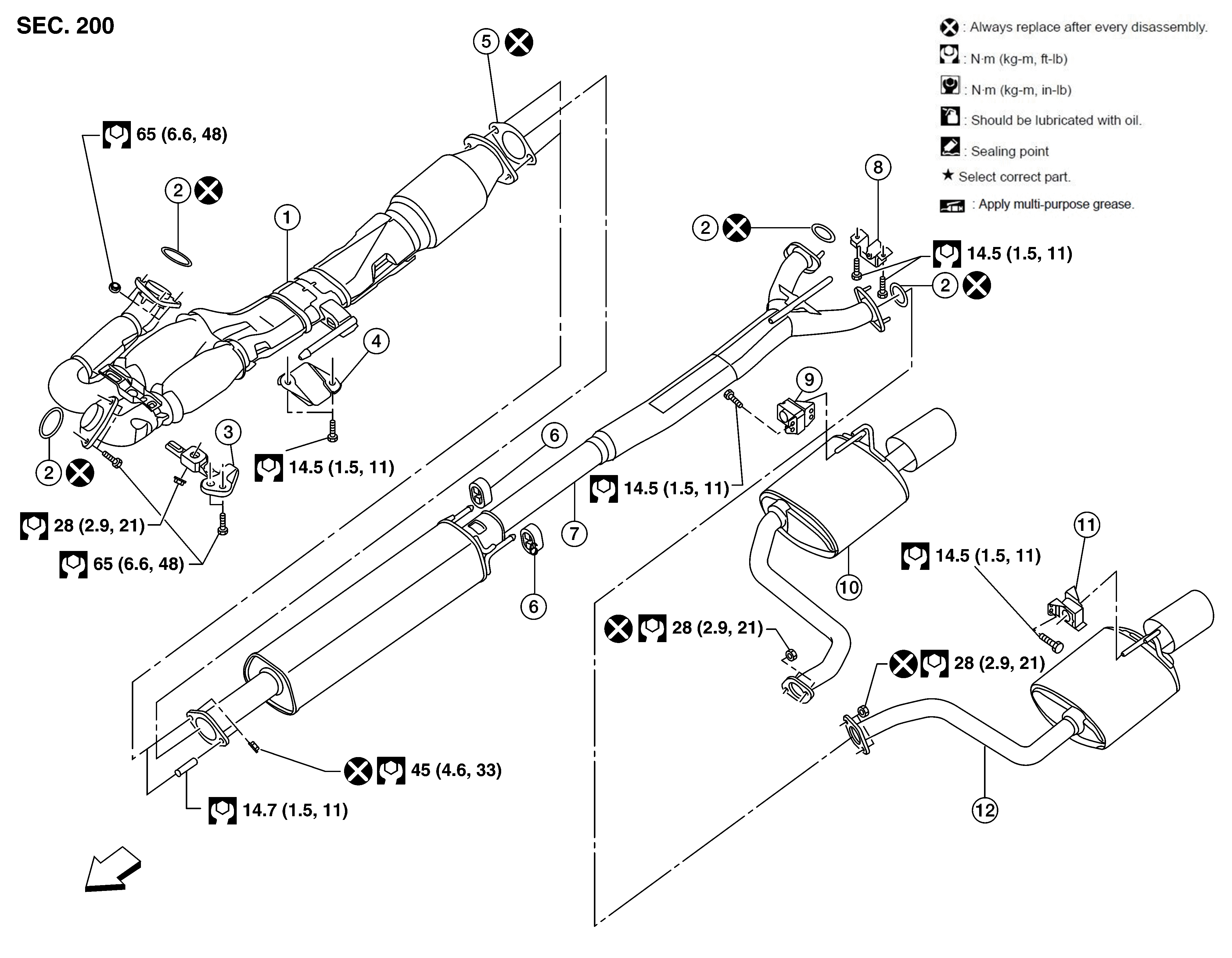

Exploded View

1.

Front Exhaust Tube

2.

Ring Gasket

3.

Front Exhaust Tube Stay

4.

Front Exhaust Tube Bracket

5.

Gasket

6.

Center Exhaust Tube Rubber Hanger

7.

Center Exhaust Tube

8.

Center Exhaust Tube Hanger

9.

Rear Muffler Bracket (RH)

10.

Rear Muffler (RH)

11.

Rear Muffler Bracket (LH)

12.

Rear Muffler (LH)

Front
