DTC Detection Logic
The heated oxygen Sensor 2 has a much longer switching time between rich and lean than the air fuel ratio (A/F) Sensor 1. The oxygen storage capacity of the three way catalyst (manifold) causes the longer switching time.

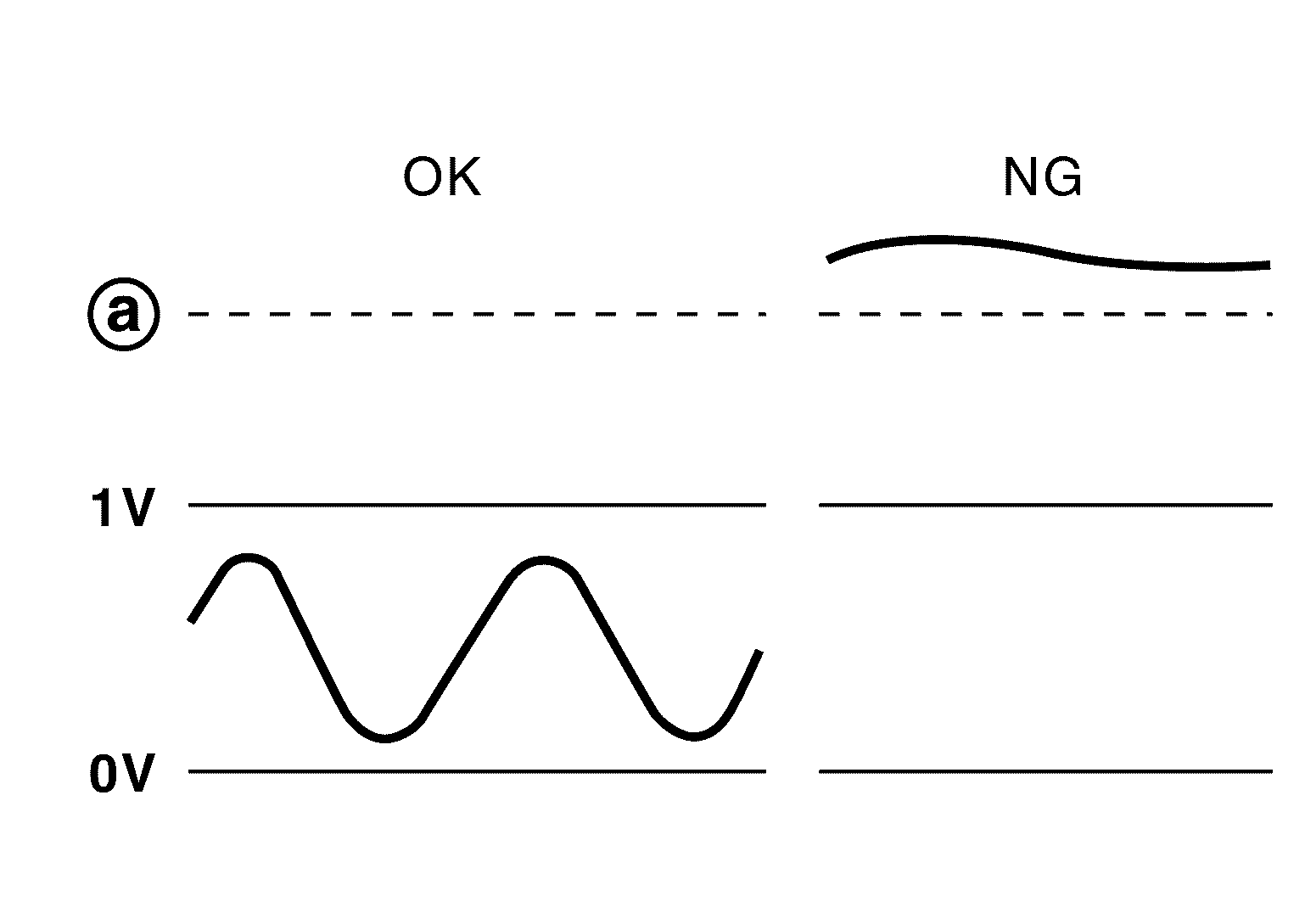

MALFUNCTION 1
To judge the malfunctions of heated oxygen Sensor 2, ECM monitors whether the voltage is unusually high during various driving conditions such as fuel cut.
|
|
: 1.3 V |
MALFUNCTION 2
To judge the malfunctions of heated oxygen Sensor 2, ECM monitors whether the minimum voltage of Sensor is sufficiently low during various driving conditions such as fuel-cut.
- An excessively high voltage from the Sensor is sent to ECM.
- The minimum voltage from the Sensor is not reached to the specified voltage.
|
DTC |
CONSULT screen terms (Trouble diagnosis content) |
DTC detection condition |
||
|
P0138 |
HO2S2 (B1) (O2 Sensor circuit high voltage bank 1 Sensor 2) |
1 |
Diagnosis condition |
-- |
|
Signal (terminal) |
Voltage signal transmitted from heated oxygen Sensor 2 to ECM |
|||
|
Threshold |
An excessively high voltage from the Sensor is sent to ECM |
|||
|
Diagnosis delay time |
-- |
|||
|
2 |
Diagnosis condition |
-- |
||
|
Signal (terminal) |
Voltage signal transmitted from heated oxygen Sensor 2 to ECM |
|||
|
Threshold |
The minimum voltage from the Sensor is not reached to the specified voltage |
|||
|
Diagnosis delay time |
-- |
|||
|
P0158 |
HO2S2 (B2) (O2 Sensor circuit high voltage bank 2 Sensor 2) |
1 |
Diagnosis condition |
-- |
|
Signal (terminal) |
Voltage signal transmitted from heated oxygen Sensor 2 to ECM |
|||
|
Threshold |
An excessively high voltage from the Sensor is sent to ECM |
|||
|
Diagnosis delay time |
-- |
|||
|
2 |
Diagnosis condition |
-- |
||
|
Signal (terminal) |
Voltage signal transmitted from heated oxygen Sensor 2 to ECM |
|||
|
Threshold |
The minimum voltage from the Sensor is not reached to the specified voltage |
|||
|
Diagnosis delay time |
-- |
|||
