Tilt Mechanism Operating Range

Unit: mm (in)

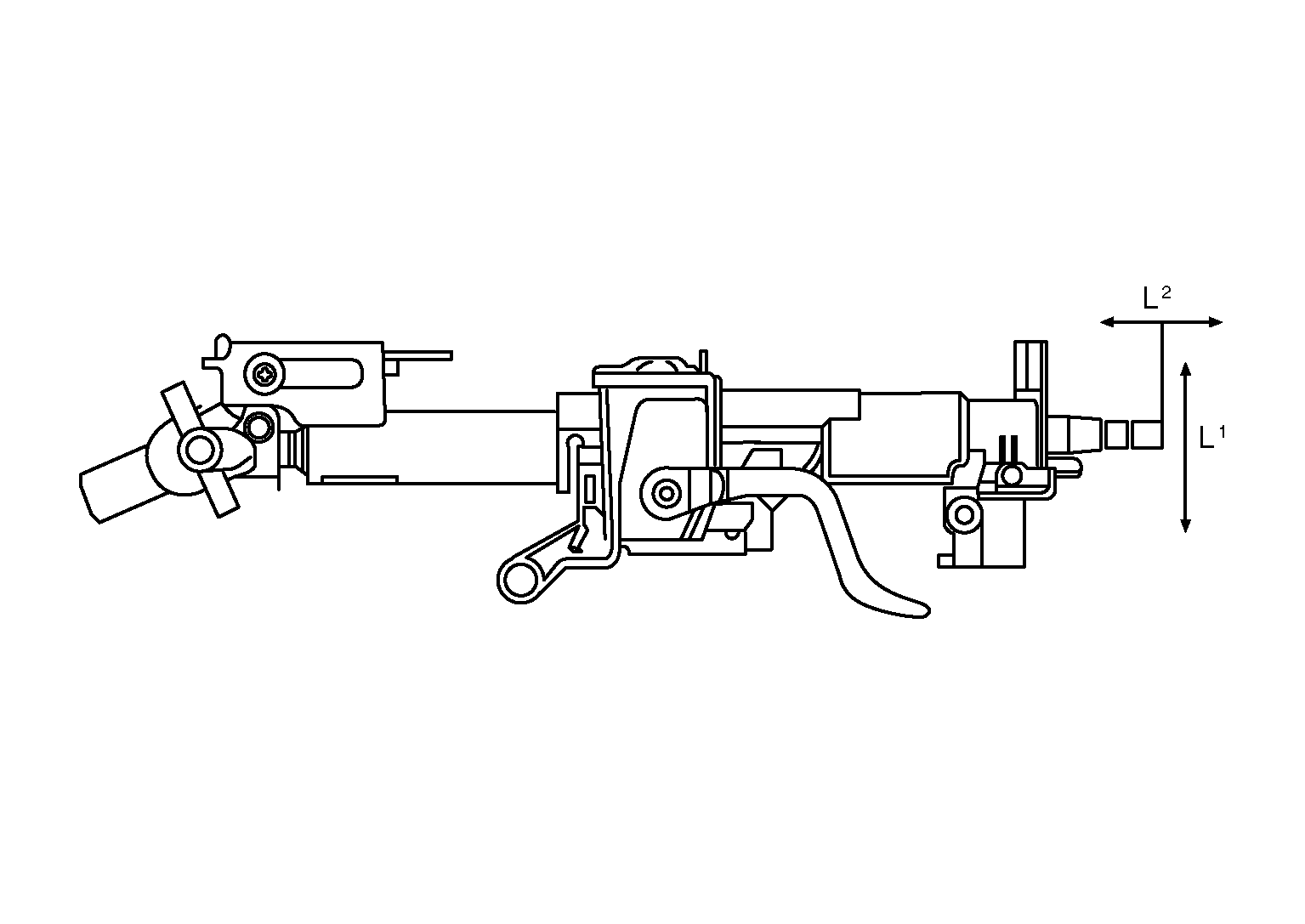

GNSALGIA0233Z-233Courtesy of NISSAN NORTH AMERICA, INC.

Tilt operating range (L 1 )

50 (1.97)

Telescopic operating range (L 2 )

60 (2.36)
