Electronic Controlled Engine Mount Line Drawing
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|

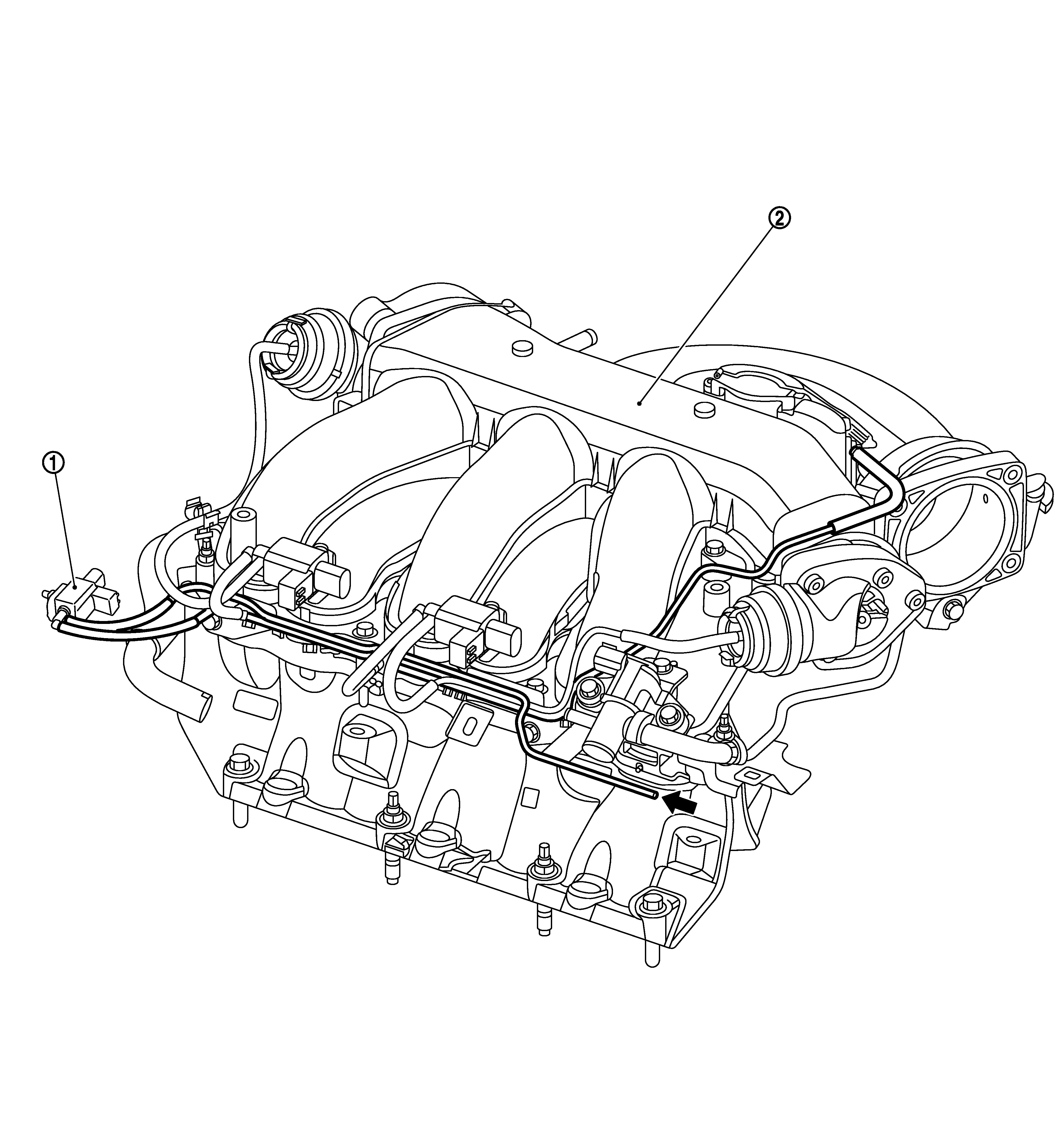

Electronic controlled engine mount control solenoid valve
|
|
Intake manifold collector
|
|
|
: From next figure
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
|

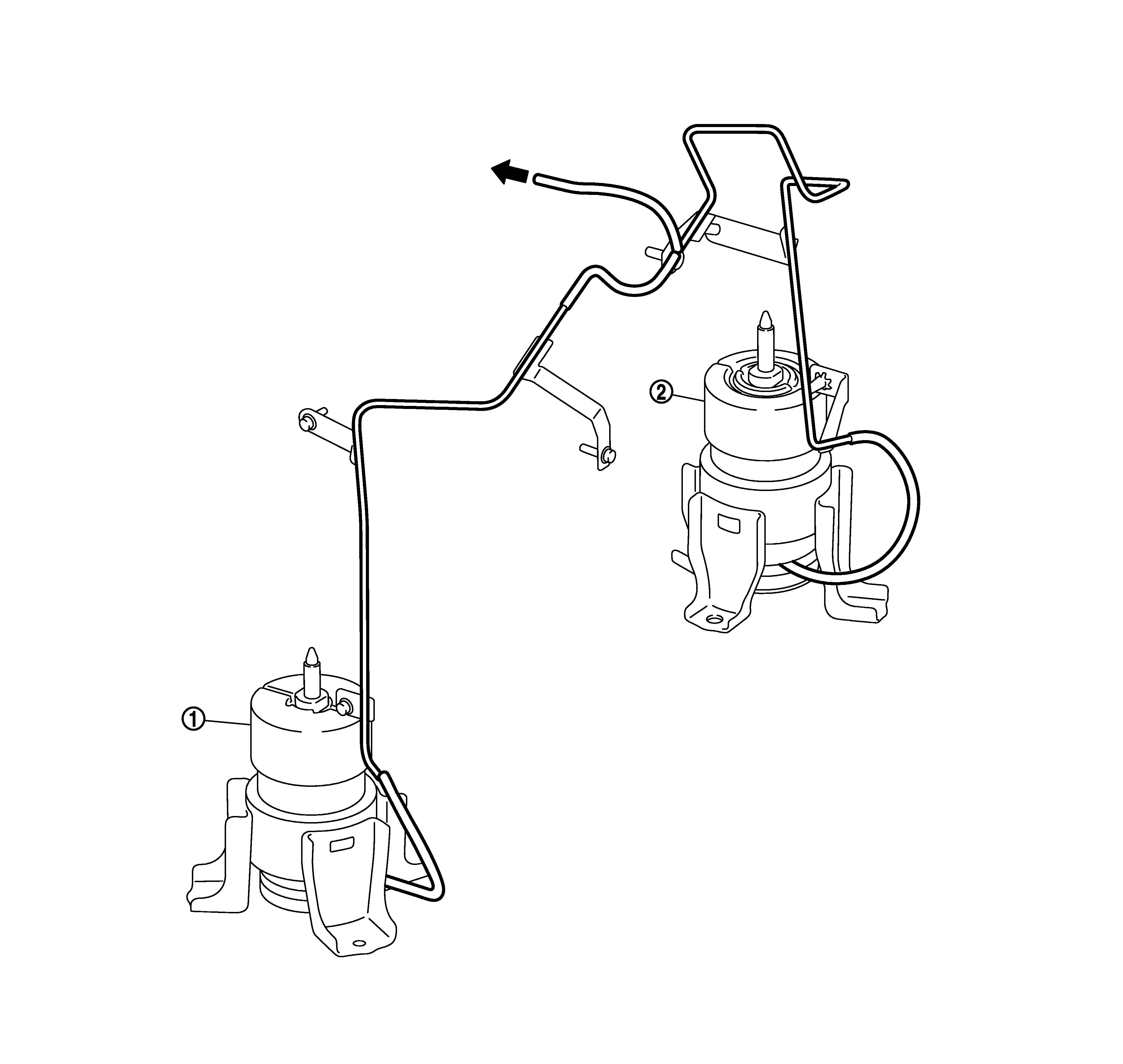

Front electronic controlled engine mount
|
|
Rear electronic controlled engine mount
|
|
|
: To previous figure
|
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose.
