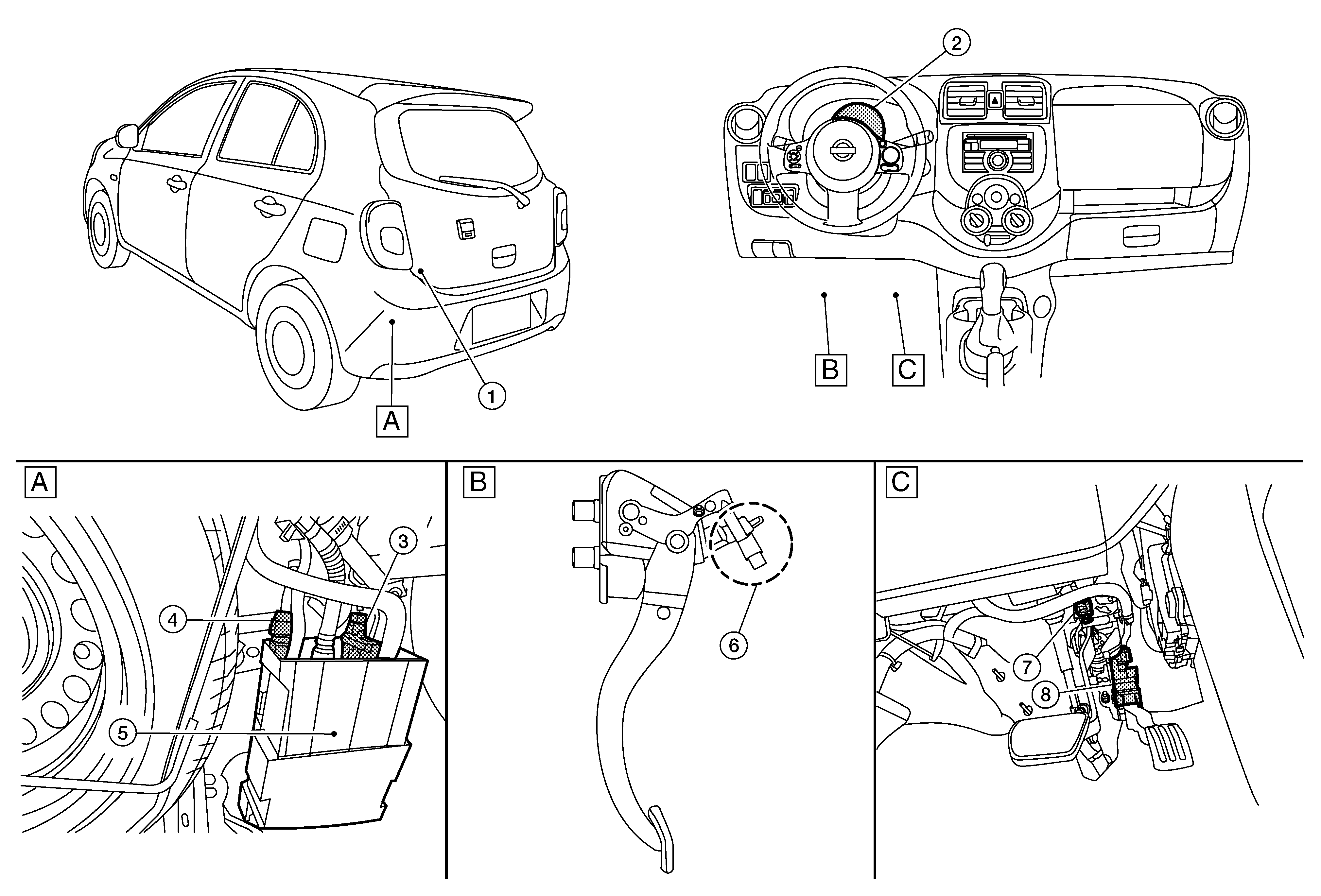

Body Compartment
|
|
Left rear under carriage area |
|
Around clutch pedal (with M/T models) |
|
Around accelerator pedal and brake pedal |
|
No. |
Component |
Function |
|
|
Fuel level sensor unit and fuel pump |
Refer to Exploded View for detailed installation location. |
|
|
Combination meter [Malfunction indicator lamp (MIL)] |
|
|
|
EVAP canister vent control valve |
|
|
|
EVAP control system pressure sensor |
|
|
|
EVAP canister |
|
|
|
Clutch pedal positon switch |
When the clutch pedal is depressed, the clutch pedal position switch turns OFF and the clutch pedal position switch signal is sent to the ECM. The ECM judges the clutch pedal conditions via the signal (ON or OFF). |
|
|
Stop lamp switch |
|
|
|
Accelerator pedal position sensor |
