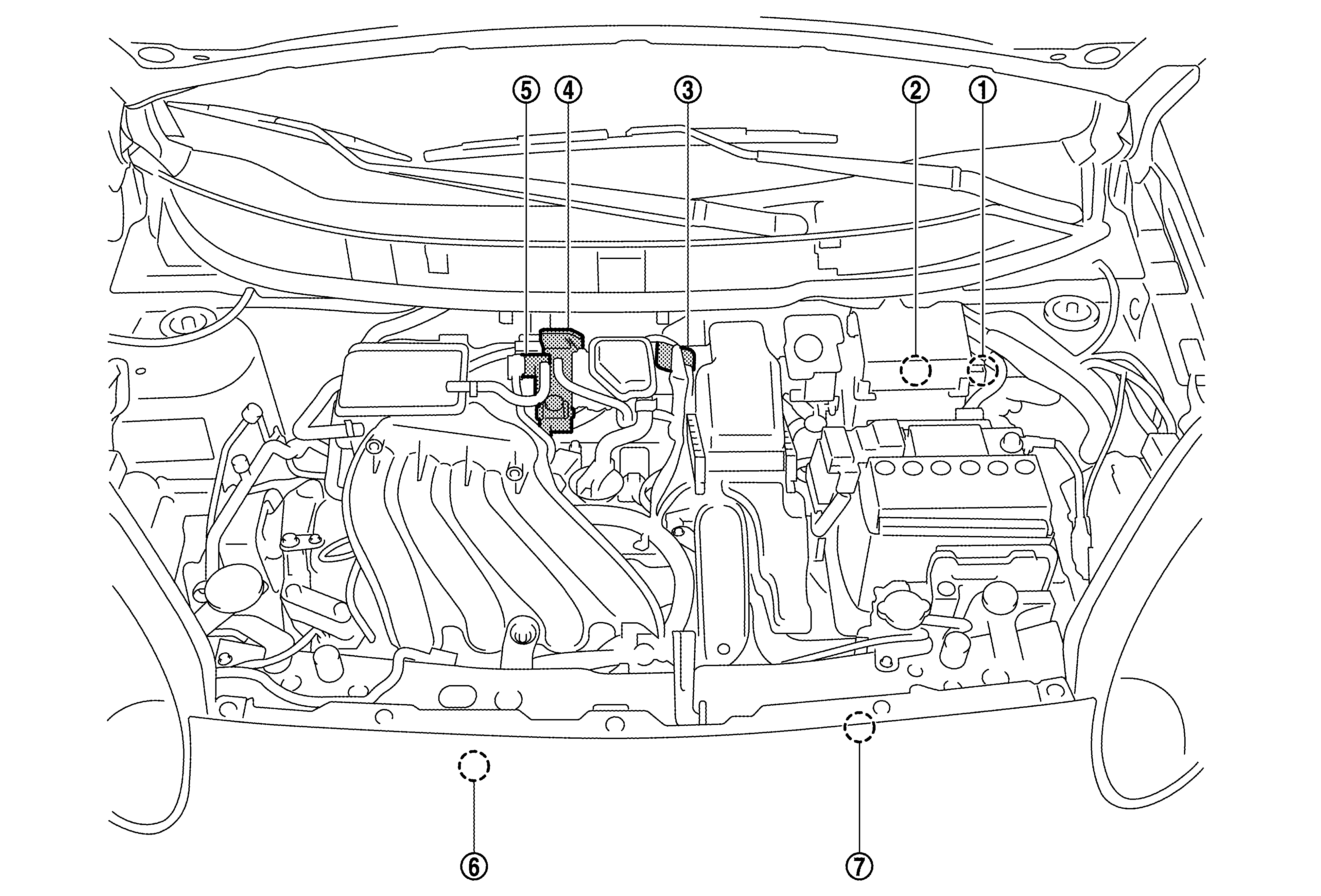

Engine Room Compartment
|
No. |
Component |
Function |
|
1. |
ECM |
|
|
2. |
IPDM E/R |
IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication. Refer to Component Parts Location for detailed installation location. |
|
3. |
Mass air flow sensor |
|
|
4. |
Electric throttle control actuator |
|
|
5. |
EVAP canister purge volume control solenoid valve |
|
|
6. |
Refrigerant pressure sensor |
Refer to Component Parts Location for detailed installation location. |
|
7. |
Cooling fan motor |
