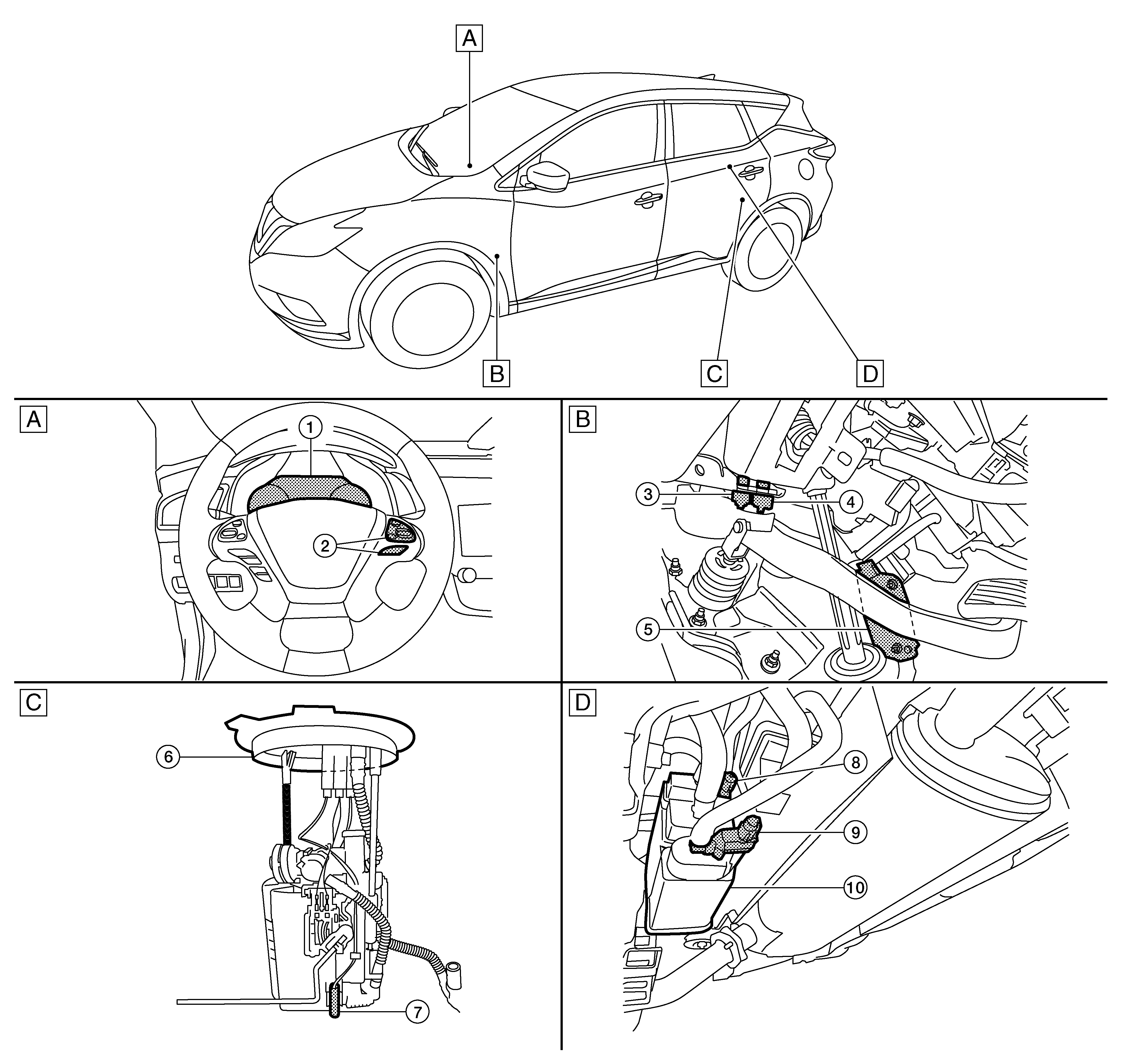

Component Parts Location: Body
|
|
Instrument panel periphery (driver side) |
|
Pedal periphery |
|
Inside fuel tank periphery |
|
|
Behind fuel tank periphery |
||||
|
|
: Vehicle front |
|
No. |
Component |
Function |
|
|
|
Combination meter |
Malfunction indicator lamp (MIL) |
|
|
Information display |
The operation mode of the ASCD is indicated on the information display in the combination meter. ECM transmits the status signal to the combination meter via CAN communication according to ASCD operation. |
||
|
|
ASCD steering switch |
||
|
|
Stop lamp switch |
||
|
|
Brake pedal position switch |
||
|
|
Accelerator pedal position sensor |
||
|
|
Fuel level sensor unit and fuel pump (with fuel tank temperature sensor) |
Fuel Level Sensor Unit and Fuel Pump (With Fuel Tank Temperature Sensor) Refer to Exploded View for detailed installation location. |
|
|
|
Fuel tank temperature sensor |
||
|
|
EVAP control system pressure sensor |
||
|
|
EVAP canister vent control valve |
||
|
|
EVAP canister |
||
