Switches And Indicators

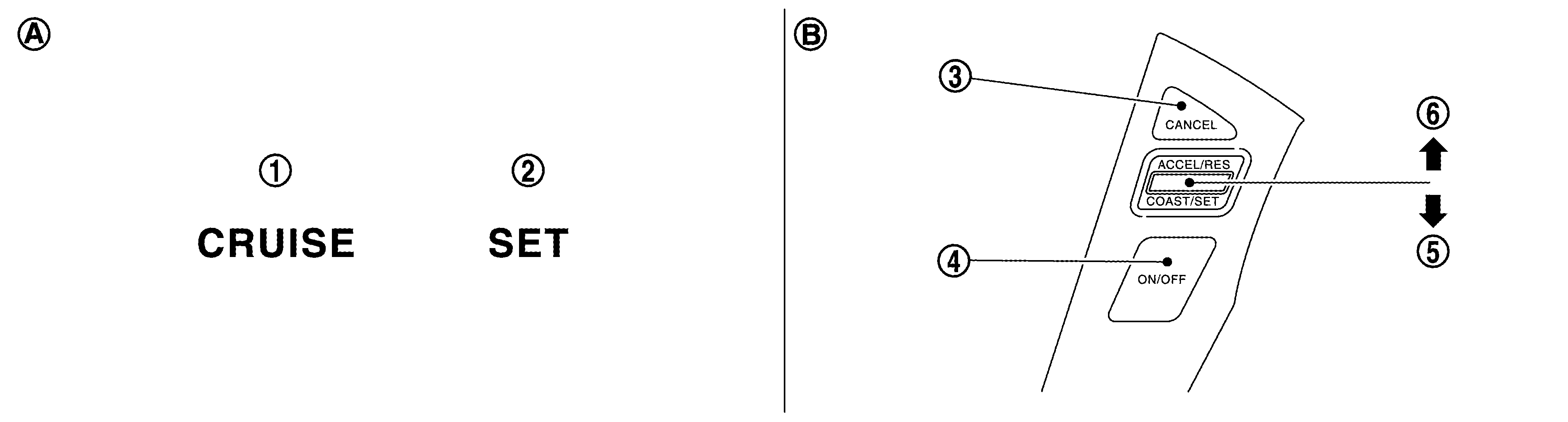

GNSJPBIA5371Z-371Courtesy of NISSAN NORTH AMERICA, INC.

1.

CRUISE indicator

2.

SET indicator

3.

CANCEL switch

4.

ASCD MAIN switch

5.

COAST/SET switch

6.

ACCEL/RES switch

(ACCELERATE/RESUME)

A.

On the combination meter

B.

On the steering wheel
