Engine Assembly Component
|
|

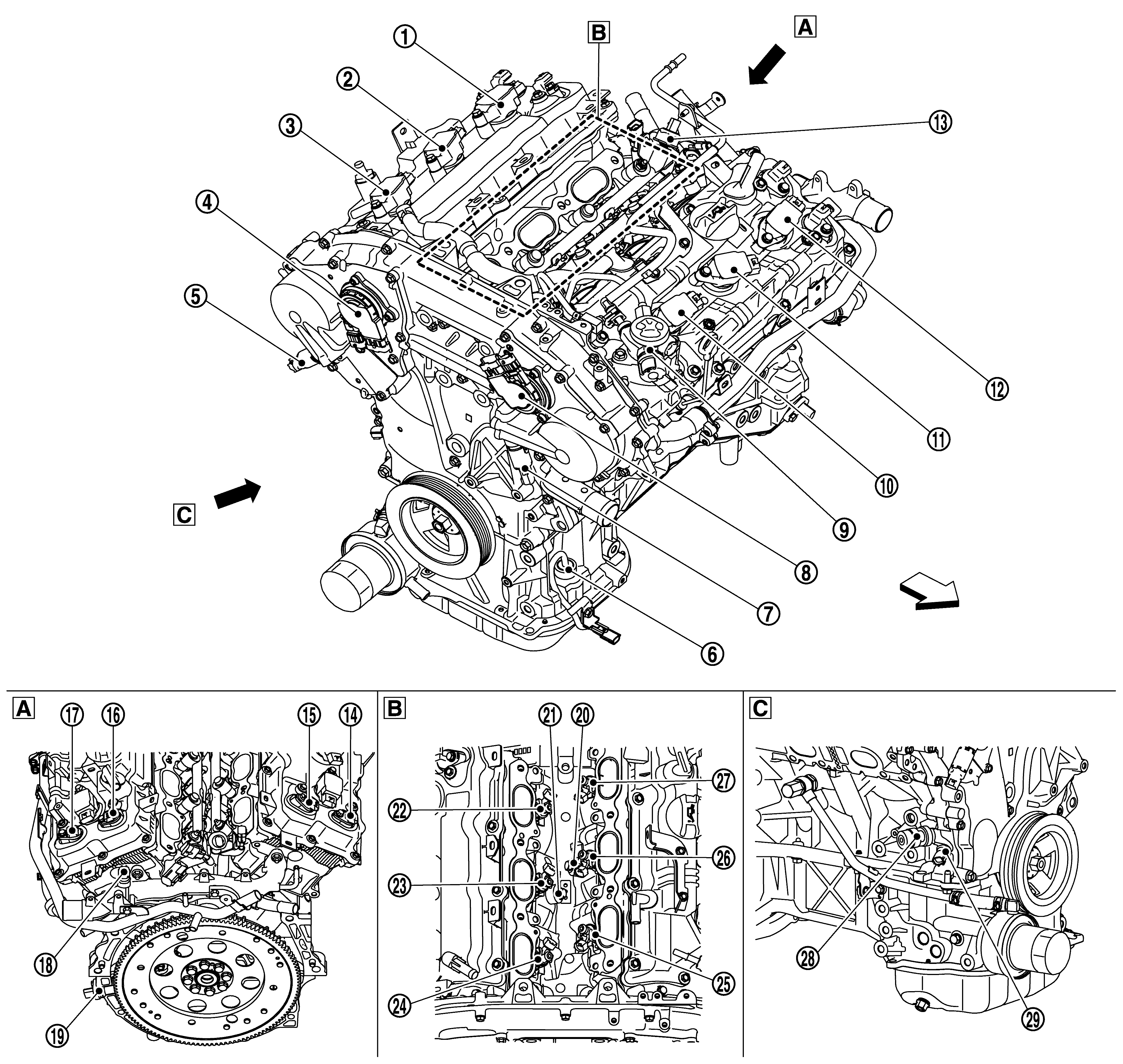

Rear view of the engine |
|
Top view of the engine |
|
Side view of the engine |
|
|
Vehicle front |
|
No. |
Component |
Function |
|
|
Ignition coil (with power transistor) and spark plug (No. 5 cylinder) |
|
|
|
Ignition coil (with power transistor) and spark plug (No. 3 cylinder) |
|
|
|
Ignition coil (with power transistor) and spark plug (No. 1 cylinder) |
|
|
|
Electric intake valve timing control actuator (bank 1) |
|
|
|
Exhaust valve timing control solenoid valve (bank 1) |
|
|
|
Engine oil pressure control solenoid valve |
|
|
|
Exhaust valve timing control solenoid valve (bank 2) |
|
|
|
Electric intake valve timing control actuator (bank 2) |
|
|
|
High pressure fuel pump |
|
|
|
Ignition coil (with power transistor) and spark plug (No. 2 cylinder) |
|
|
|
Ignition coil (with power transistor) and spark plug (No. 4 cylinder) |
|
|
|
Ignition coil (with power transistor) and spark plug (No. 6 cylinder) |
|
|
|
Fuel rail pressure sensor |
|
|
|
Exhaust camshaft position sensor (bank 1) |
|
|
|
Intake camshaft position sensor (bank 1) |
|
|
|
Intake camshaft position sensor (bank 2) |
|
|
|
Exhaust camshaft position sensor (bank 2) |
|
|
|
Engine coolant temperature sensor |
|
|
|
Crankshaft position sensor |
|
|
|
Knock sensor (bank 2) |
|
|
|
Knock sensor (bank 1) |
|
|
|
Fuel injector (No. 5 cylinder) |
|
|
|
Fuel injector (No. 3 cylinder) |
|
|
|
Fuel injector (No. 1 cylinder) |
|
|
|
Fuel injector (No. 2 cylinder) |
|
|
|
Fuel injector (No. 4 cylinder) |
|
|
|
Fuel injector (No. 6 cylinder) |
|
|
|
Engine oil pressure sensor |
|
|
|
Engine oil temperature sensor |
