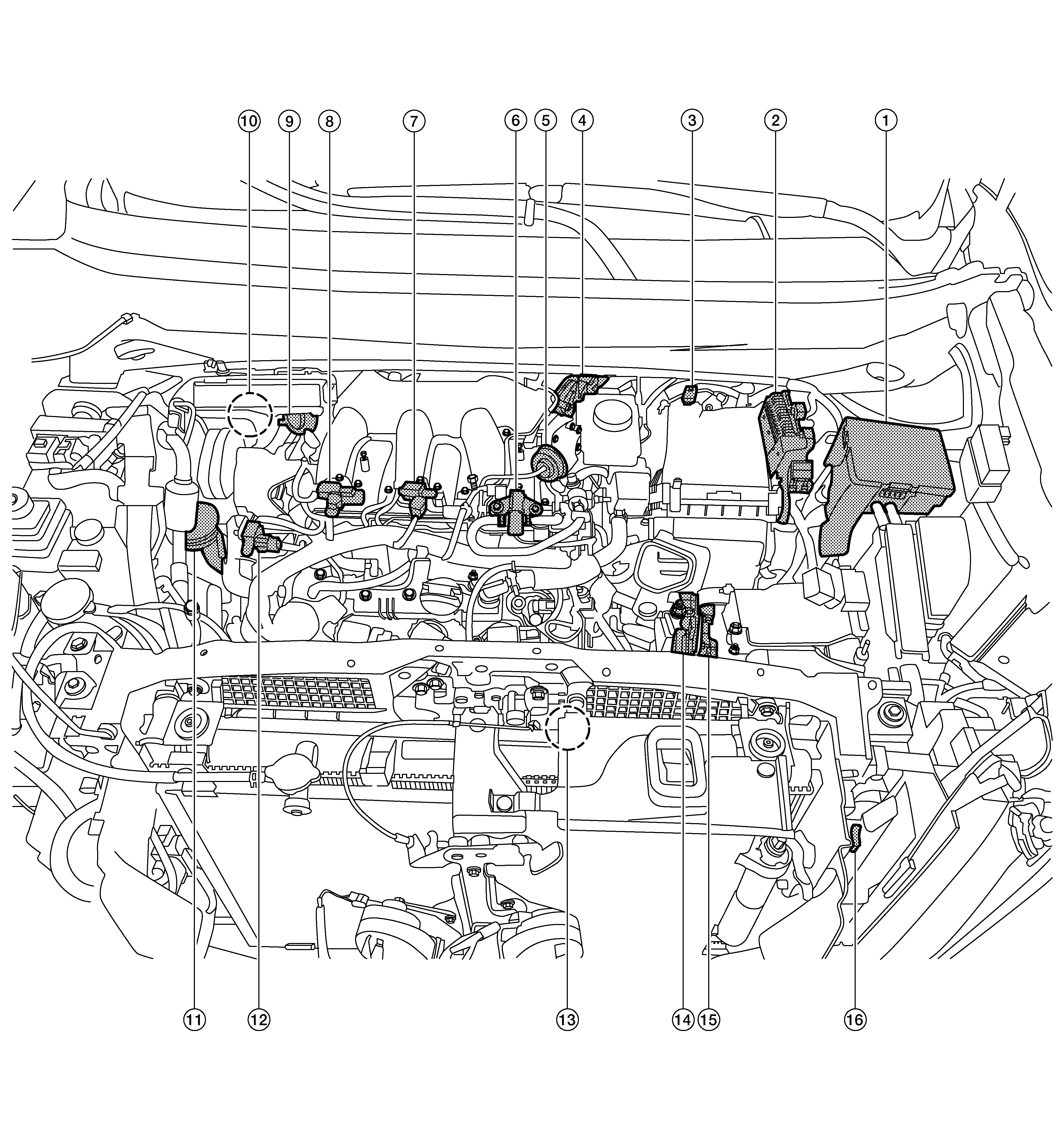

Engine Room Component
|
No. |
Component |
Function |
|
|
IPDM E/R |
IPDM E/R controls the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. |
|
|
ECM (with barometric pressure sensor) |
|
|
|
Mass air flow sensor (with intake air temperature sensor) (bank 1) |
|
|
|
Electric throttle control actuator |
|
|
|
Power valve actuator 2 |
|
|
|
EVAP canister purge volume control solenoid valve |
|
|
|
VIAS control solenoid valve 2 |
|
|
|
VIAS control solenoid valve 1 |
|
|
|
Power valve actuator 1 |
|
|
|
ABS actuator and electric unit (control unit) |
Mainly transmits the following signal to ECM via CAN communication.
|
|
|
Rear electronic controlled engine mount |
|
|
|
Electronic controlled engine mount control solenoid valve |
|
|
|
Front electronic controlled engine mount |
|
|
|
TCM |
Mainly transmits the following signal to ECM via CAN communication.
|
|
|
Electric intake valve timing control module |
|
|
|
Refrigerant pressure sensor |
