Exploded View

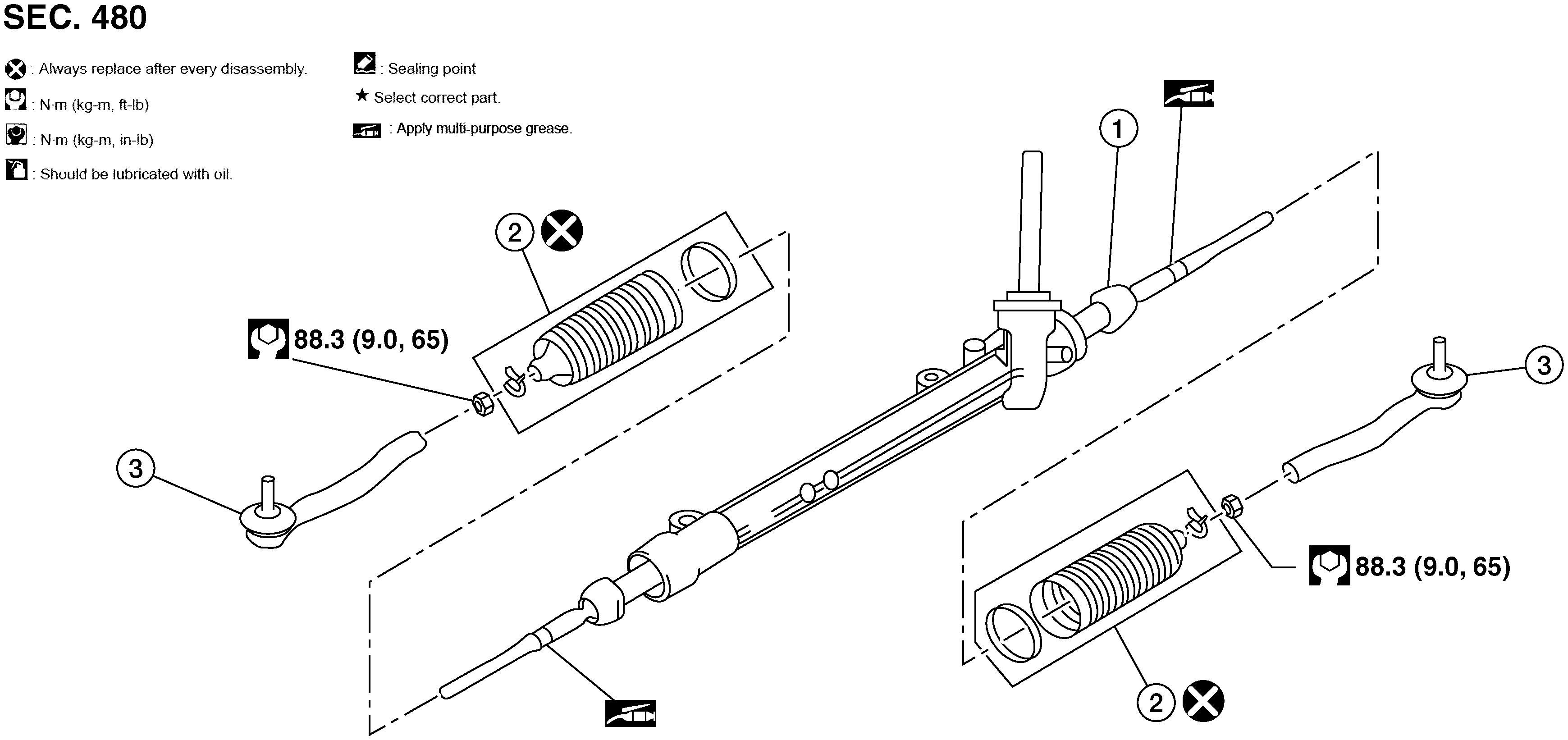

Fig 1: Steering Gear And Linkage Unit Disassembly And Assembly With Torque Specifications
GNSAWGIA0487Z-487Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear

2.

Boot

3.

Outer socket
