Exploded View: MR16DDT

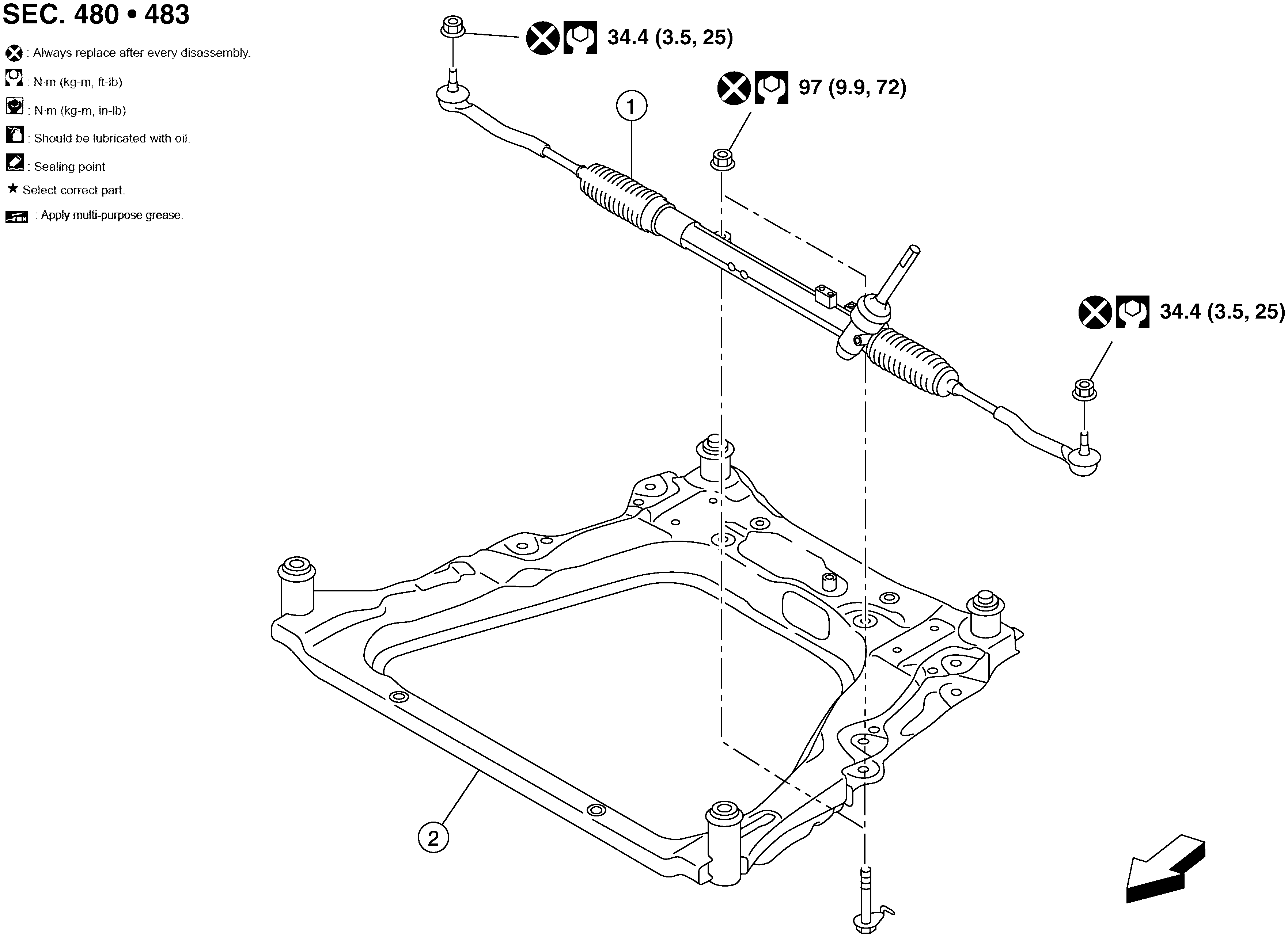

Fig 1: Steering Gear and Linkage Assembly Unit Removal And Installation Replacement Components With Torque Specifications (MR16DDT)
GNSAWGIA0491Z-491Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear assembly

2.

Front suspension member

SYMBOL

Front
