Exploded View: MRA8DE

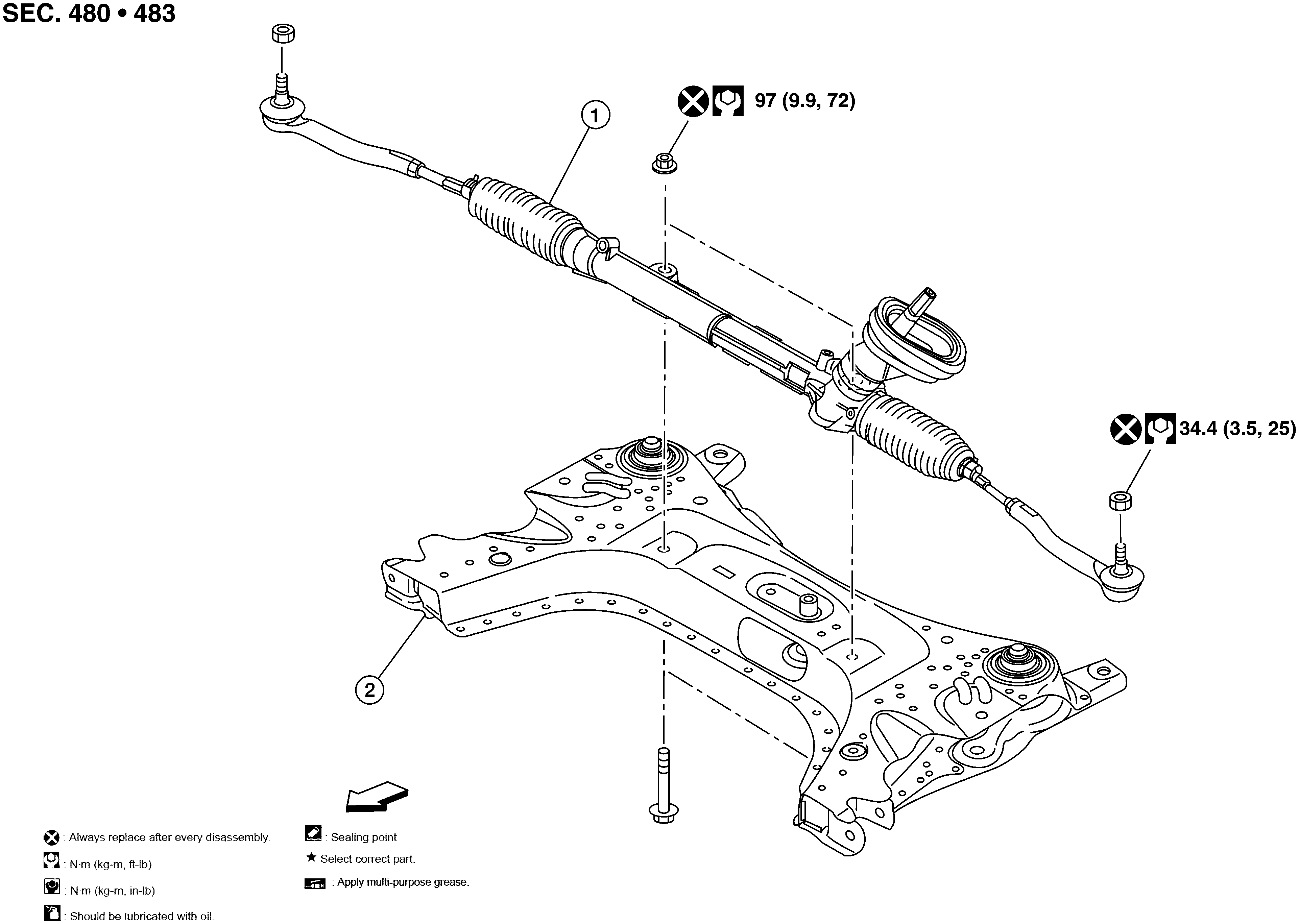

Fig 1: Steering Gear and Linkage Assembly Unit Removal And Installation Replacement Components With Torque Specifications (MRA8DE)
GNSAWGIA0254Z-254Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear assembly

2.

Front suspension member

SYMBOL

Front
