CVT Fluid Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

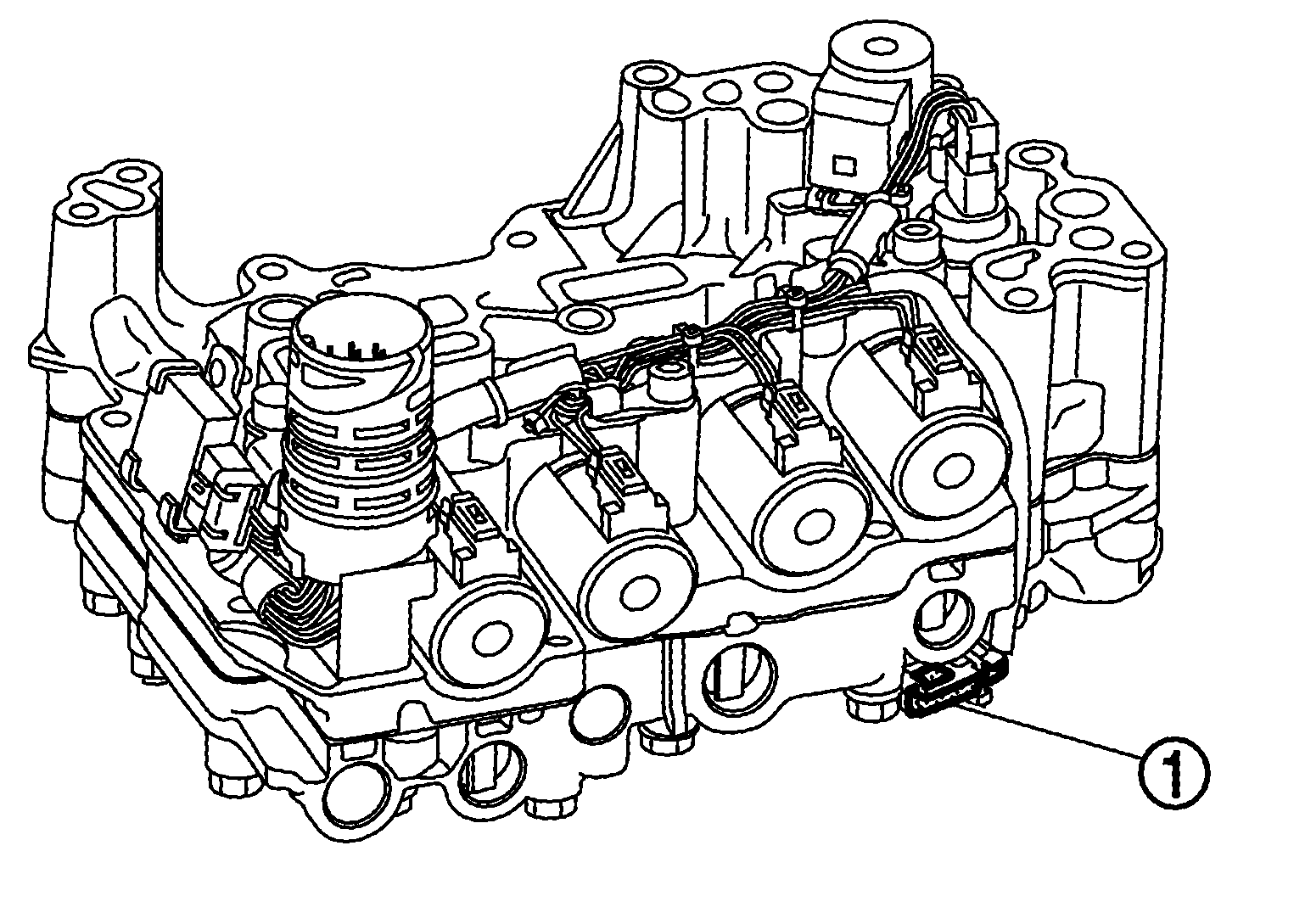

The CVT fluid temperature sensor is installed to control valve.

Courtesy of NISSAN NORTH AMERICA, INC.
The CVT fluid temperature sensor detects CVT fluid temperature in oil pan.
The fluid temperature sensor uses a thermistor, and changes the signal voltage by converting changes in the CVT fluid temperature to a resistance value. TCM evaluates the CVT fluid temperature from the signal voltage value.

Courtesy of NISSAN NORTH AMERICA, INC.
