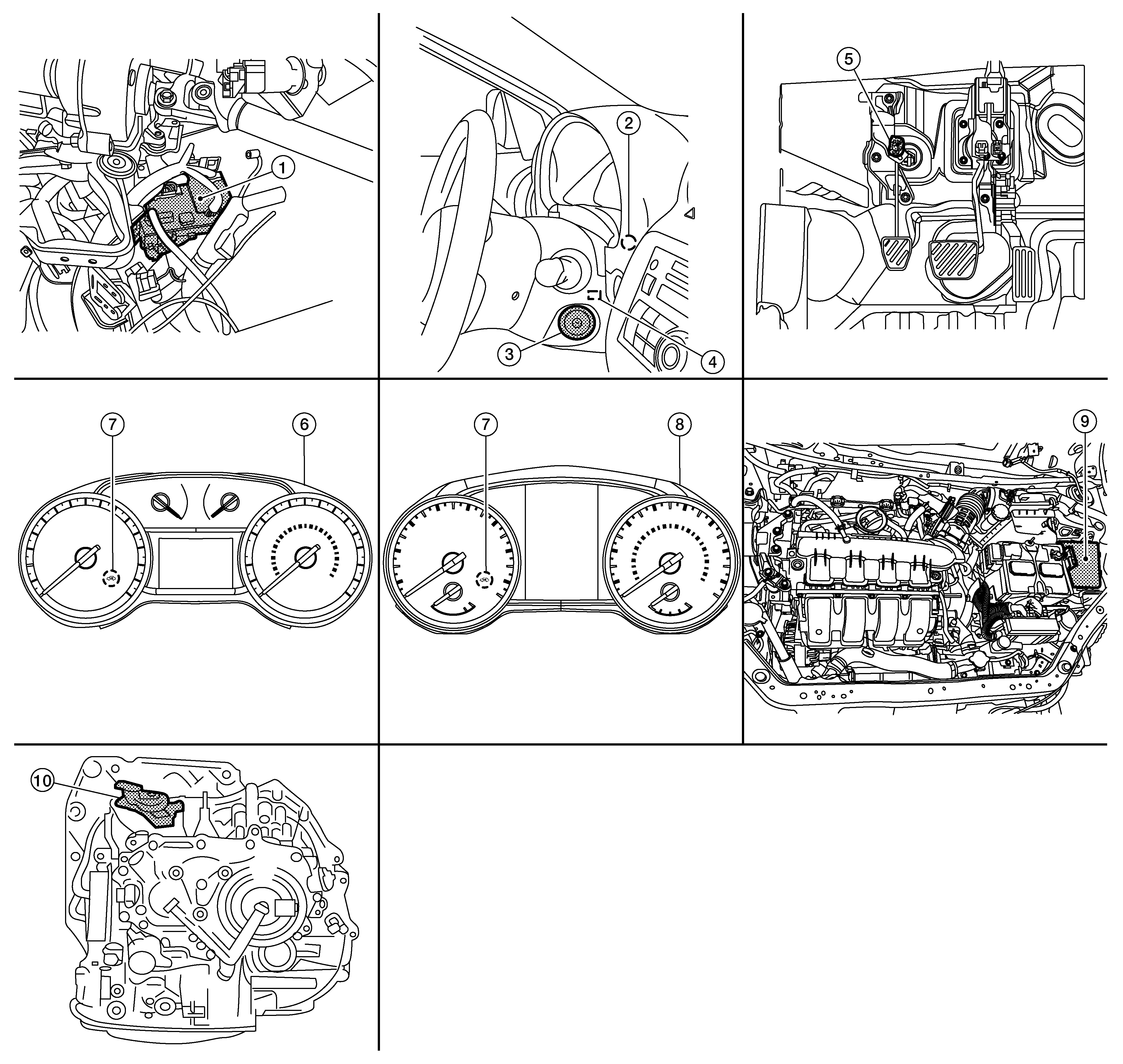

Component Parts Location

1.

BCM

(view with instrument panel removed)

2.

Dongle unit (Canada only)

(behind instrument panel LH)

3.

Ignition switch

4.

NATS antenna amp.

(inside steering column)

5.

Clutch interlock switch

(M/T models)

6.

Combination meter

(Type A)

7.

Security indicator lamp

8.

Combination meter

(Type B)

9.

IPDM E/R

10.

Transmission range switch

(CVT models)
